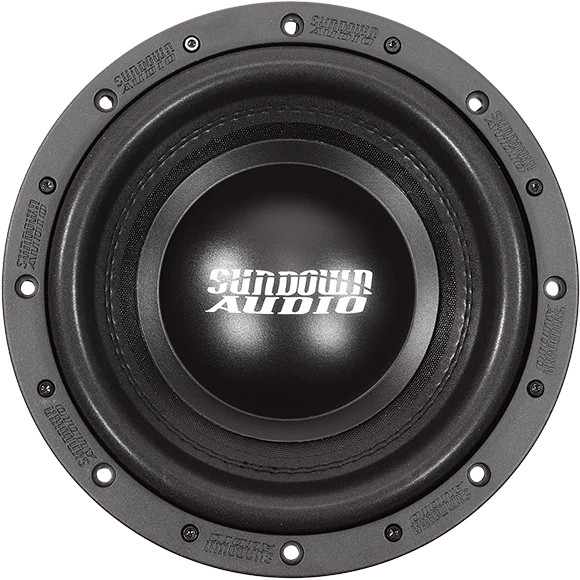

About: Sundown Audio SA-12 v.2 SA-Series 12" 1000W RMS Car Subwoofer

This SA-10/12/15 v.2 series is a top-down upgrade from the original SA series. The 2.75” coil punches way above its weight, outperforming many 3” coils without the adding weight & with the added advantage of a wider spider. We are able to perfectly balance the mass, motor force, and suspension stiffness for the intended power level.

The motor also features a large magnet shorting ring (faraday ring) to reduce distortion and deliver smoother response across the entire acoustic spectrum. The motor & coil setup is mated to an extremely robust multi-layer spider with fully tied-on & doubled-up “XL” tinsel leads. A competition-grade paper cone, strong foam surround, and cast aluminum frame are used to complete this masterpiece. On top of the ~19mm of one-way linear excursion we have an x-mech limit of 37mm one-way before coil bottom making it nearly "bottomless."

Specifications:

• 1000 Watts RMS / 2500 Watts Peak
• Dual 2 or 4 ohm voice coils
• Vented magnetic gap & pole piece
• Aluminum 2.75” voice coil former for superior heat dissipation
• Innovative high velocity, cast aluminum vented frame spacer ring
• Magnet ID faraday ring for smooth acoustic response
• High-temperature copper voice coil wire

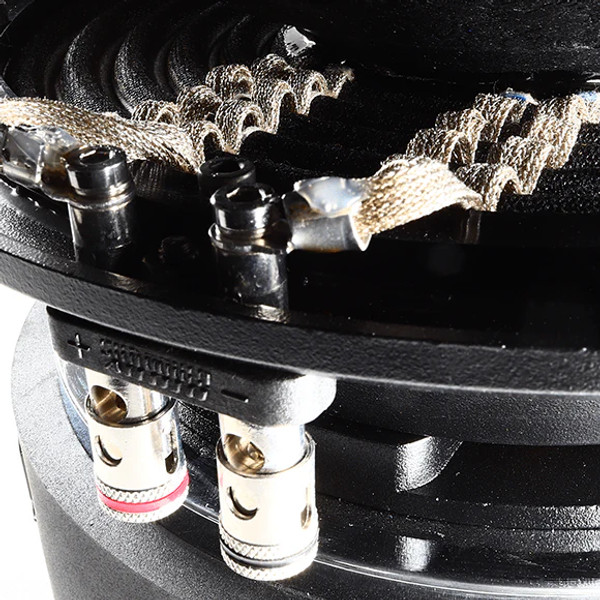

• Spring-loaded terminals
• Stitched-on double “XL” tinsel leads

Enclosure Specifications:

• Sealed Enclosure: 1.0 cu ft
• Ported Enclosure: 1.75 cu ft
• Recommended Tuning: 35Hz
• Recommended Port Area: 26 sq in
• Depth: 7.35"
• Outside Diameter: 12.83″
• Cut-Out: 11.01″
