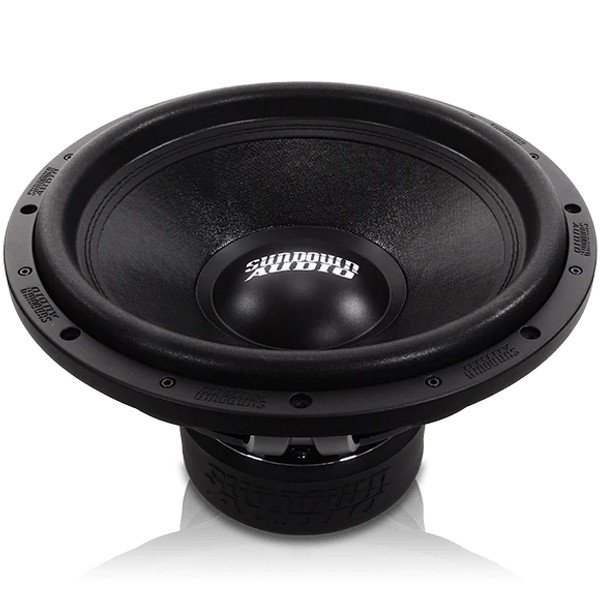

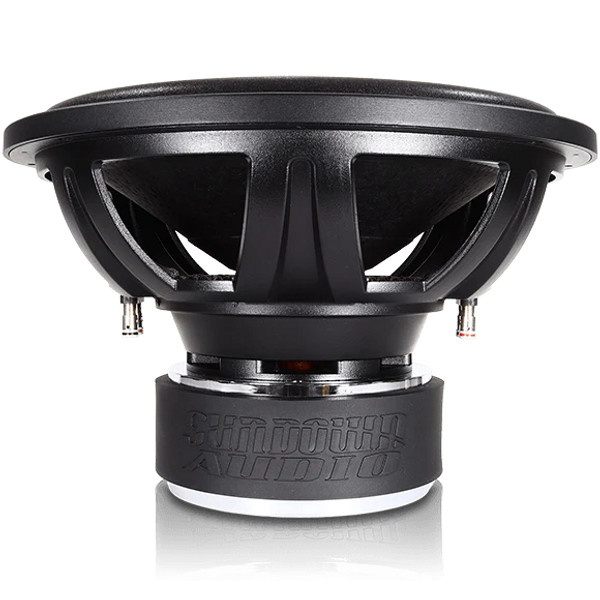

About: Sundown Audio SA-15 v.2 SA-Series 15" 1000W RMS Car Subwoofer
This SA-10/12/15 v.2 series is a top-down upgrade from the original SA series. The 2.75” coil punches way above its weight, outperforming many 3” coils without the adding weight & with the added advantage of a wider spider. We are able to perfectly balance the mass, motor force, and suspension stiffness for the intended power level.

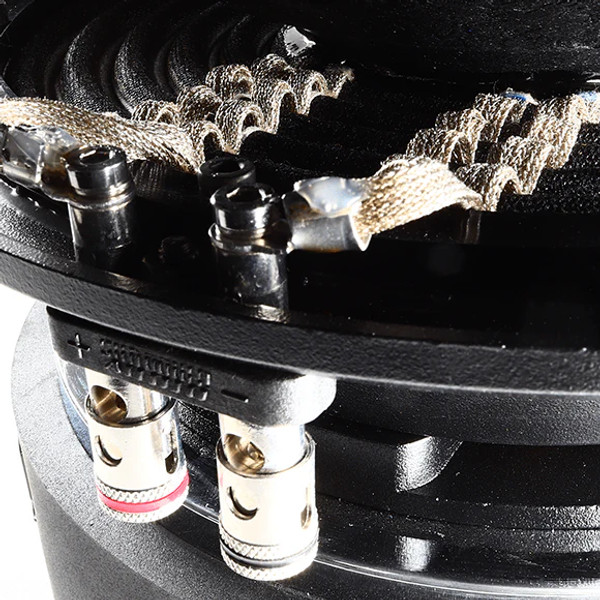

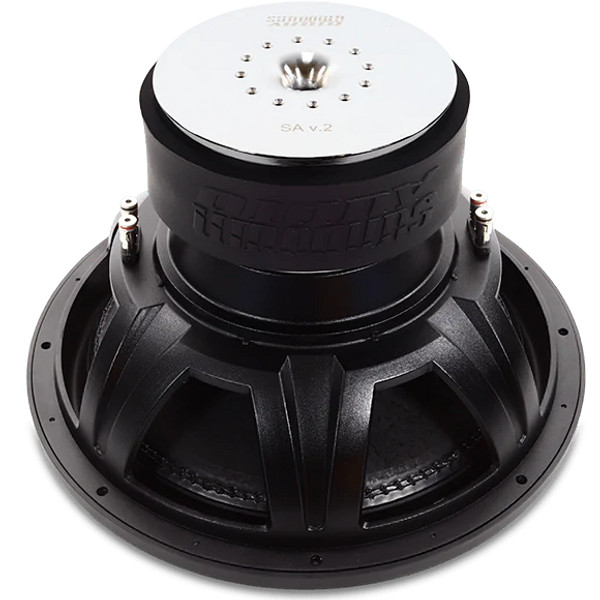

The motor also features a large magnet shorting ring (faraday ring) to reduce distortion and deliver smoother response across the entire acoustic spectrum. The motor & coil setup is mated to an extremely robust multi-layer spider with fully tied-on & doubled-up “XL” tinsel leads. A competition-grade paper cone, strong foam surround, and cast aluminum frame are used to complete this masterpiece. On top of the ~19mm of one-way linear excursion we have an x-mech limit of 37mm one-way before coil bottom making it nearly "bottomless."
Specifications:
Enclosure Specifications:
| Thiele-Small Parameters | SA-15 V2 D2 | SA-15 V2 D4 |
| Dc Resistance (Re) | 3.89 Ohms | 5.83 Ohms |
| Resonance Frequency (Fs) | 36.8387 Hz | 37.4160 Hz |
| Equivalent Volume (Vas) | 51.9387 L | 45.3391 L |
| Electrical Factor (Qes) | 0.5847 | 0.6206 |
| Mechanical Factor (Qms) | 5.1005 | 5.7094 |
| Total Factor (Qts) | 0.5245 | 0.6206 |
| Inductance (Le) |
3.6326 mH | 4.7903 mH |
| Bl Factor (BL) | 24.4656 | 29.1578 |
| Mechanical Mass (Mms) | 388.9706 g | 431.9464 g |
| Mechanical Compliance (Cms) |
47.9860 uM/N | 41.8886 uM/N |
| Sens (dB @ 1w/1m) | 88.22 | 87.08 |
| Xmax | 19mm | 19mm |
