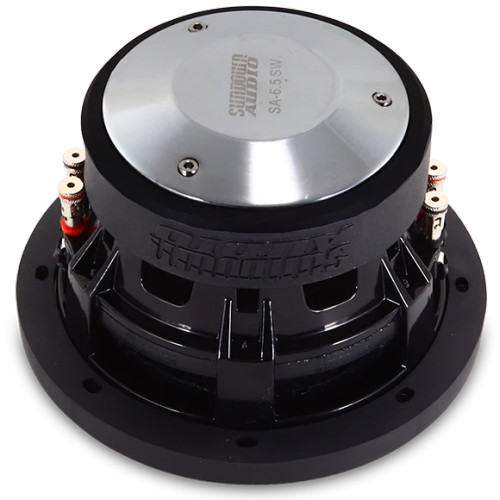

About: Sundown Audio SA-6.5 v.1 SA-Series 6.5" 200W RMS Car Subwoofer

The SA-6.5SW was created to achieve extremely high performance at less than 4” of mounting depth (3.8” to be precise). Rest assured that even with the limited depth the SA-6.5SW lives up to the reputation of the SA series! These little guys will take a beating in TINY ported enclosures. Our customers have been in love with the incredible performance per dollar since their launch in 2017.

As with several other lines (SLD and SD-4 notably) we used a solid-pole design. This allows the back-plate to rest against the back wall of the enclosure. This further reduces effective depth requirements for this woofer. Shallow depth aside this unit has a full 10mm one-way linear excursion and an x-mech in excess of double that! So there is almost no concern about bottoming out the coil. We also borrowed the hyper-extended pole technique from our larger lines to help prevent coil damage from exiting the gap forward. Furthermore; we even included a magnet ID faraday ring to keep inductive distortions in check!

Specifications:

200 Watts RMS/ 600 Watts Peak
Dual 2 or 4 ohm voice coils
Large aluminum Faraday ring for smooth acoustic response
High-temperature voice coil wire
Spring-loaded terminals
Integrated vent channels for enhanced cooling
Perfect for under/behind seat sub enclosures

Enclosure Specifications:

Sealed Enclosure: 0.15 cu ft
Ported Enclosure: 0.3 cu ft
Recommended Tuning: 40Hz
Recommended Port Area: 4 sq in
Depth: 3.79"
Outside Diameter: 7.16″
Cut-Out: 5.93″

Thiele-Small Parameters	SA-6.5 D2	SA-6.5 D4
Dc Resistance (Re)	4.0 Ohms	7.1 Ohms
Resonance Frequency (Fs)	48.9 Hz	51.8 Hz
Equivalent Volume (Vas)	4.1 L	3.6 L
Electrical Factor (Qes)	0.50	0.54
Mechanical Factor (Qms)	4.82	4.65
Total Factor (Qts)	0.46	0.49
Inductance (Le)	1.69 mH	2.45 mH
Bl Factor (BL)	13.5	17.9
Mechanical Mass (Mms)	74.8 g	75.6 g
Mechanical Compliance (Cms)	0.14 uM/N	0.12 uM/N
Sens (dB @ 1w/1m)	81.6	81.5
Xmax	10mm	10mm
