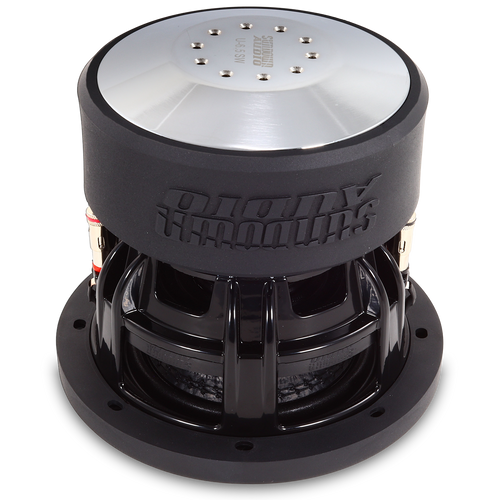

Sundown Audio U-6.5 U-Series 6.5" 400W RMS Car Subwoofer

$269.55
$214.29
$259.99
18% Off
(You save $55.26 )
SKU: U-6.5
UPC: 810111131131
Condition: New
Availability: Usually Ships in 1-2 Days
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: Sundown Audio U-6.5 U-Series 6.5" 400W RMS Car Subwoofer

Perfect for high-power underseat enclosures and designed to be at home in the competition lanes or playing your favorite tunes, the U Series is the premier “standard suspension” woofer in the Sundown lineup. A double-stacked 9” wide ferrite magnet system is coupled to a thick top plate. A thick set of shorting rings are also used inside the magnets and on the pole cap, smoothing out frequency response while doubling as a heat sink and airflow guide. An all-new, substantially thicker custom aluminum frame was designed specifically for the U Series, and equipped with heat-dissipation ribs. The v.2 motor also features an extended pole piece to keep the coil controlled under high stress!

Specifications:

  • 400 Watts RMS/1000 Watts Peak
  • Dual 2 or 4 ohm voice coils
  • Optimized for small ported enclosures
  • Aluminum 1.75” voice coil former for superior heat dissipation
  • High-temperature copper voice coil
  • Double stitched surround
  • Heavy-duty cast basket
  • Spring-loaded terminals accept up to 8-gauge wire
  • Stitched-on heavy-duty tinsel leads
  • Solid pole with vent channels and aluminum shorting ring cap
  • Rear gap-venting
  • Top-Plate Cooling Channels

Enclosure Specifications:

  • Sealed Enclosure: 0.125-0.2 cu. ft. net
  • Ported Enclosure: 0.25-0.35 cu. ft. net
  • Recommended Tuning: 35Hz -40Hz
  • Recommended Port Area: 4-5 sq. in
  • Displacement: 0.04 cu. ft.
  • Depth: 5.71"
  • Outside Diameter: 7.17"
  • Cutout: 5.94"
Thiele-Small ParametersU-6.5SW" D2U-6.5SW" D4
Dc Resistance (Re) 4.0586 Ohms 6.6274 Ohms
Resonance Frequency (Fs)  41.9533 Hz 38.6925 Hz
Equivalent Volume (Vas)  2.9053 L 3.7701 L
Electrical Factor (Qes) 0.5238 0.5005
Mechanical Factor (Qms) 8.5834 7.2470
Total Factor (Qts) 0.4937 0.4681
Inductance (Le) 4.0112 mH 5.5892 mH
Bl Factor (BL) 16.7428 20.0082
Mechanical Mass (Mms) 137.2546 g 124.3518 g
Mechanical Compliance (Cms) 104.8528 uM/N 136.0613 uM/N
Sens (dB @ 1w/1m) 77.8706 78.1460
