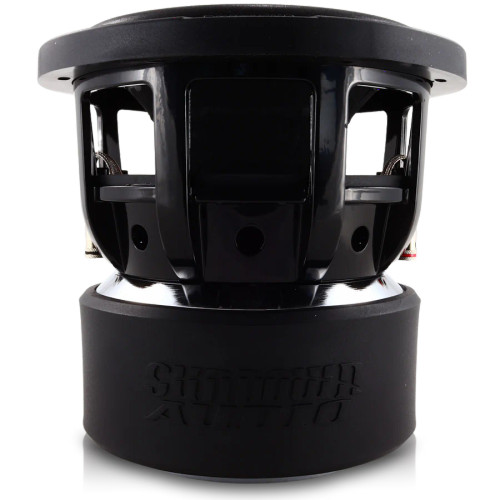

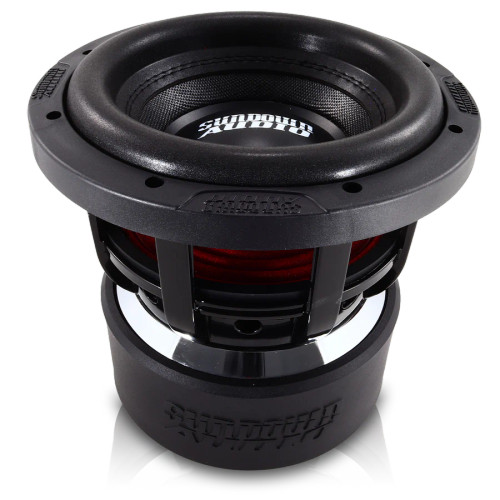

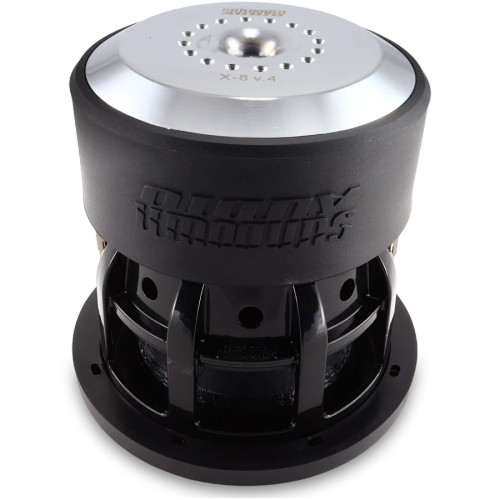

Sundown Audio X-8 v.4 X-Series 8" 1000W RMS Car Subwoofer

$428.57
$519.99
18% Off
SKU: X-8 v.4
UPC: 810111131360
Condition: New
Availability: Usually Ships In 1-2 Days
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: Sundown Audio X-8 v.4 X-Series 8" 1000W RMS Car Subwoofer

The X-8 v.4 is THE KING of standard cut-out size 8" subwoofers and it sets the standard for others to follow.

It builds on the legacy of the v1, v2, and v3 models but definitively out-performs all previous generations. The secret sauce is largely in the painstakingly FEA optimized spider and surround. It's hard to overstate the impact of proper suspension design on a subwoofer but anyone who has used the X-8 v.4 can attest that we've nailed it here.

Beyond the suspension - the X-8 v.4 is built on a newly revised version of our classic custom-tooled 8" frame. It represents the absolute maximum performance possible on this frame platform. The motor and coil are capable of ~20mm of linear x-max one-way and around 2.4" p-p before the coil leaves the gap (with a little beyond that before any physical bottom is reached).

As with most of our subs it also features an aluminum magnet ID shorting ring for reduced inductive distortion as well as a few other secret Sundown tricks for distortion reduction!"

Specifications:

  • 1000 Watts RMS / 2500 Watts Peak
  • Dual 2 or 4 ohm voice coil
  • Triple-stacked magnet
  • 2.5” voice coil
  • Hyper-extended pole

Enclosure Specifications:

  • Sealed Enclosure: 0.3-0.4 cu ft
  • Ported Enclosure: 0.75-1.0 cu ft
  • Recommended Tuning: 32Hz
  • Recommended Port Area: 12-16 sq in
  • Displacement: 0.13 cu ft
  • Depth: 7.56"
  • Outside Diameter: 8.71″
  • Cut-Out: 7.32″
Thiele-Small Parameters X-8 v.4 D2 X-8 v.4 D4
Dc Resistance (Re) 3.04 Ohms 6.06 Ohms
Resonance Frequency (Fs) 35 Hz 35 Hz
Equivalent Volume (Vas)  22.188 L 19.22 L
Electrical Factor (Qes) 0.525 0.516
Mechanical Factor (Qms) 2.308 2.396
Total Factor (Qts) 0.428 0.424
Inductance (Le)
3.1785 mH 4.6357 mH
Bl Factor (BL) 22.99 32.182
Mechanical Mass (Mms) 369.747 g 372.752 g
Mechanical Compliance (Cms)
55.431 uM/N 48.017 uM/N
Sens (dB @ 1w/1m) 84.05 84.9
Xmax 22mm 22mm
