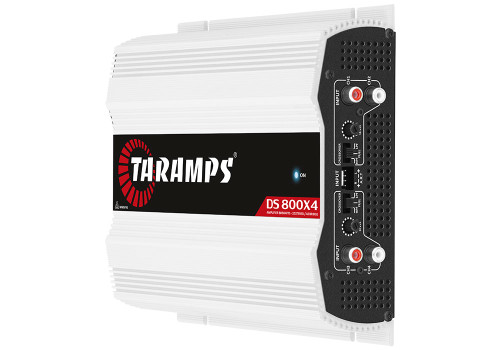

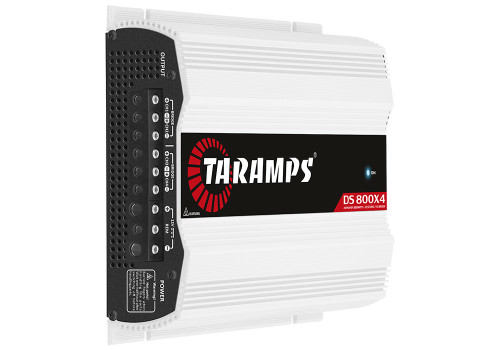

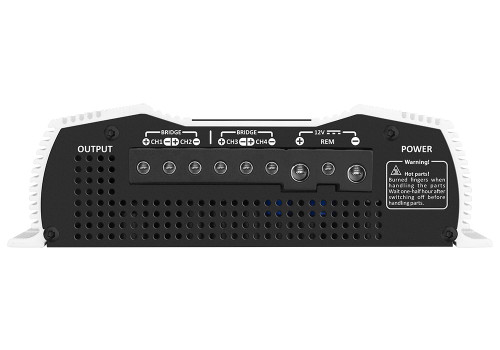

About: Taramps DS800X4 Class D 4-Channel Car Amplifier - 200W RMS x 4 (Taramps Authorized Canadian Dealer)
The Taramps DS 800×4 is an efficient 4-channel amplifier that delivers up to 800 Watts RMS at 1 Ohm or 2 Ohms. Designed for versatility, it’s a Full Range amp which means it can handle everything from deep sub-bass to crystal-clear treble.
With 4 channels of 200 Watts RMS each, it reaches a total of 800 Watts RMS, and it also supports bridge connections for even more versatility. Equipped with fixed crossovers at 90Hz (HPF and LPF), the DS 800×4 ensures better speaker performance and crisp, detailed audio reproduction with low distortion.
It offers RCA inputs and high-level inputs with automatic turn-on — perfect for both aftermarket systems and factory multimedia head units. Its chassis enhances thermal performance and power efficiency, making it perfect for any car audio builds. The DS 800×4 is your all-in-one solution for crystal-clear sound and consistent power, no matter the configuration.
Technical Information:
| 1 Ohm Version | 2 Ohms Version | |
| Maximum Power | Nominal Power @12.6VDC 1 Ohm: 800W RMS (4 x 200W RMS) 2 Ohms: 544W RMS (4 x 136W RMS) 4 Ohms: N/A 2 Channels Bridged: 2 x 400W RMS |
Nominal Power @12.6VDC 1 Ohm: N/A 2 Ohms: 800W RMS (4 x 200W RMS) 4 Ohms: 544W RMS (4 x 136W RMS) 2 Channels Bridged: 2 x 400W RMS |
| Number of Channels | 04 | 04 |
| Input Sensitivity | 250mV | 250mV |
| Signal to Noise Ratio | >88dB | >88dB |
| Frequency Response | 10Hz ~ 22KHz (-3dB) | 10Hz ~ 22KHz (-3dB) |
| Crossover High Pass (HPF) | 90Hz (-12dB/8ª) Fixed | 90Hz (-12dB/8ª) Fixed |
| Crossover Low Pass (LPF) | 90Hz (-12dB/8ª) Fixed | 90Hz (-12dB/8ª) Fixed |
| Input Impedance | 10K Ohms | 10K Ohms |
| Output Impedance | 1 Ohm | 2 Ohms |
| Protection System | Output overload | Output overload |
| Minimum Supply Voltage | 9VDC | 9VDC |
| Maximum Supply Voltage | 16VDC | 16VDC |
| Consumption at Rest | 1.0A | 1.4A |
| Maximum Music Consumption | 51A | 43A |
| Maximum Consumption in Sinusoidal Signal | 102A | 86A |
| Dimensions (W x H x D) | 7.24" x 2.13" x 7.48" (173 x 52 x 227mm) | 7.24" x 2.13" x 7.48" (173 x 52 x 227mm) |
| Weight | 3.04lb (1,43kg) | 3.04lb (1,43kg) |
| EAN | 7898556844826 | 7898556844369 |
