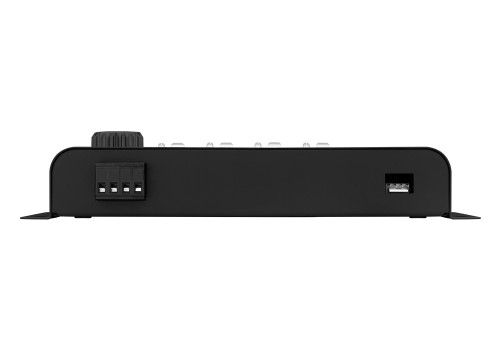

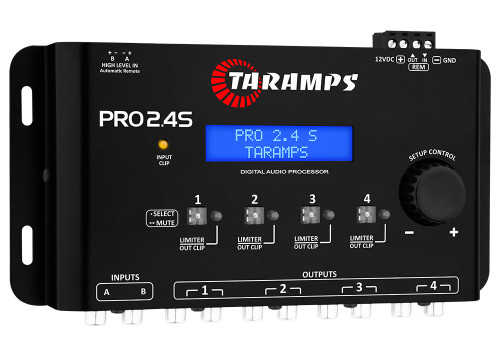

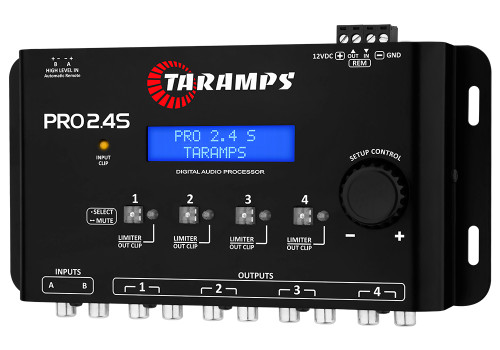

About: Taramps PRO2.4S Digital Audio Processor (Taramps Authorized Canadian Dealer)
The Pro 2.4S is a 4-channel digital audio processor. Designed with the highest technology, it offers vital features and adjustments for car audio, such as: crossover with multiple filters, 15-band graphic equalization, 12 pre-defined equalizations, parametric equalization, alignment, routing, phase inversion, limiter, input and output clip indicator, remote signal output to activate amplifiers, audio generator, among many others. In addition, it features an audio input via RCA and also a high level input, allowing use with conventional and original head units (eg multimedia without RCA output). Another advantage of this product is the anti-puff system, which prevents those infamous pops when turning the sound on and off. All this and much more to keep your sound system always tuned, aligned and with the quality you deserve.
Technical Specification:
| Input impedance | 10K Ohms (RCA) 50 Ohms (WIRE) |
|---|---|
| Output impedance | 47 Ohms |
| Maximum input level | 5.9Vpp 2,1V RMS (RCA) 28Vpp 10V RMS (WIRE) |
| Maximum output level | 5.9Vpp 2.1V RMS |
| Frequency response | 10Hz to 22KHz |
| Total Harmonic Distortion | 0.01% |
| Signal to Noise Ratio | >90dB |
| Crosstalk (separation between channels) | >80dB |
| Input Channels | 2 |
| output channels | 4 |
| Routing | A,B,A+B |
| General gain | -80 to 0dB |
| Output gain | -45 to +15dB |
| crossover | HPF (Variable): Variable Filters LPF (Variable): Variable Filters |
| Linkwitz Rilley Filters | -12,-18,-24,-36,-48dB/Octave |
| Butterworth filters | -6,-12,-18,-24,-36,-48dB/Octave |
| Alignment | 8.0 mS (272cm) |
| Phase | 0 / 180º |
| Input Equalizer | Input graphic equalizer: 15 bands, 2/3 octave Frequencies: 25, 40, 63, 100, 160, 250, 400, 630, 1K, 1.6K, 2.5K, 4K, 6.3K, 10K, 16KHz. Attenuation / Gain: -12dB to +12dB Input parametric equalizer: Central Frequency: Variable from 10Hz to 22KHz Attenuation / Gain: -12dB to +12dB Q factor adjustment: 0.4 to 10 12 presets: Flat, Loudness, Bass Boost, Mid-Bass Boost, Treble Boost, Powerful, Electronic, Rock Style, Hip-Hop Style, Pop Music, Vocal and Competition. |
| Audio Generator (Sine Waveform) | Frequency range: Variable from 10Hz to 22KHz Gain: -60 to 0dB Modes: Fixed Frequency / 3-speed scanning |
| Languages | Portuguese, English and Spanish |
| Memory Positions | Factory default + 3 assignable positions |
| POWER SUPPLY VOLTAGE (POWER) | 10 to 16VDC |
| Dimensions (W x H x D) | 7.80 × 1.46 × 4.45 inches |
| Weight | 0.99lb (0.45 Kg) |
| EAN | Black: 7898556847919 White: 7908706602470 |
