Taramps PRO2.4S Digital Audio Processor
About: Taramps PRO2.4S Digital Audio Processor (Taramps Authorized Canadian Dealer) The Pro 2.4S is a 4-channel digital audio processor. Designed with the highest technology, it offers vit
My Account
If you are already registered, please log in.
Create your account and enjoy a new shopping experience.
Create A New Accounthave questions?
Always the correct part
We know our products
We're happy to help
Free shipping on orders over $200*

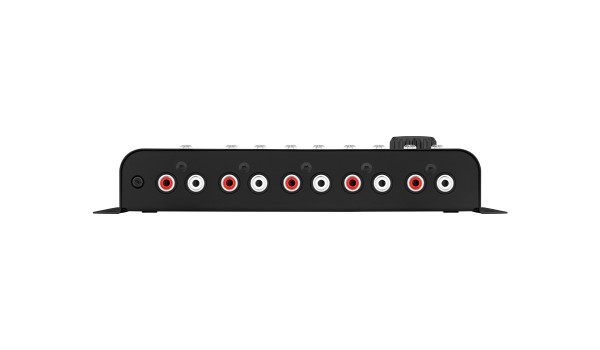

About: Taramps Pro 2.8S 8-Way Digital Audio Processor (Taramps Authorized Canadian Dealer)
Taramps’ Pro 2.8S is an 8-way audio processor (dsp) designed to transform your car audio system. With cutting-edge technology, it offers a complete set of advanced features to customize and adjust every detail, ensuring high performance and superior sound quality.
Its intuitive LCD interface panel allows for real-time adjustments with ease and precision. Its RCA inputs with gain adjustment offer compatibility with different players, supporting up to 9 VRMS. The WIRE input, with automatic activation, expands integration with original players and multimedia devices, in addition to including a Remote output for activating amplifiers and peripherals.
Equipped with 8 independent outputs, the Pro 2.8S is ideal for 8-way projects, allowing detailed configurations, such as graphic and parametric equalizations, high-precision crossover filters, time alignment, phase inversion and adjustable limiters. In addition, it has an integrated audio generator, perfect for calibrations and tests, including frequency sweeps. To ensure even greater safety, the Pro 2.8S has input and output clip indicators, allowing precise monitoring.
The Pro 2.8S offers two feature-rich operating modes:
Standard Mode: offers essential adjustments, such as a 15-band graphic equalizer and precise crossover filters, in addition to other advanced tools that ensure control and quality.
Dynamic Mode: includes even more sophisticated features, such as peak and RMS limiters, among many other features that maximize sound performance.
Complete and versatile, the Pro 2.8S is the ideal choice for those seeking quality and high performance in automotive sound.
Technical Information:
Number of Channels | Number of input channels: 2 Number of output channels: 8 |
---|---|
Input impedance | Input impedance (RCA): 10K ohms Input impedance (WIRED): 50 ohms Output impedance 47 ohms. |
Maximum input level | Maximum input level (RCA): 9VRMS (Min Gain) / 2VRMS - Max Gain. Maximum input level (WIRED): 28Vpp (10V RMS) |
Maximum output level | 5,6Vpp (2V RMS) |
Frequency response | (-1dB): 10 Hz to 22 KHz |
Total Harmonic Distortion | 0,01% |
Signal to Noise Ratio | >90dB |
Crosstalk (separation between channels) | >80dB |
Minimum Supply Voltage | 9VDC |
Maximum Supply Voltage | 17VDC |
Routing | Inputs and outputs: A, B, A+B. |
General gain | General gain adjustment: -80 to 0dB. |
Output gain | Output gain adjustment: -45 to +15dB. |
Input Equalizer | STANDARD mode only: Graphic input equalizer, 15 bands, 2/3 octave and 12 presets: Frequencias 25,40,63,100,160,250,400,630,1K,1.6K,2.5K,4K,6.3K,10K,16KHz Gain attenuation: -12dB to + 12dB |
central frequency | Variable from 10Hz to 22KHz |
Attenuation - Gain | -12dB to + 12dB |
Q factor | 0,4 to 10 |
Frequency range | Variable from 10 Hz to 22KHz |
Gain | -60 a 0dB |
Languages | Portuguese, English and Spanish |
Dimensions (W x H x D) | 7.80" x 1.46" x 4.45" (198 x 37 x 113 mm) |
Weight | 0.99 Ib (0.45 Kg) |
EAN | Black: 7908706602401 |
Additional Information | |
Resolution: 24 bits Sampling rate: 48 KHz Nominal power consumption (12.6V): 0.30A Modes... Fixed frequency / 3-speed scanning Access protection: 4-digit password (customizable) Settings memory positions: Factory default + 3 nameable positions Screen saver function: Text of up to 15 characters |
