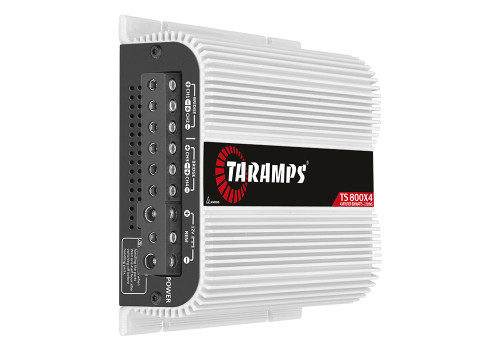

Taramps TS800x4 Class D 4-Channel Amplifier - 200W RMS x 4 at 2 Ohms

$167.00
$189.99
12% Off
SKU: TS800x4
UPC: 7898556849043
Condition: New
Availability: Usually Ships in 1-2 Days
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: Taramps TS800x4 Class D 4-Channel Amplifier - 200W RMS x 4 at 2 Ohms (Taramps Authorized Canadian Dealer)

The power and reliability you already trust — now in the perfect setup for your system. The Taramps TS 800X4 2 Ohms is a compact multichannel amplifier that delivers 800W RMS distributed across 4 channels, offering versatility, quality, and practicality for your car audio.

Designed to power woofers, subwoofers, midrange speakers, drivers, and super tweeters, this amplifier allows for bridged channel configurations to meet a wide variety of applications — always with the power you need and the quality you expect from Taramps.

The TS 800X4 2 Ohms comes equipped with 4-channel high-level inputs with automatic turn-on, eliminating the need for adapters when used with OEM or multimedia players. That means faster installation, greater compatibility, and improved performance.

It also features traditional RCA inputs, Gain control, and a fixed crossover (HPF, LPF, Full), giving you precision and full control over your sound setup. One more advantage: a reinforced power and speaker connector, designed to be both secure and easy to install, guaranteeing solid electrical contact and peace of mind. Whether you’re upgrading your everyday car audio system or building a custom sound project, the TS 800X4 2 Ohms delivers the perfect balance of power, clarity, and simplicity.

Technical Information:

2 Ohms Version Nominal Power @14.4VDC
2 Ohms: 800W RMS (4 x 200W RMS)
4 Ohms: 544W RMS (4 x 136W RMS)

2 Bridged Channels
4 Ohms: 800 W RMS (2 x 400W RMS)
Number of Channels 04
Input Sensitivity (RCA): 4V (min.) / 250mV (max.)
(WIRE): >10V (min.) / 3V (max.)
Signal to Noise Ratio >90dB
Frequency Response 10Hz ~ 20KHz (-3dB)
Crossover High Pass (HPF) 90Hz (-12dB/8ª) Fixed
Crossover Low Pass (LPF) 90Hz (-12dB/8ª) Fixed
Input Impedance 10K Ohms (RCA)
Output Impedance 2 Ohms
Protection System Output Short Circuit
Minimum Supply Voltage 9VDC
Maximum Supply Voltage 16VDC
Consumption at Rest 0.9A
Maximum Music Consumption 38A
Maximum Consumption in Sinusoidal Signal 76A
Dimensions (W x H x D) 5.43" x 1.89" x 6.89" (138 x 48 x 175mm)
Weight 1.91lb (0.87Kg)
EAN WHITE: 7898556849043
