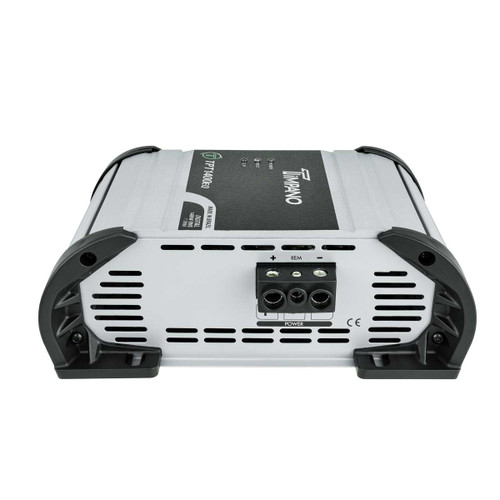

Timpano TPT-1400EQ 1400W RMS Monoblock Compact Car Audio Amplifier

$299.99
$214.99
$239.99
10% Off
(You save $85.00 )
SKU: TPT-1400EQ
Condition: New
Availability: Usually Ships in 1-2 Days
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: Timpano TPT-1400EQ 1400W RMS Monoblock Compact Car Audio Amplifier

Timpano amplifiers raise power amplification to a new standard of quality and usability. This new line delivers the most innovative and powerful Brazilian technology in compact full range amplifiers. Loaded with features, it provides an unsurpassed efficiency rate of 80-90% from a small profile heatsink. The TPT-1400EQ offer 1 channel with advanced individual equalization features for Bass, Mid Bass and Mid High, plus the traditional Level, High Pass and Low Pass filters.

Features:

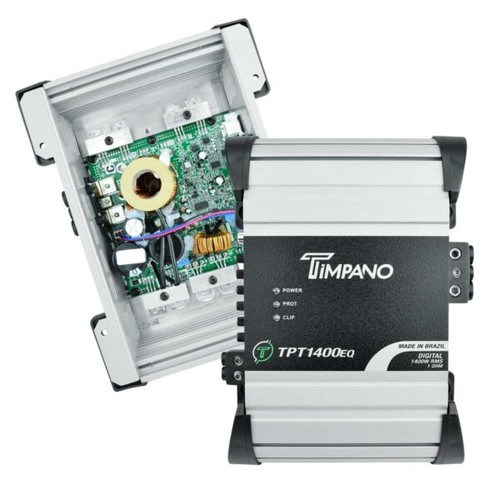

  • Compact Design: Digital class D Brazilian technology allows this amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 8.75″ depth x 6.20″ width x 3″ height
  • Power: This amplifier is designed to run multiple speakers with the power they need to perform! Systems that demand 1400 Watts dynamic RMS power output on 1 channel. Its high efficiency rate of 81% provides more power with less battery consumption.
  • Technology: A smart electronic 4-way protection circuit protects the amp if it gets too hot, if speakers fail causing a short and as well low/high voltage protections! Focusing on sound quality, a response of 10 to 25,000Hz was used to give the best sound reproduction from this tiny amp. This makes it a popular option for systems with many drivers or tweeters.
  • 4 gauge power connectors. 10 gauge speaker wire outputs.  Variable Gain Control to adjust the amount of signal that is coming into the amplifier. Built-in variable HPF / LPF crossover filters and a 3 band equalizer. This allows tuning for speakers or horn drivers, an easy setup without needing an external crossover.

Technical Information

  TPT-1400EQ 1 Ohm  TPT-1400EQ 2 Ohm
Number of Channels 01 01
Max Dynamic Output 1400 Watts RMS 1 Ohm  1400 Watts RMS 2 Ohms
RMS Power @ 12.6 Volts

@ 12.6 VDC - 1 OHM: 1200W
@ 12.6 VDC - 2 OHMS: 700W

@ 12.6 VDC - 2 OHM: 1200W
@ 12.6 VDC - 4 OHMS: 700W
RMS Power @ 14.4 Volts @ 14.4 VDC - 1 OHM: 1400W
@ 14.4 VDC - 2 OHMS: 850W
@ 14.4 VDC - 2 OHM: 1400W
@ 14.4 VDC - 4 OHMS: 800W
Supply Voltage  11 ~ 16V  11 ~ 16V
Frequency Response  10Hz ~ 25KHz  10Hz ~ 25KHz
Crossover Low Pass (LPF) 50Hz ~ 25KHZ  50Hz ~ 25KHz
Crossover High Pass (HPF) 10Hz ~700Hz  10Hz ~ 700Hz
Signal to Noise Ratio >90dB  >90dB
Harmonic Distortion <0.9% THD   < 0.9 % THD
Input Sensitivity 0.2 V  0.2V
Input Impedance 12K Ohms  12K Ohms
Impedance Output  1 Ohm   2 Ohms
Consumption with Signal Musical  1A ~ 57A  1A ~ 56A
Dimensions (D x W x H) 8.75" x 6.20" 3"   8.75" x 6.20" 3"
 Weight  4.40LBS  4.50LBS

Precautions:

You must follow the instructions for the product’s installation and connections to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

  • Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
  • Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;
  • Always use 100% Copper wire and good quality connectors. This guarantees reliability and performance.
  • To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 60A fuse 12 inches away from the battery as a safety precaution
