Timpano

Timpano TPT-3000EQ Monoblock Car Audio Amplifier

$314.99
$274.99
SKU:
TPT-3000EQ
Condition:
New
Availability:
Sold Out
Shipping:
Calculated at Checkout

Timpano TPT-3000EQ Monoblock Car Audio Amplifier

$314.99
$274.99

Timpano TPT-3000EQ Monoblock Car Audio Amplifier

$314.99
$274.99

About: Timpano TPT-3000EQ Monoblock Car Audio Amplifier

Timpano amplifiers raises power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact full range amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 85-95% in a compact Class D full range amplifier.

The TPT-3000EQ offer 1 channel with advanced individual equalization features for Bass, Mid Bass and Mid High, plus the traditional Level, High Pass and Low Pass features. Its Full Range frequency response from 10Hz to 25KHz allows the installation of Subwoofers, Woofers, Drivers and Tweeters.

Features:

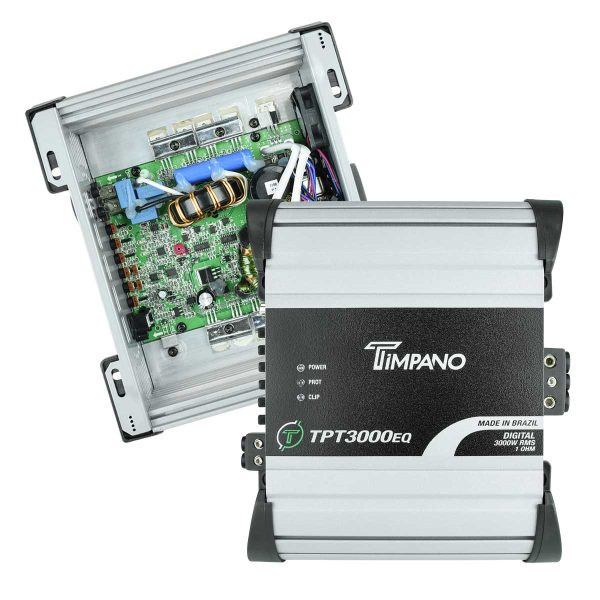

  • Compact Design: Digital class D Brazilian technology allows this car audio amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 9.36″ depth x 7.46″ width x 3.05″ height
  • Power: This monoblock amplifier is designed to run your system with the power it needs to perform! 3000 Watts RMS power output on 1 channel. Its high efficiency rate of 86% provides more power with less battery consumption.

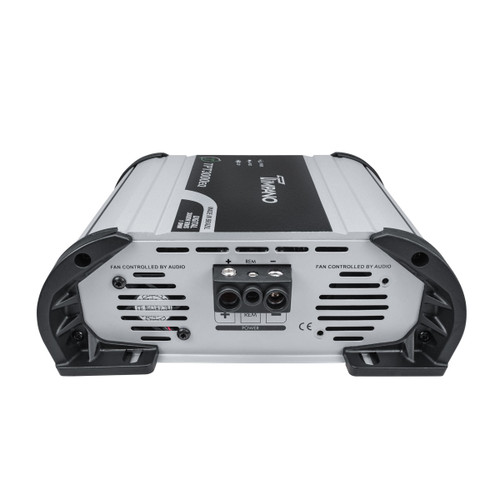

  • Heavy duty power and speakers terminals. Built-in variable crossover filters for easy tuning! Set setting for your type of speaker with a HPF 10 to 700Hz and LPF 90 to 20,000Hz without a need for an external crossover or DSP. It also includes Variable Gain Control. Level controls are not for adjusting volume. They adjust the amount of signal that is coming into the amplifier from your signal source.
  • Technology: A smart electronic 2-way protection circuit protects the amp if it gets too hot or if speakers fail causing a short! Focusing in sound quality, a full range response of 10 to 20,000Hz was used to give the best sound reproduction on this compact amplifier.

Technical Information

  TPT-3000EQ 1 Ohm TPT-3000EQ 1 Ohm
Number Of Channels 01 01
RMS Power @ 12.6 Volts

@ 12.6 VDC - 1 OHM: 3000W

@ 12.6 VDC - 2 OHM: 2100W

@ 12.6 VDC - 4 OHM: 1150W

@ 12.6 VDC - 2 OHM: 3000W

@ 12.6 VDC - 4 OHM: 2100W

Supply Voltage

9.5 ~ 15V

9.5 ~ 15V

Frequency Response

10Hz ~ 25KHz

10Hz ~ 25KHz

Crossover Low Pass (LPF)

50Hz ~ 25KHz

50Hz ~ 25KHz

Crossover High Pass (HPF)

10Hz ~ 700Hz

10Hz ~ 700Hz

Signal to Noise Ratio

> 90 dB

> 90 dB

Harmonic Distortion

< 0.9 % THD

< 0.9 % THD

Input Sensitivity

0.2V

0.2V

Input Impedance

12K Ohms

13K Ohms

Impedance Output

1 Ohm

2 Ohms

Consumption with Signal Musical

2A ~ 140A

2A ~ 134A

Consumption with Signal Bass

2A ~ 280A

2A ~ 269A

Dimensions (L x W x H)

8.75” x 7.40” x 3”

8.75” x 7.40” x 3”

Weight

5.30 Lbs

5.50 Lbs

Precautions:

You must follow the instructions for the product’s installation and connections to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

  • Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
  • Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;
  • Always use 100% Copper wire and good quality connectors. This guarantees reliability and performance.
  • To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 60A fuse 12 inches away from the battery as a safety precaution
Need help? We're available at+1 (416) 745-1021 or Email us atcontactus@singhelectronics.ca
