About: Timpano TPT-DH175 1″ 75W RMS Exit High Frequency Compression Driver + 4×4″ Horn - 8 Ohm (Each)

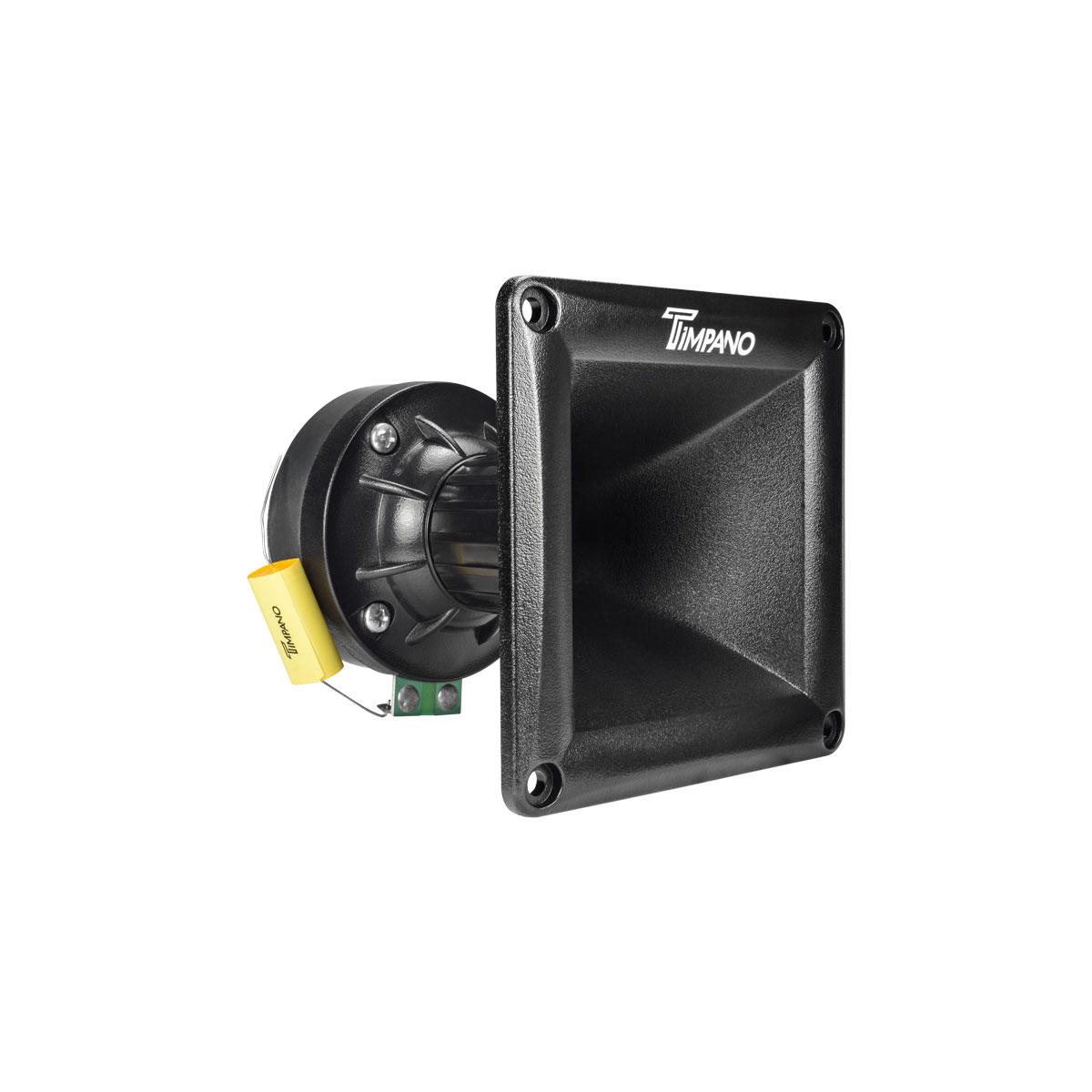

The Timpano TPT-DH175 is a 1″ phenolic dome compression driver specially designed to offer a smooth extended frequency response over a broad band, from mids to highs, with very high efficiency.

Easy to install anywhere, even on car doors. In addition, the small diameter of the compression driver allows simple installation at the front. This horn driver can deliver space filling sound at extremely high SPL levels, a great choice for high output PA, home theater, and car audio systems.

Ideal for compact 2 or 3-way systems. The 4.5″ x 4.5″ horn TPT-HL11-25 produces a controlled 45° x 45° dispersion pattern to reduce unwanted reflections while still delivering room filling sound. As a replacement for pro audio cabinets, this high frequency horn driver has a common footprint.

Product Highlights:

• The wide frequency range ranges from 1,300Hz to 19,000Hz, and the high sensitivity of 108 db makes it a very loud and efficient driver.
• Handles an impressive 250 Watts Max power and 75w RMS, ensuring that it effortlessly complements your entire audio system. Capacitor included. 8 Ohm Voice Coil.
• Complete your pro audio system with the TPT-DH175. With its 1″ voice coil, this driver maximizes loudness per watt, delivering crisp and clear high frequency range sound.
• Mounting Depth: 4.64”. Extremely loud and clear highs with an amazing frequency response that can even play some mids. Shallow mounting depth for custom car audio door panels.

Specifications:

• Power Handling:
• 250 Watts Max Power
• 75 Watts RMS Power
• Impedance: 8 Ohm
• Sensitivity: 108 dB
• Frequency Response: 1.3 kHz – 19 kHz
• 1″ Voice Coil
• Phenolic Diaphragm
• Ferrite Driver
• Recommended High Pass Filter on TPT-SP4BT DSP Crossover
• 1400 Hz under 125 Watts of Amplifier RMS Power with 18dB Slope
• 1200 Hz under 75 Watts of Amplifier RMS Power with 12dB Slope
• Replacement Diaphragms: TPT-RPDH175
• Sold Individually

Mounting and Shipping Information:

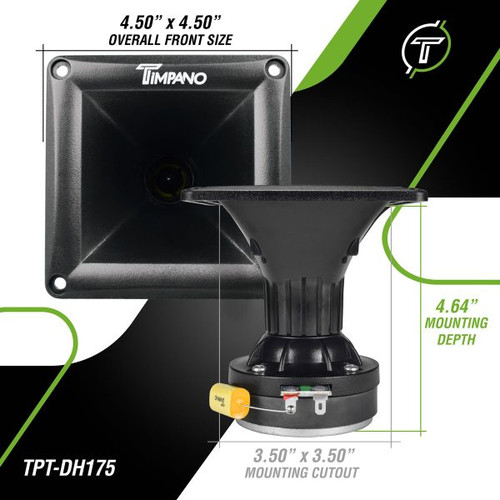

•  Mounting Depth: 4.64″ (117.8 mm)
• Mounting Cutout size: 3.50″ x 3.50″ + Terminal
• Overall Size (W  x L x H): 4.50″ x 4.50″ x 4.92″
• Weight: 1.15 Lbs
