Descriptions

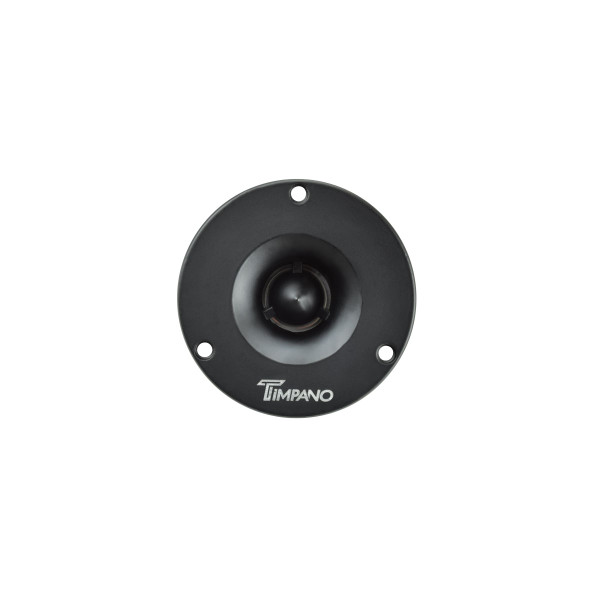

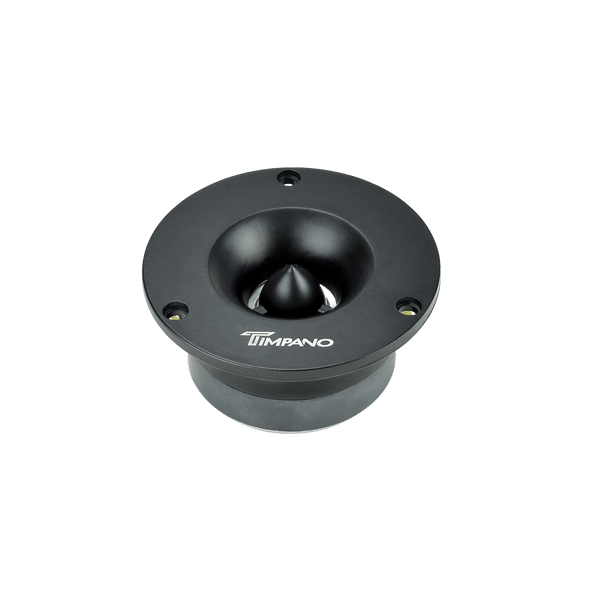

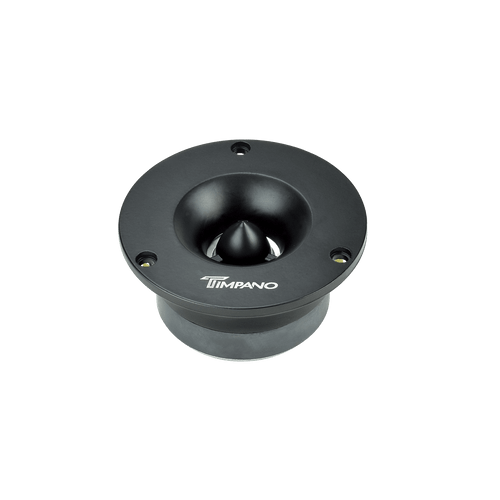

About: Timpano TPT-ST3 BLACK 3.75″ 200W RMS Bullet Tweeters - 4 Ohm (Pair)

These tweeters are capable of generating extremely loud volume you need to keep up in the high SPL environment. The aluminum diaphragm has been engineered to take the power needed to keep up and maintain crystal clarity. Engineered and designed in the USA by PRV Audio Group, the TPT-ST3 are car audio high compression bullet tweeters rated at 600 watts max peak power. Ready to deliver major concert sound to your sound system.

Features:

• Crystal Clear Highs: These tweeters are capable of generating extremely loud volume you need to keep up in the high SPL environment
• Bulit-in Crossover: A capacitor that eliminates out all low end frequencies that might otherwise harm the super tweeters
• Shallow Profile: Featuring a sleek PRO Audio faceplate Design this high performance 3.75 inch round tweeters, only have 1.59 inches of mounting depth.

Specifications:

• Power Handling:
• 600 Watts Max Power per pair / 300 Watts each
• 200 Watts RMS Power per pair / 100 Watts each
• Impedance: 4 Ohm each tweeter
• Sensitivity: 105 dB
• Frequency Response: 2,000 – 22,000Hz
• Aluminum Diaphragm with a 1″ voice coil
• Replacement Diaphragm: TPT-RPST3
• Recommended High Pass Filter on TPT-SP4BT DSP, Based on Power per Tweeter
• 7500 Hz under 150 Watts of Amplifier RMS Power with 18dB Slope
• 6000 Hz under 100 Watts of Amplifier RMS Power with 12dB Slope
• Replacement Diaphragm: TPT-RPST3

Mounting and Shipping Information:

• Mounting Depth: 1.59”
• Mounting Cutout Diameter: 2.87″ + Terminals
• Overall Size: 3.75′ diameter x 1.80″ Height
• Weight: 1.32 Lbs each tweeter

What's in the Box:

• Capacitor attached per tweeter
• 1x Timpano Logo Sticker
• 2 x Tweeters (1 pair)
