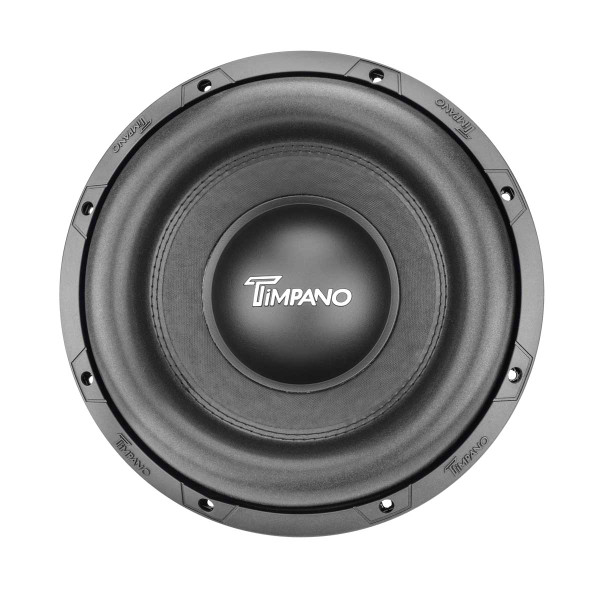

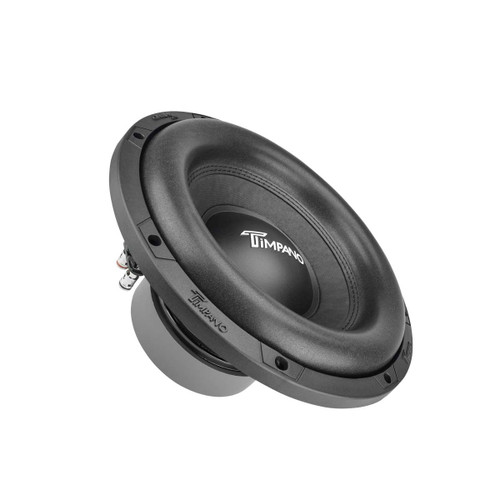

About: Timpano TPT-T1000-12 D4 12" 600W RMS Car Audio Subwoofer - Dual 4 Ohm

Timpano T1000 is all about deep low tones for small efficient systems. These subs deliver incredible low tones with a small amount of power, This keeps electrical upgrades minimal with less added strain on the vehicle. With high energy, oversized single magnet motor paired with a high foam surround stitched to a heavy-duty competition-grade pressed paper cone, it allows this woofer to play the low notes it was designed for.

All the top quality components featured in this sub, as well as its advanced 3-way air flow cooling system, are what ultimately allow for the incredible responsiveness & power handling. Timpano T1000 series subwoofers will play deeper, with more dynamic range, and increase output after you properly break in your subwoofer. Its suspension is designed to provide a high level of excursion and linear control in ported boxes. A brand-new sub is always a little stiff but with a proper break-in, the subwoofer soft parts will stretch out! This means with less power you will create the same output with more extended low bass tones.

Product Highlights:

Features:

• Competition Grade Pressed Paper Cone with Flexible High Foam Surround capable of 14 mm Xmax – 1.10″ Peak to Peak Excursion before damage
• Its efficient 2.4″ voice coil is wound in 4 layers at 36 mm height of pure copper wire, giving reliable performance at 600 Watts RMS

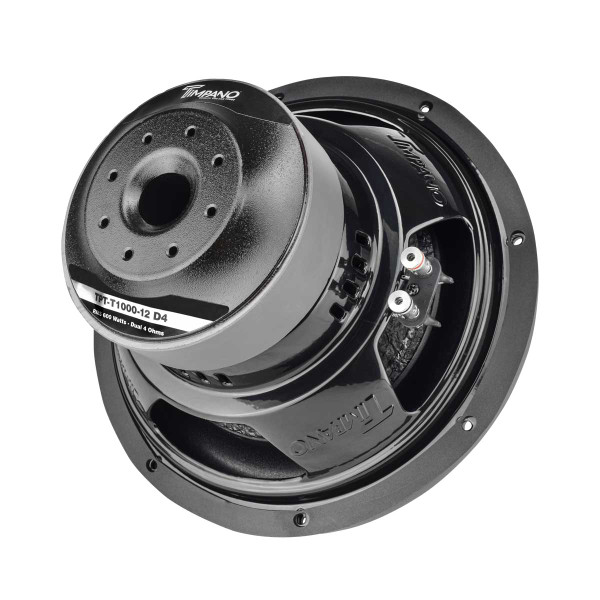

• Its motor force comes from a single oversized 40 mm height magnet on a heavy gauge stamped steel basket
• With a total weight of 15.00 Lbs this entry-level subwoofer is the perfect choice for the basshead on a budget

Specifications:

• Power Handling:
• 1200 Watts Max Power
• 600 Watts RMS Power
• Impedance: Dual 4 Ohm
• 2.4″ Voice Coil 4-Layer
• Frequency Response: 20 Hz – 280 Hz
• Fs: 32 Hz

Thiele-Small Parameters (Wired in Parallel Re 1.8 Ohm):

• Free Air Resonance (Fs): 32 Hz
• Electrical Factor (Qes): 0.72
• Equivalent Volume (Vas): 39.32 Liters
• Total Factor (Qts): 0.65
• Mechanical Factor (Qms): 7.32
• Linear Excursion (Xmax): 14 mm
• Max Mechanical Excursion (Xmech): 20 mm
• Bl Factor (Bl): 9.88 Tm
