Descriptions

About: Timpano TPT-T1500-12 D4 12" 800W RMS Car Audio Subwoofer - Dual 4 Ohm

Timpano T1500 is a great entry point for a higher performance subwoofer that brings hard-hitting bass in a small powerful package. These subs will perform like a boss on a small amount of power, This keeps electrical upgrades minimal with less added strain on the vehicle. With high energy, double-stack motor paired with a high foam surround stitched to a heavy-duty competition-grade pressed paper cone which allows this woofer to play the low notes it was designed for.

All the top quality components featured in this sub, as well as its advanced 3-way air flow cooling system, are what ultimately allow for the incredible responsiveness & power handling. Timpano T1500 series subwoofers will play deeper, with more dynamic range, and increase output after you properly break in your subwoofer. Its suspension is designed to provide a high level of excursion and linear control in ported boxes. A brand-new sub is always a little stiff but with a proper break-in, the subwoofer soft parts will stretch out! This means with less power you will create the same output with more extended low bass tones.

Features:

• Competition Grade Pressed Paper Cone with Flexible High Foam Surround capable of 16 mm Xmax – 1.25″ Peak to Peak Excursion before damage
• Its large 2.6″ voice coil is wound in 4 layers at 40 mm height of pure copper wire, giving reliable performance at 800 Watts RMS

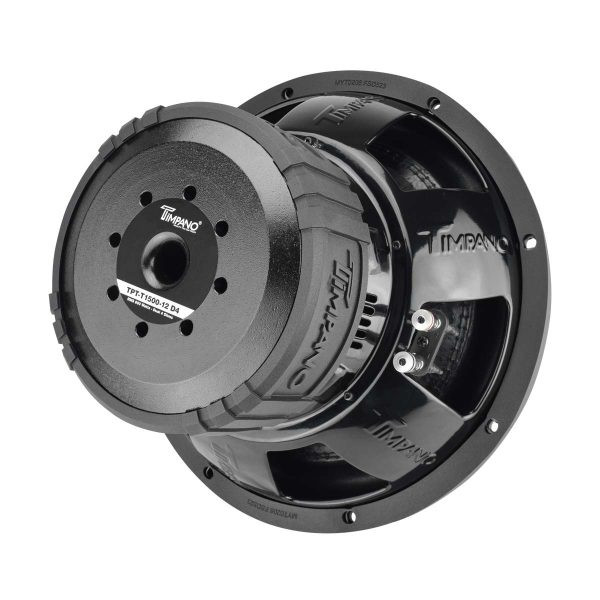

• Its motor force comes from a double ferrite magnet covered by a rubber Timpano Boot on a heavy gauge stamped steel basket
• With a total weight of 21.89 Lbs this bass machine will reproduce low-end frequencies with authority.

Specifications:

• 1600 Watts Max Power
• 800 Watts RMS Power
• Impedance: Dual 4 Ohm
• 2.6″ Voice Coil 4-Layer High Temperature
• Frequency Response: 25 Hz – 300 Hz
• Fs: 37 Hz

Thiele-Small Parameters (Wired in Parallel Re 1.8 Ohm):

• Free Air Resonance (Fs): 37 Hz
• Electrical Factor (Qes): 0.62
• Equivalent Volume (Vas): 30.39 Liters
• Total Factor (Qts): 0.58
• Mechanical Factor (Qms): 7.71
• Linear Excursion (Xmax): 16 mm
• Max Mechanical Excursion (Xmech): 22 mm
• Bl Factor (Bl): 11.72 Tm
