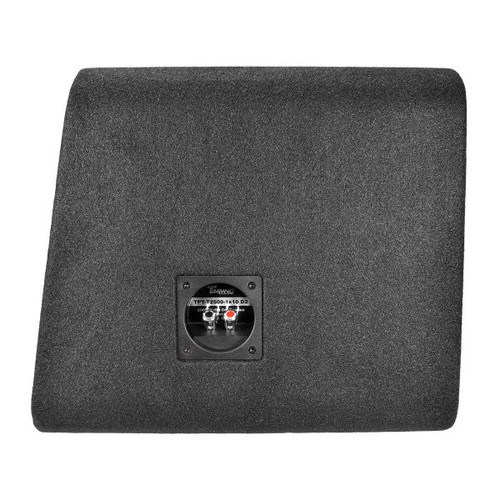

About: Timpano TPT-T2500-1x10 D2 Single 10″ 1000W RMS Loaded Ported Subwoofer Enclosure - 1 Ohm

This premium loaded enclosure package by Timpano makes it easy to add low-frequency bass to your vehicle. One 10 inch dual 2 Ohm TPT-T2500-10 D2 subwoofer is included in this package, pre-wired inside the enclosure using 12 gauge copper wire for a 1 Ohm final impedance.

This special box design features a kerf port, typically only seen in custom enclosures. The port is designed to reduce air turbulence, allowing the air to move out of the enclosure quickly and without any resistance. This results in a more powerful and efficient bass response. This enclosure is made from MDF and reinforced with internal bracing for maximum durability. It is covered in high-grade carpet for a professional appearance.A slanted back allows the box to fit into most vehicles easily.

Features:

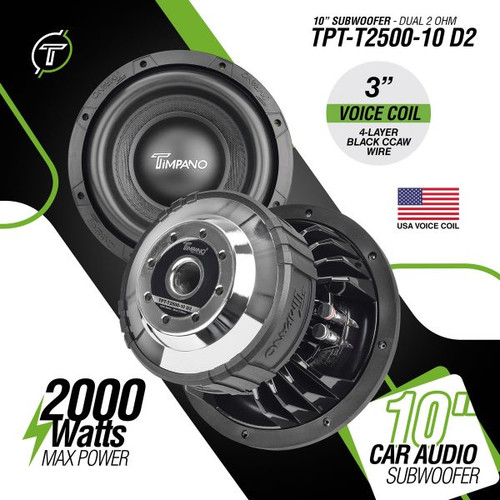

• Competition Grade Components: Its double stacked magnet motor drivers a 3″ American made 4-layer CCAW coil on a black aluminum former all coated with high temperature black adhesive. A stiff reinforced non-pressed treated paper cone & high roll foam surround was used to ensure performance on the lowest tones of bass.
• Endurance: This sub is conservatively rated of 2,500 watts max power, guaranteeing to put out some crazy output. Equipped with a robust double-layered spider with, stitched-on XL tinsel lead wires, to hold a longer play time, maximizing durability.
• High Excursion: Bassheads searching for more lows! You can look forward to deep, Low, impact bass in a small enclosure with a generous 1.85″ peak-to-peak excursion. Xmax of 23.5 mm one-way and Max Xmech of 32 mm one-way.
• TPT2500-10 D2 is a quality sub that fits in any audio enthusiast’s budget. Dual 2 Ohm American made voice coils. A chrome vented back plate and unique vented basket design enhances heat dissipation. Stitched cone reinforcement ensures long life.

Specifications:

• Power Handling:
• 2000 Watts Max Power
• 1000 Watts RMS Power
• 1 Ohm Final Impedance
• High Performance Kerf Port Box
• Slanted Back Design

Subwoofer Box Specifications:

• Subwoofer Box Style: Slanted Single 10″ Ported Design
• Internal Air Space: 1.75 ft3
• Tuning Frequency: 33 Hz
• Type of Port: Kerf Port (Flared Slot Port)
• Wood Material: 3/4 MDF
• Included Subwoofer: 1x TPT-T2500-10 D2
• Terminal Speaker Size: 8 Gauge Wire
• Overal Size (H x W x D): 14” x 20.25” x 16”
