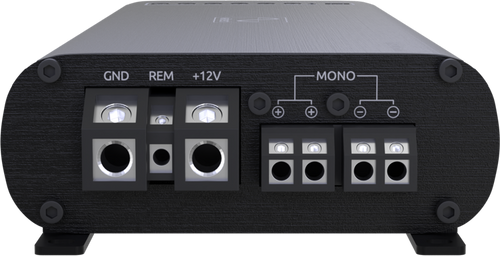

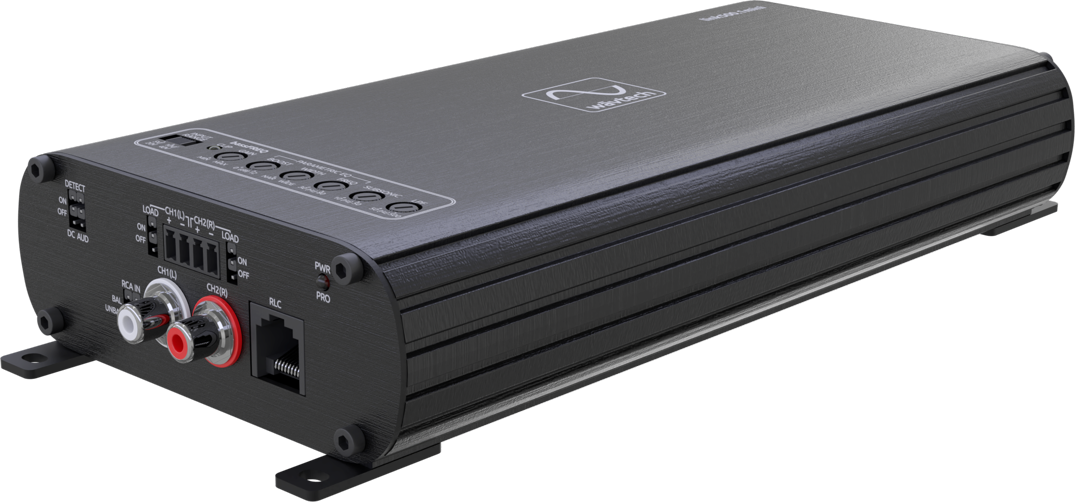

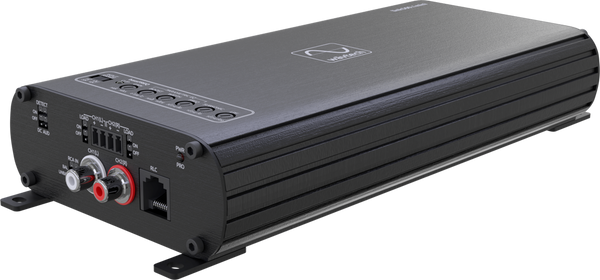

Wavtech Link500.1 Mini 500W RMS Compact Monoblock Car Amplifier

$654.95

$594.95

Description
Shipping & Returns

Description

About: Wavtech Link500.1 Mini 500W RMS Compact Monoblock Car Amplifier

The link500.1mini amplifier was engineered from the ground up to be the best possible option for adding bass to any system. The speaker level input can handle up to 40V and features our adaptive loading technology, while the RCA input accepts up to 10V, making it the perfect solution for both factory and aftermarket head units. The link500.1mini produces 500 watts RMS @ 2ohms, and its incredibly small size means it will fit almost anywhere.

The link500.1mini utilizes Wāvtech’s proprietary bassFREQ preamp. It features a 24dB per octave crossover, adjustable parametric EQ and a subsonic filter, providing the fine tuning required to get the best out of any subwoofer. Like all Wāvtech amplifiers, the link500.1mini is compatible with start/stop systems. The optional linkRC remote provides for even more system control.

Features:

500 Watt Mono Amplifier
Power Handling:

300 watts x 1 @ 4 ohms
500 watts x 1 @ 2 ohms

Dimensions: 9.2” x 4.5” x 1.65”
Fully Adjustable Parametric EQ
Variable Low-Pass Crossover (-24dB/oct)
Variable Subsonic Filter (-24dB/oct)
Remote Level Control (RLC) w/Optional linkRC
bassFREQ Bass Processor w/Parametric EQ
Active Thermal Management
Start/Stop System Compatible
Adaptive OEM Load Technology
40V Input Capability
Differential Balanced Inputs
Variable Gain Adjustment w/Clip LED
Auto Turn-On via DC-Offset or Audio Signal Detect
Locking Detachable Hi-Level Speaker Terminals
4 Gauge Power/Ground Terminals
Professional Grade Panel Mount RCA’s
Compact Aluminum Chassis w/Detachable Mounting tabs
Input Sensitivity:

SPK: 1-20Vrms, 2-40Vrms
RCA: 0.2V-5Vrms, 0.4V-10Vrms

Max Input Voltage (SPK): 40Vrms
Frequency Response: <10Hz to >500Hz (=0/-3dB)
THD+N: <1% at rated power
S/N: >81dBA (1W, 4Ω)

What's in the Box:

If you need assistance accessing this owner's manual, please give us a call.
Mono mini amplifier
4-pin terminal block (installed)
Four 3/8" screws
2 Allen keys (4mm & 2mm)
Owner's manual
