Descriptions

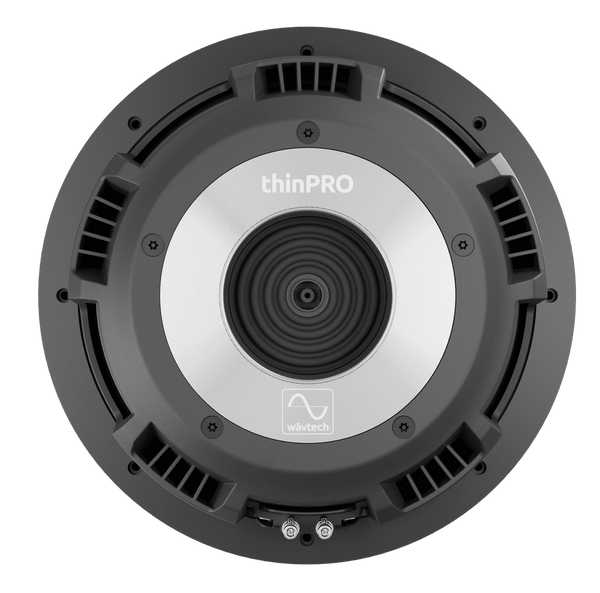

About: Wavtech ThinPRO12-2 ThinPRO 12" 750W RMS Shallow-Mount Car Subwoofer

The thinPRO12 has a mounting depth of just 3”, so it is really thin, but it does not perform like a shallow subwoofer. Our Patent Pending design allows for some big performance advantages. The dual mirrored NBR spiders and axial force transfer assembly acheive over 2-inches of peak to peak excursion. Some popular models that are 10” deep don’t have this much excursion. This is unheard of in a shallow subwoofer.

This is a shallow woofer, but it is big on performance. The 5” voice coil, available in 2 or 4 ohm, handles an impressive 750W RMS power, unheard of in a shallow subwoofer. The FEA optimized dual gap motor structure features a massive motor with double stacked strontium magnets. This maximizes flux density and control for an impressive 20mm of linear xmax. The cone is a honeycomb design, made of composite Nomex® and glass fiber. This makes it extremely strong and lightweight.

The point of a shallow subwoofer is to fit places others won’t. If it doesn’t work in a small box, what’s the point. The thinPRO12 excels in both small sealed and ported enclosures. In sealed applications, box sizes range from 0.4-1.0cu ft, with the optimum being 0.6cu ft. Ported options range from 0.8-1.5cu ft, with 1.0cu ft being the ideal choice.

Features:

• 750 Watts RMS Power Handling
• 3” Mounting Depth
• 5” Voice Coil
• 4-Layer Winding on Vented Polymide Composite Former
• Protective Grille (TP12G Sold Separately)
• Honeycomb Nomex® and Glass Fiber Cone
• FEA Optimized Dual-Gap Motor Structure
• Double-Roll NBR Surround
• Mirrored Internal NBR Spiders
• 8AWG Push Terminals
• Vented Cast Aluminum Frame
• Dimensions: 11 1/8: (282mm) Standard 12” cutout

Specifications:

• Nominal Size: 12" (300 xm)
• Nominal Impedance: 2 Ohm or 4 Ohm
• Power Handling:
• 750 Watts RMS
• 2250 Watts Peak
• Frequency Response: <Fs-300Hz
• Voice Coil Diameter: 127 mm (5")

Subwoofer Measurements:

• Overall Diameter (With Gasket)" 13-1/16" (331.5 mm)
• Mounting Depth (Normal Mount): 3.0" (76.2 mm)
• Mounting Hole Diameter (Normal/ Reverse Mount): 11-1/8" (282 mm)
• Mounting Screw Circle Diameter: 11-13/16" (300 mm)
• Front Height:
• Trim Ring Only: 15/16" (24.3 mm)
• Within Optional Grille: 2-1/8" (53.1 mm)
•  Front Excursion Clearance:
• From Cone: 1-1/8" (28.3 mm)
• From Baffle: 2-1/16" (52.3 mm)

What's in the Box:

• If you need assistance accessing this owner's manual, please give us a call.
• One 12" Subwoofer
• Rubber gasket (installed)
• Plastic trim ring (installed)
• Owner's manual
