Yorkville Sound

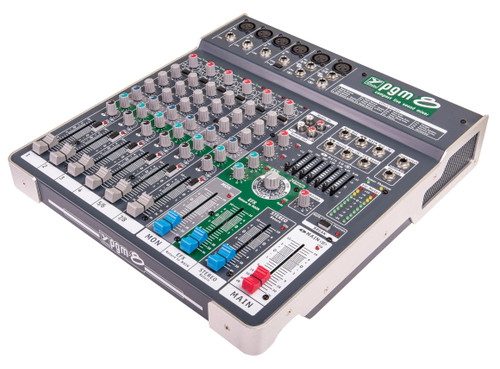

Yorkville PGM8 8-Channel Mixer with Effects

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$449.99

SKU:: PGM8
Condition:: New
Availability:: Special Order - Ships in 3-5 weeks
Shipping:: Calculated at Checkout

Yorkville PGM8 8-Channel Mixer with Effects

$449.99

Description
Shipping & Returns

Description

About: Yorkville PGM8 8-Channel Mixer with Effects

A compact analog mixer with onboard effects, the PGM8 is an all-in-one solution for live sound, installations, and presentations that require up to eight input channels (four mono, two stereo).

It offers robust connectivity with six XLR mic inputs, four mono 1/4" line inputs, and two stereo 1/4" line inputs. A Hi-Z switch on channel 4 enables the direct connection of instrument-level signals such as a guitar or bass without requiring an external DI. Each channel has a switchable high-pass filter, 3-band EQ, mute button, clip indicator, and 60 mm fader.

The 24-bit DSP engine has sixteen stereo effects including reverb, delay, modulation, and more. Channels 1 through 4 offer built-in compression, and a 7-band graphic EQ on the main output lets you fine-tune the total mix.

The PGM8 also includes multi-segment VU metering, phantom power, RCA connections to easily integrate consumer AV equipment, footswitch support to mute the onboard effects, a convenient global mute for input channels, and independent control of main, monitor, and headphone levels.

Packed with features and intuitive to operate, we like to think the PGM8 is a pretty good mixer.

Features:

4x Mono Channels (XLR / 1/4")
2x Stereo Channels (1x XLR, 2x 1/4")
Global Phantom Power
Selectable Hi-Z Instrument Input on Channel 4
Onboard Compression on Channels 1 - 4
Onboard Digital Effects with 16 Algorithms
3-Band EQ per Channel with 7-Band Master Graphic EQ
60 mm Faders

Specifications:

Number of Channels: 8
Channel EQ: 3-Band
Channel Overload Protection: Yes
Inputs

6x XLR
8x 1/4" TRS
1x Stereo RCA

Channel Features

Gain, High-Pass Filter (80 Hz)
Monitor Send
EFX Send
Pan / Balance
Mute
Clip / Mute LED

Phantom Power: Global 48 V with LED Indicator
VU Meter: 2x 10-Segment LED
Headphone Monitor Features: 1x 1/4"
Internal Effects: 16 Algorithms, 24-Bit Stereo
Auxiliary Sends: EFX (to Internal Effects and 1/4" EFX Send)
Outputs:

1x RCA
2x XLR (Main)

Master EQ -1 (type/Channels/Range -dB): 7-Band Graphic
Mixer - Frequency Response: 20 Hz - 20 kHz
Mixer THD (Main out w/ -10dB input): <0.05%
CMRR AT 60Hz (min/typ): 55 dB / 65 dB
Power Consumption (typ/max): 26 VA
Cooling: Fan
Transformer Type: SMPS
Chassis Construction: Steel
Console Lamp Connector 12V DC (BNC): NA
Other Features:

Input Compressors (Channels 1 - 4)
Hi-Z Input Switch (Channel 4
EFX Footswitch Jack

Dimensions (DWH inches): 14.2" x 12.8" x 2.8" (36 cm x 32.5 cm x 7 cm)
Dimensions (DWH cm): 14.2" x 12.8" x 2.8" (36 cm x 32.5 cm x 7 cm)
Weight (lbs/kg): 8.5 lbs / 3.8 kg
