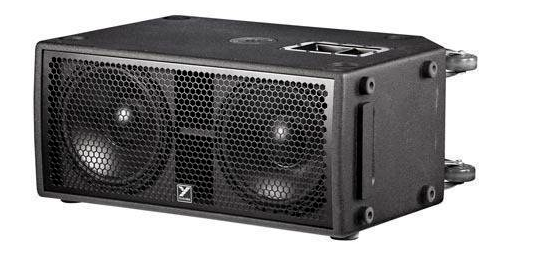

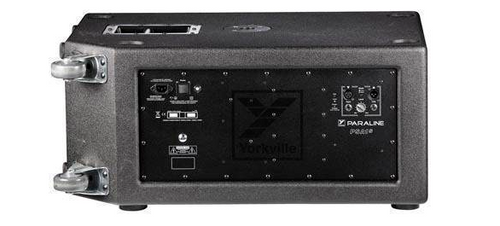

About: Yorkville PSA1S Paraline 2 x 12” Powered Subwoofer

Designed for medium-sized events, Paraline subwoofers are designed to complement PSA1 powered loudspeakers in a scalable array system. They feature bass reflex cabinets and Class D power amplifiers for efficiency and long-term reliability, and can accept both line and speaker-level signals to integrate easily into any system.

The PSA1S offers two 12-inch woofers, 2800 watts of peak power (1400 watts program), and a frequency response down to 37 Hz.

The PSA1S is also one of the first products to use Yorkville Sound’s Heavy Duty Precision Stand Adapter. With extremely thick cast aluminum walls and an extra-wide mounting plate, this precision-machined adapter provides an exceptionally stable and secure mounting system when used in combination with the SW-TUBEHD subwoofer tube.

The PSA1SF variation is also available for applications that require a flown subwoofer.

Features:

• 2800 W Peak Power (1400 W Program)
• 2x 12” Woofer with 3” Voice Coil
• Bass Reflex Cabinet Design
• Solid 15mm Birch Construction
• Heavy Duty Precision Stand Adapter
• Heavy Duty Wheels
• Also Available as PSA1SF Flyable Version
• Made in Canada

Specifications:

• System Type: Powered Subwoofer
• Power Rating: 2800 W Peak (1400 W Program)
• Max SPL: 135 dB Peak (129 dB Continuous)
• Frequency Response (Hz +/- 3dB): 100 Hz
• Crossover Frequency: Fixed @ 100Hz
• Cabinet Configuration: Bass Reflex Cabinet
• LF Driver(s): 2 x 12" Ceramic with 3" Voice Coil
• LF Impedance (Ohms): 2 x 4 Ohm Load
• LF Power Amplifier (Watts): Class D
• Power Consumption (typ/max): 210 VA / 440 VA
• Inputs:
• 1 x XLR Input
• 1 x 1/4" Input
• ControlsL Line / Speaker Mode
• Master Volume Control: Level
• Link In/Out (type / configuration):
• 1 x XLR
• 1 x 1/4"
• LED Indicators: Clip, Limit, Power
• Wheels: 2 (Rear Tilt-back)
• Bar Handles: 2 (1 x Each Side)
• Flyable Version: PSA1SF (4x EYEBOLT3/8A Required)
• Pole Mount Adapter (1 3/8): 1 (Side)
• Enclosure Materials: 15mm Birch
• Covering / Finish: Paint
• Dimensions (D x W x H): 22.8” x 14” x 32” (57.8 cm x 35.6 cm x 81.3 cm)
• Weight: 120 lbs / 54.6 kg

**Specifications subject to change without notice
