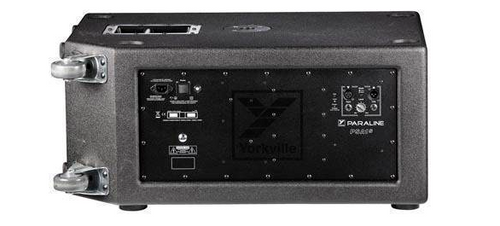

About: Yorkville PSA1SF Flyable Parasource 2x12'' Powered Subwoofer

This is the Flyable version of the Parasource 212 subwoofer. 3/8" flypoints are located on the top and sides that accept the EYEBOLT3/8A.

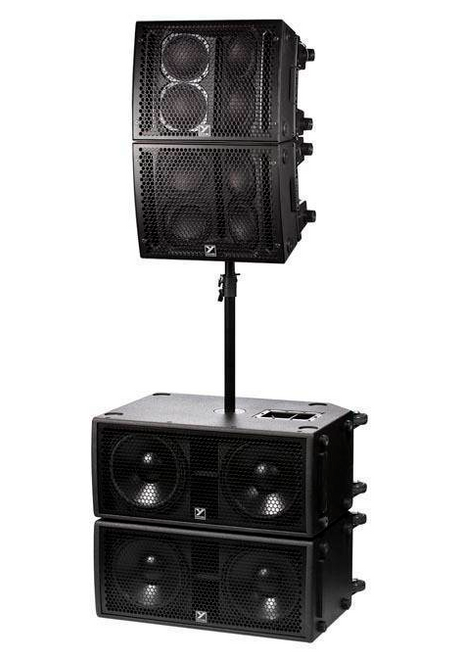

The 1400-watt dual 12-inch active PSA1S bass reflex subwoofer is the ideal companion sub for the PSA1 full range loudspeaker system. Solid 15mm birch plywood cabinet construction and an integrated all-metal pole-mount adaptor make the PSA1S the perfect platform for stacking PSA1 cabinets in a scalable array system. Compact design, heavy-duty wheels and handles ensure the PSA1S can easily be handled by a single operator for economical system set-up.

Efficient Class-D power amplifier design provides unmatched long-term reliability in the field. Cable of direct connection to any audio source (including speaker level input) the PSA1S can be easily integrated in to virtually any PA application, making it one of the most versatile active subwoofer solutions Yorkville Sound currently offers.

Features:

• Ultra High Performance Compact Active Subwoofer
• High Quality Dual 12-inch Speaker Components
• Bass Reflex Design
• Ideal Companion Subwoofer for PSA1 System
• Solid 15mm Birch Cabinet Construction
• Integrated Pole Mount Adaptor & Heavy Duty Wheels
• A total of 8 3/8" flypoints, 4 on top & 2 along each side
• Made in Canada

Specifications:

• Active or Passive: Active
• Onboard Power: 1400 Watts Cont. Pre-Clipping
• Amplifier Type: Class D
• Max SPL: 129dB Continuous, 135dB Peak
• Frequency Response +/-3db: 37Hz-100Hz
• Amplifier Low-Pass Frequency: 100Hz fixed
• Configuration: 2x12-inch Bass Reflex
• LF Drivers: 2x12-inch Ceramic with 3-inch VoiceCoils
• Load Impedance: 2x4 Ohms
• Flypoints: 3/8-inch, reinforced, 4 on top & 2 per side,
• Enclosure Material: 15mm Birch
• Baffle Material: 15mm Birch
• Covering / Finish: black paint
• Dimensions (DWH xbackW, inches): 22.75 x14 x 32
• Dimensions (DWH xbackW, cm): 57.8 x 35.6 x 81.3
• Weight: 75lbs (34.2 kg)
