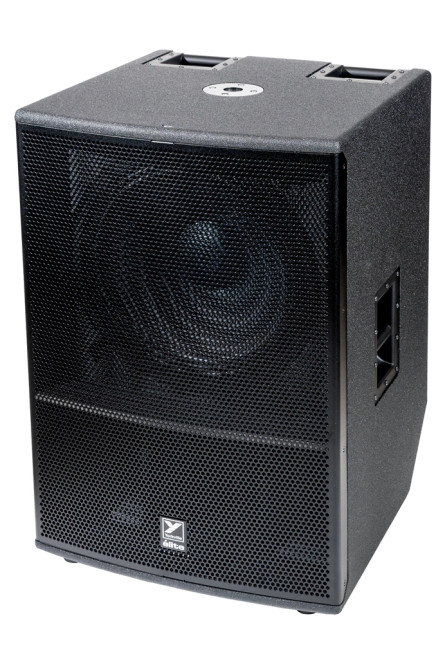

About: Yorkville Sound ES18P 18" 1600-Watt Powered Subwoofer

The ES18P active subwoofer continues the tradition of superior sound, performance, and reliability established by the classic Yorkville LS801P. This next-generation update offers even more power and earth-moving bass projection from a custom-engineered 18-inch speaker.

The car-friendly enclosure was meticulously designed for sound and mobility, and is over 30% lighter than the 21-inch ES21P while preserving the series’ signature punch. Tilt-back wheels and top/bottom/side bar handles improve maneuverability and stacking.

Suitable for touring or fixed installations, the cabinets are constructed of 15 mm 11-ply Baltic birch, with rugged internal bracing to reduce resonance and increase durability, and finished with anti-resonant metal grilles.

With 3200 watts of peak power, proprietary DSP-based limiters, three DSP-based voicing options, link ports to easily connect multiple ES Series speakers, and Bluetooth® control using the free companion app, the ES18P blends classic performance, modern convenience, and uncompromising sound.

Features:

• 3200 W Peak Power (1600 W Program)
• Custom-Designed 18” Woofer with 4” Voice Coil
• Proprietary DSP-Based Limiters
• 3 DSP-Based Voicing Modes (Punchy, Smooth, Deep)
• iOS and Android App for Added Subwoofer Control
• Made in Canada

Specifications:

• System Type: Rear Horn Loaded Powered Subwoofer
• Power Rating: 3200 W Peak (1600 Watts Program)
• Max SPL: 140 dB Peak (134 dB Continuous)
• Frequency Response (Hz +/- 3dB): 43 Hz - 150 Hz
• Driver Configuration: 18"
• LF Driver (s): 18" Cast Frame Woofer with 4" Voice Coil

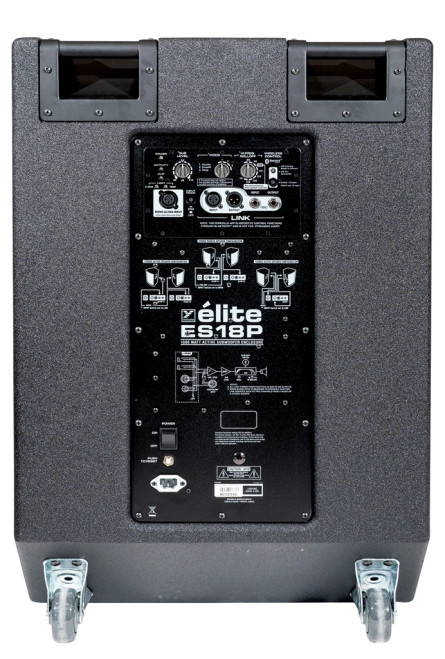

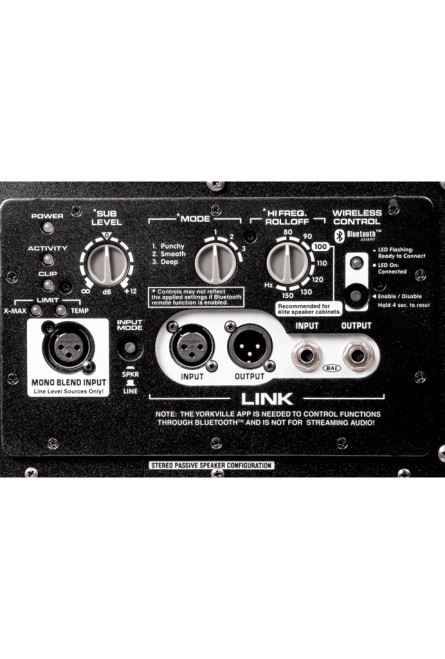

• Outputs: 1x 1/4" Link Output, 1x XLR Link Output
• Inputs - 1/4 IN Jacks: 1x Link Input
• Inputs – XLR: 1x XLR Input, 1x XLR Mono Blend Input
• Level Controls: Master - Sub Level
• LED Indicators: Power, Activity, Protection (Clip, X-Max, Temp)
• Other Controls / Features: Mode Control (Punchy, Smooth, Deep), High Frequency Rolloff (10 Hz Steps from 80 Hz to 150 Hz
• Wheels: 2 (Rear Tilt-back)
• Bar Handles: 6 (2 Top Rear Edge, 2 Bottom, 1 Left Side, 1 Right Side)
• Pole Mount Adapter (1 3/8): 1 (Top)
• Enclosure Materials: 15 mm (5/8") 11-ply Russian Birch
• Grille: Perforated Metal
• Covering / Finish: Black Ultrathane Paint
• Dimensions (DWH): 24" x 22.8" x 34.7" (61 cm x 58 cm x 88 cm)
• Weight: 137 lbs / 62 kg
