Descriptions

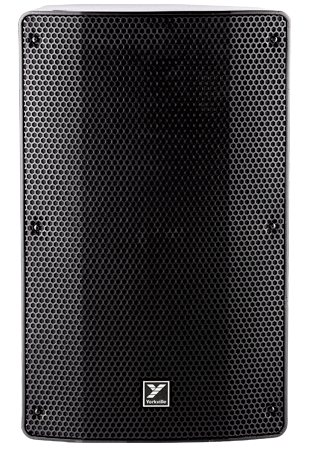

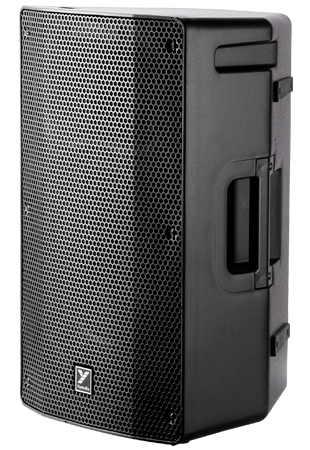

About: Yorkville YXL12P YXL 12” Powered Bluetooth Loudspeaker

The YXL series is Yorkville Sound’s most affordable and versatile speaker lineup. Designed with the DJ and musician in mind, each YXL powered speaker can be used vertically on the floor or a speaker stand, or wedged as a stage monitor.

YXL powered speakers feature an advanced acoustic package, a 3-channel mixer, Bluetooth® audio streaming, and three selectable voicing modes. With powerful features and simple, intuitive controls, YXL delivers clear sound, exceptional value, and the best price-to-performance ratio of any Yorkville Sound PA series.

Features:

• 1000 W Peak Power (500 W Program)
• 12” Woofer with 2” Voice Coil
• 1” Compression Driver
• Integrated 3-Channel Mixer with 2x 1/4", 2x XLR, and 1x 1/8" Inputs
• Bluetooth® Streaming
• Concert, Club, and Monitor Voicing Modes
• Polypropylene Cabinet Construction

Specifications:

• System Type: Powered Loudspeaker
• Power Rating: 1000 W Peak (500 W Program)
• Max SPL: 126 dB Peak
• Frequency Response (Hz +/- 3dB): 47 Hz - 16 kHz
• Dispersion (H x V): 90° x 40°
• Crossover Frequency: 1.6 kHz
• HF Program Power (Watts): 100 W Peak (50 W Program)
• HF Horn: Integrated into Baffle
• LF Driver(s): 12” with 2” Voice Coil
• LF Program Power(Watts): 900 W Peak (450 W Program)
• HF Amplifier Type: Class A/B
• LF Amplifier Type: Class D
• Cooling Scheme: Speed-Controlled Fan
• In / Out Connections: 1x Main In (XLR), 1x Link (XLR)
• Channel 1 Input: 1x XLR, 1x 1/4" (Line)
• Channel 1 Controls: Level Control
• Channel 2 Input: 1x XLR, 1x 1/4" (Instrument)
• Channel 2 Controls: Level Control
• Channel 3 Input: 1/8", Bluetooth® Streaming
• Channel 3 Controls: Level Control
• Level Controls: 3x Channels, 1x Master
• EQ Controls: Concert, Club, and Monitor Voicing Modes
• Limiter: Multiband Excursion, RMS, Rail
• Other Controls / Features:
• Sub Mode HP Filter
• Mixer In / Out
• Stereo / Mono Out
• 3.5mm Aux In
• Bluetooth Streaming
• Bar Handles: 2 (1x Side, 1x Back)
• Flypoints: 2 (2x Top, 1x Pullback)
• Flying Hardware: M8 Metric Threading
• Pole Mount Adapter (1 3/8): Dual Angle (1x Bottom)
• Enclosure Materials: Polypropylene
• Dimensions (D x W x H): 13.5” x 14” x 23” (34 cm x 35.5 cm x 58.5 cm)
• Weight: 38 lbs / 17.2 lbs
