Descriptions

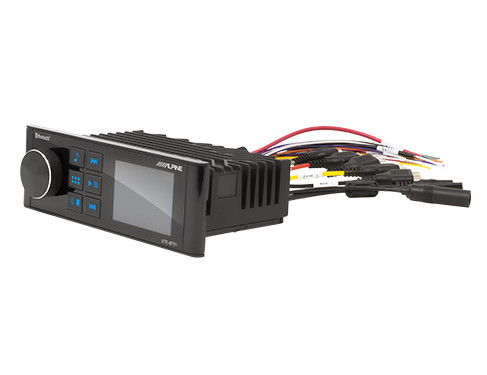

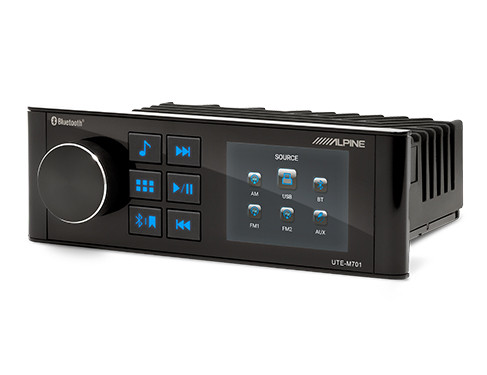

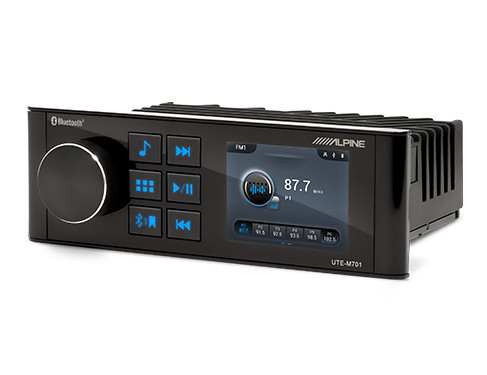

About: Alpine UTE-M701 Marine Digital Media Receiver with 2.8" Full-color TFT Display

The command center of your marine audio system, delivering powerful sound, wireless streaming, and durability for every moment on the water.

Your Marine Command Center

More than just a receiver, the UTE-M701 is the command center of your marine audio system. The built-in 6-channel amplifier delivers clean, powerful sound, while dual-zone control lets you tailor the experience across your boat—keep it relaxed at the helm while turning it up at the stern. With flexible pre-outs and onboard tuning, it’s easy to build and customize your system to match your time on the water.

Built for Life on the Water

From early morning launches to long days under the sun, the UTE-M701 is built to handle it all. With an IP66 waterproof front panel and rugged IP55-rated chassis, it stands up to splashes, spray, and harsh marine environments. Tested to ASTM standards for salt, fog, and UV exposure, it resists corrosion and sun damage—delivering reliable performance season after season, no matter where the water takes you.

Features:

• Built for sun, salt, and open water conditions
• Waterproof: IP66 front panel, IP55 chassis
• Salt & fog resistant (ASTM B117)
• UV resistant (ASTM G154)
• Waterproof harness connectors
• Built-in 6-channel amplifier
• Dual-zone audio control (helm & cockpit)
• 2.8” full-color TFT display (sunlight readable)
• 5-level dimmable display illumination
• Easy-to-use rotary control and buttons
• Bluetooth® 5.2 streaming & hands-free calling
• Seamless smartphone connectivity for iPhone and Android devices
• Integrated AM/FM tuner for dependable radio reception on the water
• USB-C and AUX playback options

Specifications:

• Waterproof Rating (Front Panel): IP66
• Water Resistance (Chassis): IP55
• Salt & Fog Resistance: ASTM B117 Tested
• UV Resistance: ASTM G154 Tested
• Amplifier Power: 17W RMS x 6 Channels
• Pre-Out Voltage: 6 Channel x 4V (RCA)
• Subwoofer Output: 2 Channel x 4V (RCA)
• Zone Control: Dual-Zone Audio Outputs
• Bluetooth®: Version 5.2 (Hands-Free & Audio Streaming)
• Radio Tuner: AM/FM
• Inputs: USB-C, RCA AUX, 3.5mm AUX (SWC)
• Display Size: 2.8” Full-Color TFT
• Display Resolution: 240 x 320 pixels
• Display Type: Non-Touchscreen

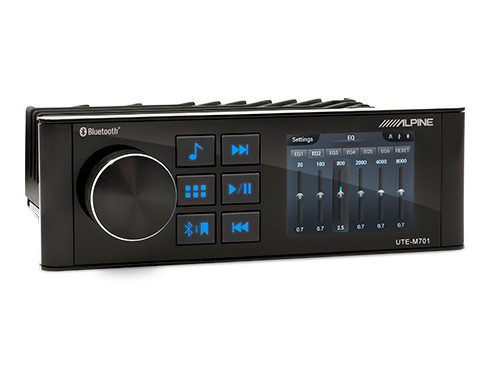

• EQ: 6-Band Parametric EQ
• Subwoofer Control: Adjustable Level Control
• Dimensions (Faceplate): 2.5” H x 7.5” W x 1.4” D
• Dimensions (Chassis): 1.75” H x 6.25” x 4” D
• MFi certified for Apple devices

What's in the Box:

• Marine digital media receiver (15A fuse)
• Wiring harness
• Zone 2 harness
• 5' USB-C cable
• Mounting bracket
• 2 Endcaps
• Gasket
• 4 Screws
• QR Code for Owner's Manual
