6% Off

Art Pro Audio CX311 2-Way Crossover with Subwoofer Out

ART Pro Audio

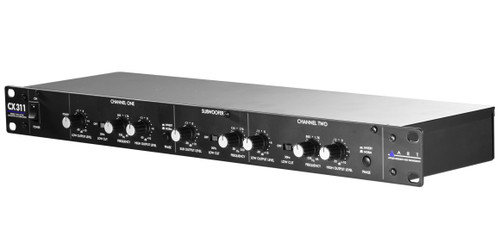

Art Pro Audio CX311 2-Way Crossover with Subwoofer Out

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$149.00

$159.00

6% Off

SKU: CX311

Condition: New

Availability: Special Order - Usually Ships in 3-4 Weeks

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

About: Art Pro Audio CX311 2-Way Crossover with Subwoofer Out

The CX311 is a stereo 2-way crossover with a dedicated subwoofer section.

It features Linkwitz-Riley filters to guarantee in-phase outputs at all frequencies. This ensures proper acoustic summing of common signals from adjacent drivers in the crossover region.

Each channel has discrete controls for low and high output levels, a variable crossover frequency from 250 Hz to 6 kHz, a switchable low-cut filter to eliminate rumble, and a switchable phase invert.

Both input channels are combined in the subwoofer section, where you can set the frequency below which the summed signal is sent to the subwoofer output.

The rear panel has XLR and 1/4 TRS connections for the inputs, and 1/4 TRS connections for all outputs.

Packed into a fully shielded 1U steel enclosure, the CX311 is an ideal crossover solution for stereo PA systems with a subwoofer.

Features:

2-Way Stereo Operation
250 Hz - 6 kHz Crossover Range
Subwoofer Section with Independent Level and Frequency Controls (50 Hz - 250 Hz)
Balanced XLR and 1/4" TRS Inputs
Balanced 1/4" TRS Outputs
Switchable 30 Hz Low Cut Filters and Phase Invert
1U Rackmount

Specifications:

Input Connections: 2x XLR, 2x 1/4" TRS (Balanced)
Output Connections: 5x 1/4" TRS (Balanced)
Input Impedance: 100 kΩ
Output Impedance: 220Ω
Maximum Input Level: +21 dBu
Maximum Output Level: +21 dBu
Frequency Response: 10 Hz - 40 kHz (+/- 0.5 dB)
Crossover Frequency Range: 250 Hz - 6 kHz
Crossover Filter Type: Fourth-Order Linkwitz-Riley, 24 dB / Octave, State-Variable
Subwoofer Filter Type: Two-Pole Butterworth, 12 dB / Octave
Subwoofer Frequency Range: 50 Hz - 250 Hz
Dynamic Range: >114 dB
Signal to Noise Ratio: >95 dB Ref: 0 dBu 20 Hz - 20 kHz, Unweighted
CMRR: >75 dB (Typical @ 1 kHz)
Total Harmonic Distortion: <0.01% (20 Hz - 20 kHz, 0 dBu)
Power Requirements:

110 - 125V AC, 50 - 60 Hz, 15W (USA)
Export Units Configured for Country of Destination

Dimensions:

1.75" x 19" x 5.5"
4.4 cm x 48.3 cm x 14 cm

Weight: 4.85 lbs / 2.2 kg
