Descriptions

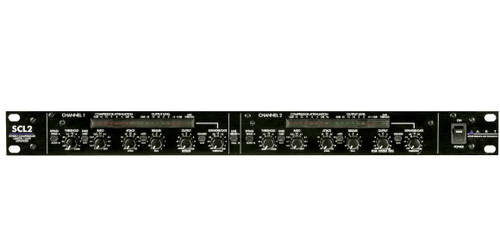

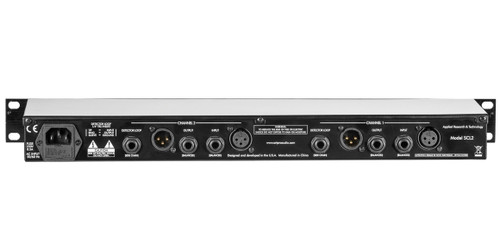

About: Art Pro Audio SCL2 2-Channel Compressor / Limiter / Expander / Gate

"Despite its wide-ranging controls, I found it pretty difficult to get into trouble with the ART SCL2. Even at its more extreme settings, it still managed to sound controlled and purposeful." - Sound on Sound

The SCL2 is a comprehensive dynamics processor in a 1U rackmount format. It offers two channels with VCA compression, limiting, expansion, gating, and sidechain inputs. Dual LED meters indicate gain reduction, output level, and gate threshold.

Despite this versatility, a streamlined interface makes it easy to dial in the right settings for any task. Each channel has independent switches for bypass, hard-knee or soft-knee compression, manual or automatic control of attack and release, and to toggle between the expander or gate modes. A global switch changes between dual or linked stereo operation.

Designed for live sound, studio, and voiceover applications, the SCL2 is sonically transparent, packed with features, and simple to use.

Features:

• Dual Mono or Linked Stereo Operation
• Selectable Hard-Knee or Soft-Knee Compression
• Selectable Expander / Gate Per Channel
• Manual or Automatic Attack and Release
• Sidechain Inputs
• Gain Reduction and Output Level Meters

Specifications:

• Inputs: 1/4" TRS Balanced
• Outputs: 1/4" TRS Balanced
• Input Impedance: 10k Ω
• Output Impedance: 200 Ω (Balanced), 100 Ω (Unbalanced)
• Maximum Input Level: +20 dBu Balanced
• Maximum Output Level: +20 dBu Balanced
• Frequency Response: 10 Hz to 40 kHz, +/- .5 dB
• Total Harmonic Distortion: <0.06% (Typical)
• Power Requirements: 120 V 60 Hz/50H, 10 W Max.
• Dimensions (DWH): 6" x 19.0" X 1.75" (15.2 cm x 48 cm x 4.5 cm )
• Weight: 4.2 lbs (1.9 kg)
