Descriptions

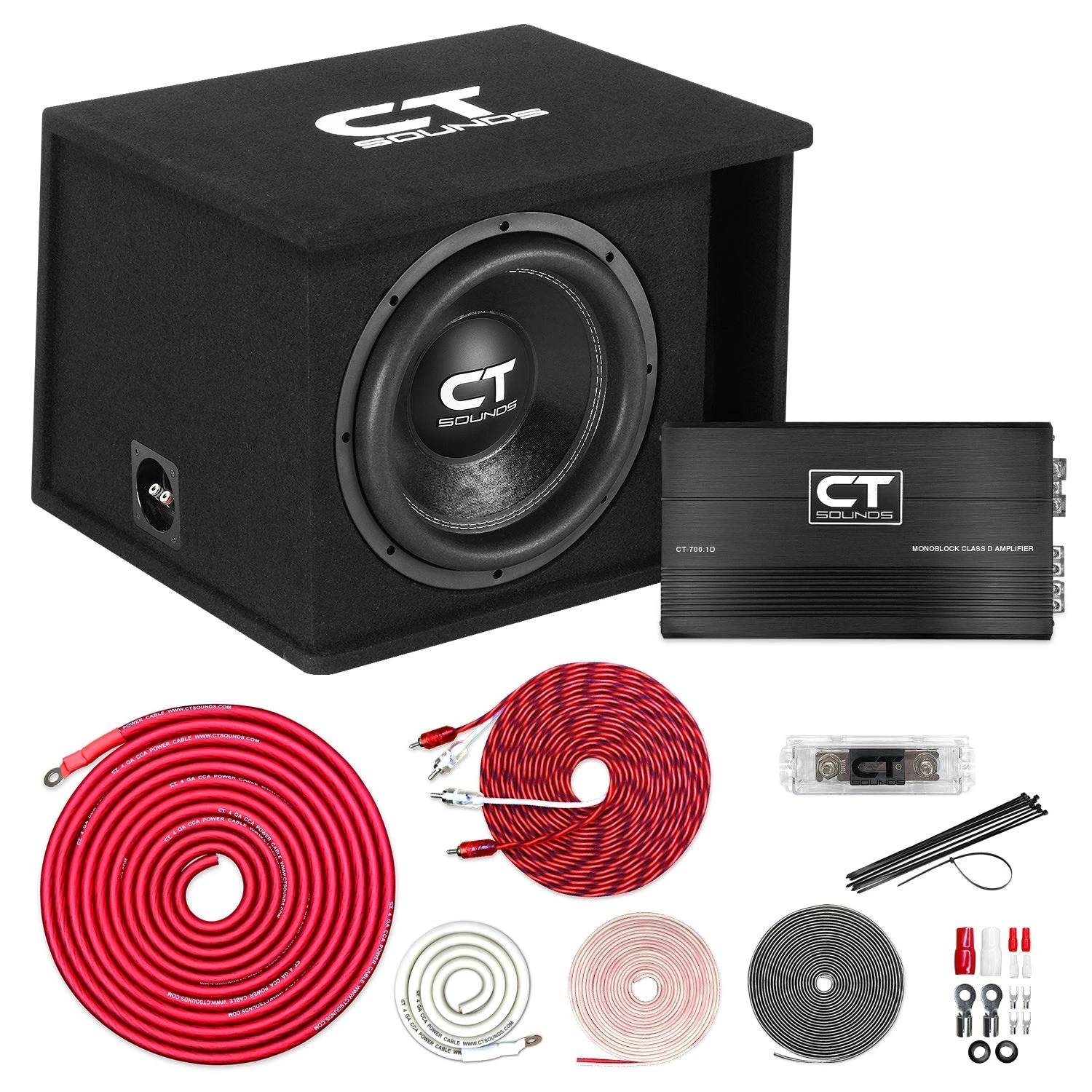

About: CT Sounds BP-TROPO-1X12D2 Complete Bass Package with Sub Box, Amp, and Wiring Kit

The subwoofer box was designed in-house using the Thiele/Small Parameters of the enclosed subwoofer in combination with advanced software to determine the most optimal airspace and port area for peak subwoofer performance. What’s more, the construction showcases a level of craftsmanship typically reserved for custom enclosures. The unique high-performance kerf-port allows the air pressure to exit smoothly and quickly creating extreme levels of responsive bass output. The interior port wall features a 3-mm rabbet groove that runs 80-mm into the port allowing the premium black carpet to lay flush with zero-edge providing a smooth exit for the air and eliminating port noise.

Product Highlights:

• # of Subwoofers: 1
• Rated Power of Loaded Enclosure: 650 Watts RMS | 1300 Watt Max
• Rated Power of Amplifier: 700 Watts RMS at 1 Ohm
• Final Impedance of Loaded Enclosure: Pre-Wired To 1 Ohm Final Impedance

General Specifications:

• Product Type: Complete Bass Package
• Subwoofer Size: 12"
• Included Loaded Enclosure: TROPO-1X12D2
• Included Amplifier: CT-700-1D
• Included Wiring Kit: AMPKIT-4GA-PRO
• RMS Power: 650 Watts
• MAX Power: 1300 Watts
• Final Impedance Load: 1 Ohm

Loaded Enclosure Specifications:

• # of Subwoofers: 1
• Included Subwoofer(s): TROPO-12-D2
• Subwoofer Box Style: Kerf Port
• Terminal Cup Size: 8 Gauge
• Wood Material: MDF
• Front Baffle Thickness: 1.25"
• Cutout Diameter: 11.08"
• Mounting Depth: 13.05"
• Net Volume: 1.50 ft³
• Tuning Frequency: 34 Hz

Amplifier Specifications:

• RMS Power @ 1 Ohm: 700 Watts x 1-Channel (14.4v)
• RMS Power @ 2 Ohm: 380 Watts x 1-Channel (14.4v)
• RMS Power @ 4 Ohm: 200 Watts x 1-Channel (14.4v)
• Recommended Fuse: 70A
• Operating Voltage: 8.2v - 16v
• Minimum Impedance: 1 ohm

Wiring Kit Specifications:

• Power Wire: 17' 4GA CCA (Red)
• Ground Wire: 3' 4GA CCA (White)
• Speaker Wire: 17' 14GA CCA (Red/White)
• RCA Cable: 17' OFC (Red/White)
• Remote Wire: 17' OFC (Black Clear)
• Fuse Size: 100A
• Accessories: Ring Terminals, Spade Terminals, PVC Terminal Jackets, Rubber Grommets, Zip Ties

Loaded Enclosure External Dimensions:

• Length: 20.00"
• Height: 15.00"
• Depth (Bottom): 18.81"
• Depth (Top): 16.97"

Amplifier External Dimensions:

• Length: 11.00"
• Height: 5.63"
• Depth (Bottom): 2.19"

What's Included:

• x1 TROPO-1X12D2
• x1 CT-700-1D
• x1 AMPKIT-4GA-PRO
