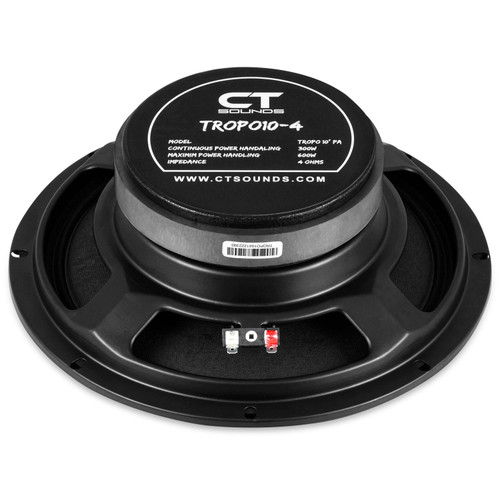

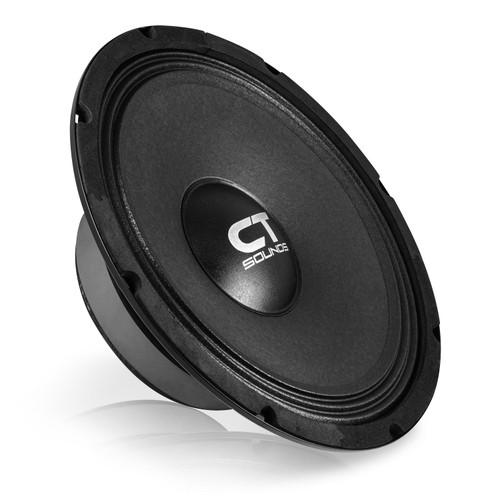

About: CT Sounds TROPO10-4 10" 300W RMS Shallow Midrange Speaker

The CT Sounds TROPO10-4 is a 10” shallow midrange pro audio speaker designed to add mid-bass powerful enough to keep up with the loudest of SPL applications. The loudspeaker features a 2-inch copper-clad aluminum (CCAW) voice coil which performs better than copper voice coils at middle to high frequencies. CCAW is also lighter than copper wire, therefore, allowing this speaker to have a higher sensitivity and be louder than copper wire at certain frequencies.

The 10” midrange speaker has a 3.07” mounting depth allowing it to fit in extremely tight spaces without having to make major modifications. If you want to cruise 100 mph down the highway with the windows down and still have your music heard over the wind noise, then look no further than the CT Sounds TROPO10-4 10” shallow midrange speaker.

Product Highlights:

• RMS Power: 300 Watts
• MAX Power: 600 Watts
• Speaker Type: 10" Midrange Speaker
• Voice Coil Configuration: Single 4-Ohm

Specifications:

• Speaker Size: 10"
• Speaker Type: Midrange Speaker
• Voice Coil Configuration: Single 4-Ohm
• RMS Power (per speaker): 300W RMS
• MAX Power (per speaker): 600W MAX
• Voice Coil Size: 2.00"
• Voice Coil Winding Material: CCAW
• Voice Coil Former Material: Kapton
• Sensitivity: 95 dB
• Frequency Response: 120 Hz - 5,000 Hz

T/S Parameters:

• Qms: 3.39
• Qes: 0.58
• Qts: 0.5
• Fs: 56.60 Hz
• Cms: 339.47 m/N
• Md: 14.50 g
• Mms: 23.30 g
• Sd: 346.36 cm²
• Re: 3.00 Ω
• Le: /
• Bl: 6.57 Tm
• Vas: 57.83 L

Mounting Info:

• Overall Height: 3.37"
• Overall Diameter: 10.12"
• Cutout Diameter: 9.29"
• Magnet Height: 1.33"
• Magnet Width: 5.51"
• Mounting Depth: 3.07"
• Screwhole Diameter: 9.76"
