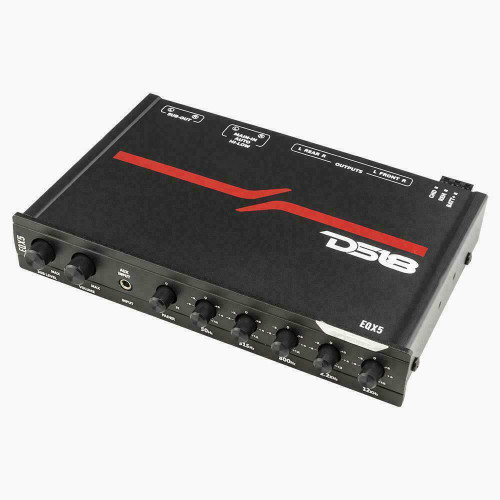

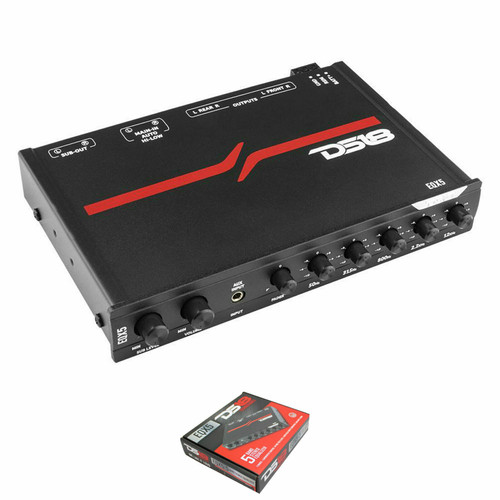

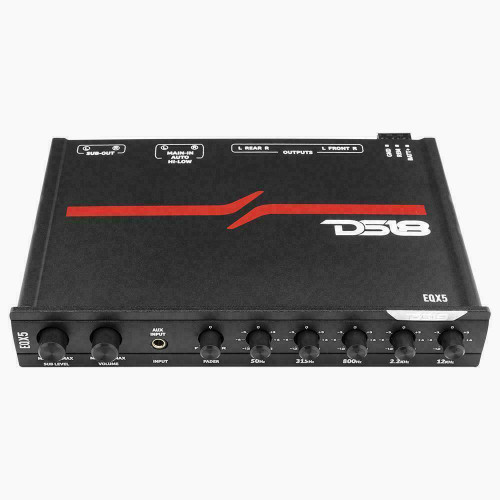

About: DS18 EQX5 High Volt 5-Band Equalizer with High Level Input

The EQX5 allows you to take complete control of your audio system, pushing it past its limits with unparalleled precision and clarity. This high-strength 5-band stereo equalizer/crossover is the upgrade needed to achieve your audio dreams. Harnessing the power of its five bands, including frequencies of 50Hz, 315Hz, 800Hz, 2.2KHz, and 12KHz, the EQX5 ensures the most precise audio reproduction. With adjustable frequencies ranging from -12 to +12dB (-15 to +15dB for subwoofer frequencies), you have the power to fine-tune your sound to perfection.

The EQX5 offers three stereo RCA outputs, dedicated to driving your front, rear, and subwoofer audio amplifiers. Take control of your audio experience with separate controls for master volume, subwoofer volume (sub level), front/rear fade, and the choice between main or auxiliary inputs. The integrated speaker Hi-Level Converter ensures low-level RCA output for seamless integration with your existing system.

DS18 understands the importance of delivering audio with unmatched precision. That's why the EQX5 offers an extended frequency response from 20Hz to 30KHz, boasting exceptional 100 dB signal-to-noise performance. The nickel-plated RCA connectors guarantee the best audio signal output, ensuring that every note resonates with utmost clarity.

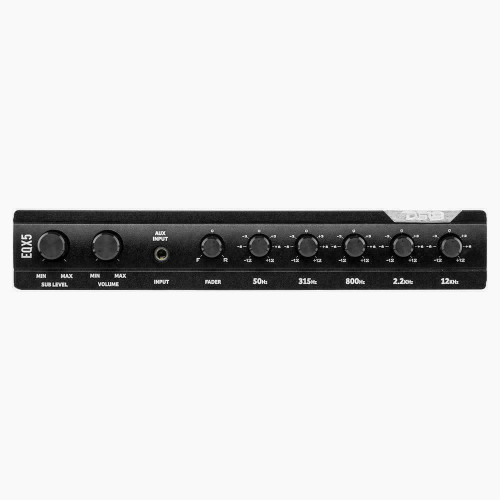

The EQX5 can be mounted next to your source unit or discreetly underneath your dash, thanks to the included mounting brackets. This ensures easy access to the front panel controls right from the driver's seat, giving you full command of your audio system at your fingertips. It's time to shape your sound exactly how you envision it.

Product Highlights:

• 1/2 DIN 5 Band Graphic Equalizer
• MAX Output: 8 Volts
• Subwoofer Level Control
• Fader Control L/R
• High Level & Aux Inputs
• Master Volume Control

Features:

• Operating Voltage: 11-15V
• Subwoofer Output: Yes (8V)
• Audio Controls: Subwoofer Level, Master Volume, Fader
• Audio Inputs: Main (RCA), Auxiliar (3.5mm jack)
• RCA Type: Nickel-Plated
• Housing Material: Metal / Aluminum
• Adjustments: No
• Extra Features: Blue Backlit
• Hi-Level Speaker Input: Yes
• Auto Turn-on: No
• Remote Turn-on Input/Output: Yes Input
• Color / Finish: Satin Black

Specifications:

• Type of Equalizer: Graphic
• Number of bands: 5
• Frequency Point HZ: 50, 315, 800, 2.2k, 12k
• Boost/Cut: 12dB (15dB Subwoofer Frequency)

Crossover Section:

• Passive Crossover Ways / Type: 1 (LPF) (Subwoofer Ch)
• Frequency Crossover point: 120Hz (fixed)
• Cut-Off Slope:12dB/Oct

Audio Specifications

• S/N Ratio: 100dB
• THD: 0.005%
• Input Sensitivity: 50mV-3V
• Input Impedance: 20K ohm
• Output Voltage: 8V
• Output Impedance: 2K ohm
• Head Room: 20dB
• Stereo Separation
• 82dB @ 1Khz
• Frequency Response
• 10Hz-30Khz

Measurements:

• Overall Length: 7" (178 mm)
• Overall Depth: 4.4" (112 mm)
• Overall Height: 1.18" (30 mm)
• Gross Single Unit Weight: 1.5lb
• Single Unit Box Dimensions W x L x H): 8.25" x 6.75" x 1.75"
