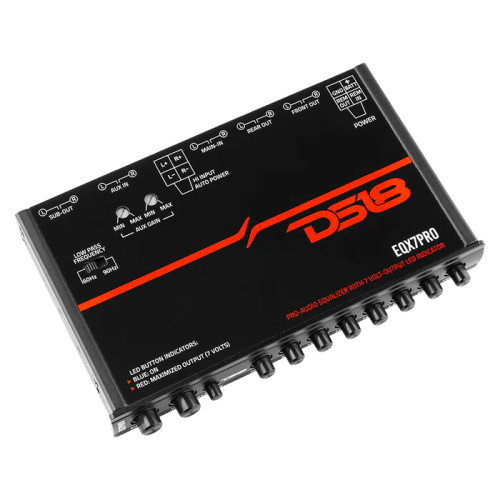

About: DS18 EQX7PRO High Volt 7-Band Equalizer with High Level Input, Auto Turn On and High Volt Led Indicator

The EQX7PRO allows you to take complete control of your audio system, pushing it past its limits with unparalleled precision and clarity. This high-strength 7-band stereo equalizer/crossover is the upgrade needed to achieve your audio dreams. Harnessing the power of its seven bands, including frequencies of 50Hz, 125Hz, 320Hz, 750Hz, 2.2KHz, 6KHz, and 16KHz, the EQX7PRO ensures the most precise audio reproduction. With adjustable frequencies ranging from -12 to +12dB (-15 to +15dB for subwoofer frequencies), you have the power to fine-tune your sound to perfection. Each band features a 7v output LED indicator, lighting a path for your musical journey like never before.

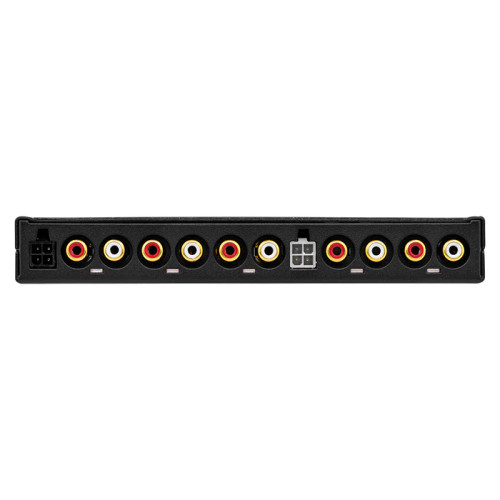

The EQX7PRO offers three stereo RCA outputs, dedicated to driving your front, rear, and subwoofer audio amplifiers. Take control of your audio experience with separate controls for master volume, subwoofer volume (sub level), front/rear fade, and the choice between main or auxiliary inputs. The integrated speaker Hi-Level Converter ensures low-level RCA output for seamless integration with your existing system. With the Auto Turn-On feature, the EQX7PRO activates automatically when connected directly to the factory radio source, eliminating the need for manual intervention.

DS18 understands the importance of delivering audio with unmatched precision. That's why the EQX7PRO offers an extended frequency response from 20Hz to 30KHz, boasting exceptional 100 dB signal-to-noise performance.

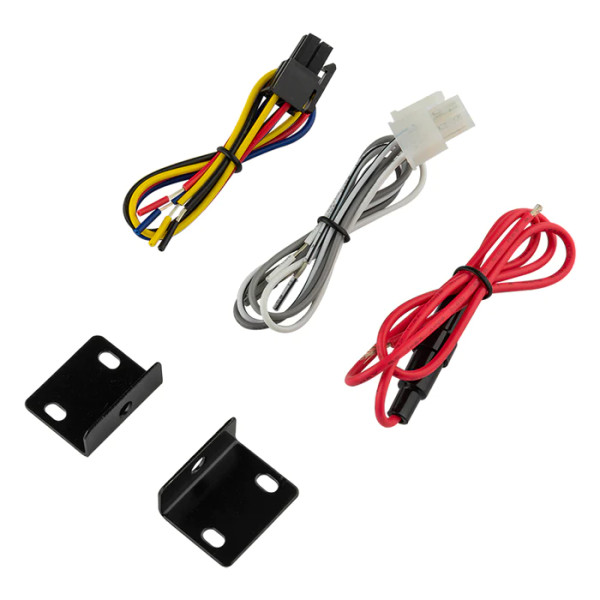

The EQX7PRO can be mounted next to your source unit or discreetly underneath your dash, thanks to the included mounting brackets. This ensures easy access to the front panel controls right from the driver's seat, giving you full command of your audio system at your fingertips. It's time to shape your sound exactly how you envision it.

Product Highlights:

• 1/2 DIN 7 Band Graphic Equalizer
• MAX Output: 8 Volts
• 7 Volt-Output LED Indicator
• Subwoofer Level Control
• High Level & AUX Inputs
• Master Volume Control

Specifications:

• Type of Equalizer: Graphic
• Number of bands: 7
• Frequency Point HZ: 50, 125, 320, 750, 2.2k, 6k, 16k
• Boost/Cut: 12dB (15dB Subwoofer Frequency)

Crossover Sections:

• Passive Crossover Ways / Type: 1 (LPF) (Subwoofer Ch)
• Frequency Crossover point: 60/120Hz Selectable
• Cut-Off Slope: 12dB/Oct

Audio Specifications:

• S/N Ratio: 100dB
• THD: 0.005%
• Input Sensitivity: 50mV-3V
• Input Impedance: 20Kohm
• Output Voltage: 8V
• Output Impedance: 2Kohm
• Head Room: 20dB
• Stereo Separation: 82dB @ 1Khz
• Frequency Response: 10Hz-30Khz

Features:

• Operating Voltage: 11-15V
• Subwoofer Output: Yes (9V)
• Audio Controls: Subwoofer Level, Master Volume, Fader
• Audio Inputs: Main (RCA), Auxiliar (RCA)
• RCA Type: Gold-plated
• Housing Material: Metal / Aluminum
• Adjustments: Aux Input Gain
• Extra Features: Blue Backlit with Red 7V output indicator
• Hi-Level Speaker Input: Yes
• Auto Turn-on: Yes (Hi-Level input)
• Remote Turn-on Input/Output: Yes Input and Output
• Color / Finish: Satin Black

Measurements:

• Overall Length: 7" (178 mm)
• Overall Depth: 4.4" (112 mm)
• Overall Height: 1.18" (30 mm)
• Gross Single Unit Weight: 1.85 lb
• Single Unit Box Dimensions (W x L x H): 9" x 6.25" x 1.75"
