DS18 KEQ30 30 Bands High Performance Amplifier Equalizer with Clipping Indicator

This listing includes:
(1) DS18 KEQ30 30 Bands High Performance Amplifier Equalizer

30 Bands at 1/3 Octave Spacing Allows Precise Adjustment at each 1/3 Octave measured Frequency from 20Hz - 20 kHz
12 dB Boost or Cut available at each of the 30 bands
High Voltage Preamp Accepts 500 mV - 9V Audio Signal and supplies up to 9V Output
Separate left and right input/output controls allow precise adjustment to input sensitivity and channel balancing
Separate left and right input/output clipping LEDs visual indicators to aid in setting input gain controls
Mono / Stereo selector allows one KEQ30 to equalize both left and right channels or 2 units for independent left and right EQ settings
Tiffany RCA jacks allow high speed signal low transfer distortion

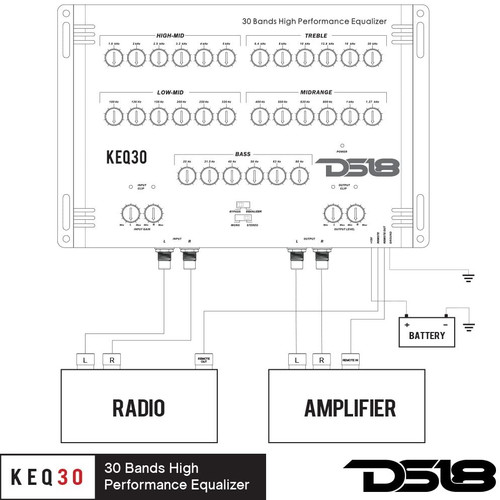

Remote out allow to send out a turn on voltage to other audio components
EQ / Bypass switch allows you to defeat the EQ and compare EQ and non-EQ sound

Operating Voltage 11-16V DC
Chassis Fuse: 2A mini-ATC

Minimum input voltage: 1500 mV RMS
Maximum input voltage: 9V RMS
Maximum output votage: 9V RMS
SNR: 120 dB
Channel Separation: 80dB

EQ:
30 Bands 1/3 octave centering
12 dB Sway per band measured in Hz

25, 31.5, 40, 50, 63, 80, 100, 126, 156, 200, 250, 320,  400, 500, 635, 800, 1K, 1.27K, 1.6K, 2K, 2.5K, 3.2K, 4K, 5K, 6.4K, 8K, 10K, 12.8K, 16K, 20K,

Fast-acting clipping LED indicators

Dimension: 1 x 10 x 7 inchs., Weight: 2 lbs.
