DS18 ZR1600.4D ZR Class D 4-Channel Full Range Amplifier

$437.99
$412.99
SKU:
ZR1600.4D
Condition:
New
Availability:
Usually Ships in 1-2 Days
Shipping:
Calculated at Checkout

DS18 ZR1600.4D ZR Class D 4-Channel Full Range Amplifier

$437.99
$412.99

About: DS18 ZR1600.4D ZR Class D 4-Channel Full Range Amplifier

The ZR series is a game-changer, crafted to optimize your sound system and unleash its true potentiall. With DS18's ZR1600.4D, the possibilities are endless. Its impressive array of tuning options, including Lowpass, Highpass, and Full Frequency Selector Switches allows you to fine-tune every song to your desired frequency. This level of customization ensures that each note is reproduced with impeccable precision and tailored to your unique listening preferences.

Delivering a powerful 2 x 1200W RMS @ 4-Ohms Bridge, 4 x 680W RMS @ 2-Ohms, and 4 x 400W RMS @ 4-Ohms, the ZR1600.4D provides the perfect amount of power to fuel your system. It effortlessly propels your speakers to their maximum potential, creating a rich and immersive audio environment. The ZR1600.4D is a testament to DS18's commitment to excellence. Its Full Range design ensures maximum efficiency, while the impressive 7200 Peak Wattage makes sure all your speakers get the juice they deserve. With a frequency response of 20Hz – 20KHz, this amplifier faithfully reproduces every note, from the deepest lows to the highest highs, with remarkable clarity and accuracy.

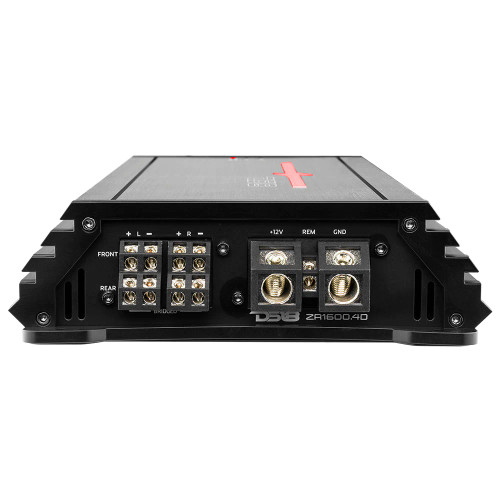

The ZR1600.4D is designed to optimize your sound system for powerful performance during every session. The LED indicators for Clipping, Power, and Protect provide valuable visual feedback that ensure optimal performance. The power and ground terminals are designed to accommodate 0 Ga wires, ensuring a secure and reliable connection. Additionally, the selectable X-Over options grant you the ability to fine-tune your audio, allowing for seamless integration with your existing sound system and putting you in complete control of your audio landscape. Experience the DS18 difference today with the ZR1600.4D and discover a new dimension of car audio excellence.

Product Highlights:

  • 4 Channel Full Range
  • Class D
  • 2 ~ 4 Ohm Stable
  • 4 x 400 Watts @ 4 Ohm
  • Clip/Protection Indicator
  • Built in Crossover

Features:

  • Amplifier Class: Digital
  • Amplifier Type: Stereo Full Range
  • Number of Channels: 4
  • Minimum Impedance: 2 Ohm (Stereo) / 4 Ohm (Bridge)
  • Led Indicator: Clipping/protect/power
  • Power Input Terminal Size: 0 GA
  • Fuse Size: 280 A
  • Remote Level Control: No
  • Cooling Fan:

    No
  • Voltmeter:

    No
  • Thermal Protection:

    Yes
  • Over-Load Protection:

    Yes
  • DC Output Protection:

    Yes
  • Voltage Input Protection:

    Yes <9 / >16 Volts
  • Clipping Protection:

    Yes
  • Body Color / Finish:

    Black Aluminum Brush

Specifications:

  • Total Watts (Peak): 7200W
  • RMS Power @ 4 Ohm: 4 x 400W
  • RMS Power @ 2 Ohm: 4 x 680W
  • RMS Power @ 4 Ohm Bridge: 2 x 1200W
  •  Frequency Response: 20Hz-20KHz
  • Signal to Noise Ratio: >90dB
  • Efficiency @ 4 Ohm: 82%
  • Damping Factor: 160
  • Input Impedance: 20K ohms
  • Channel Separation: 60dB
  • Total Harmonic Distortion (THD): 1.00%
  • Low Level Input Range: 0.2-6V
  • Selectable X-Over: FULL/LPF/HPF
  • High Level Input: No
  • X-Over Filter Range: 40Hz-4KHz

Measurements:

  • Overall Length: 12.83" (326 mm)
  • Overall Wide: 7.24" (184 mm)
  • Overall Height: 2" (53 mm)
  • Heatsink Length: 11.45" (291 mm)
  • Gross Single Unit Weight: 6.18 LB
