DS18 ZR800.4D ZR Class D 4-Channel Full Range Amplifier

DS18

DS18 ZR800.4D ZR Class D 4-Channel Full Range Amplifier

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$409.99

$466.99

12% Off

SKU: ZR800.4D

Condition: New

Availability: Usually Ships in 1-2 Days

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

About: DS18 ZR800.4D ZR Class D 4-Channel Full Range Amplifier

The ZR series is a game-changer, crafted to optimize your sound system and unleash its true potential! With DS18's ZR800.4D, the possibilities are endless. Its impressive array of tuning options, including Lowpass, Highpass, and Full Frequency Selector Switches allows you to fine-tune every song to your desired frequency. This level of customization ensures that each note is reproduced with impeccable precision and tailored to your unique listening preferences.

Delivering a powerful 2 x 600W RMS @ 4-Ohms Bridge, 4 x 320W RMS @ 2-Ohms, and 4 x 200W RMS @ 4-Ohms, the ZR800.4D provides the perfect amount of power to fuel your system. It effortlessly propels your speakers to their maximum potential, creating a rich and immersive audio environment. The ZR800.4D is a testament to DS18's commitment to excellence. Its Full Range design ensures maximum efficiency, while the impressive 3600 Peak Wattage makes sure all your speakers get the juice they deserve. With a frequency response of 20Hz – 20KHz, this amplifier faithfully reproduces every note, from the deepest lows to the highest highs, with remarkable clarity and accuracy.

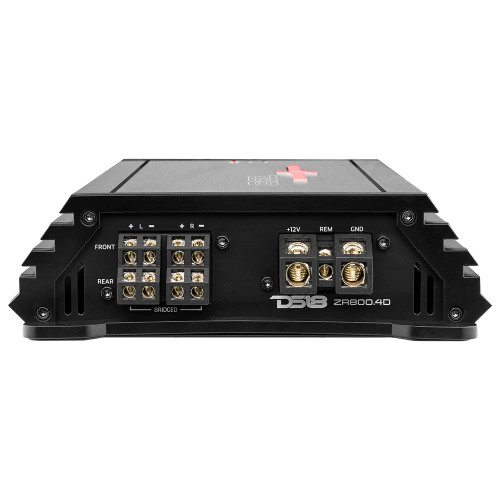

The ZR800.4D is designed to optimize your sound system for powerful performance during every session. The LED indicators for Clipping, Power, and Protect provide valuable visual feedback that ensure optimal performance. The power and ground terminals are designed to accommodate 4 Ga wires, ensuring a secure and reliable connection. Additionally, the selectable X-Over options grant you the ability to fine-tune your audio, allowing for seamless integration with your existing sound system and putting you in complete control of your audio landscape. Experience the DS18 difference today with the ZR800.4D and discover a new dimension of car audio excellence.

Product Highlights:

4 Channel Full Range
Class D
2 ~ 4 Ohm Stable
4 x 200 Watts @ 4 Ohm
Clip/Protection Indicator
Built in Crossover

Features:

Amplifier Class: Digital
Amplifier Type: Stereo Full Range
Number of Channels: 4
Minimum Impedance: 2 Ohm (Stereo) / 4 Ohm (Bridge)
Led Indicator: Clipping/protect/power
Power Input Terminal Size: 4 GA
Fuse Size: 120 A
Thermal Protection: Yes
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Clipping Protection: Yes
Body Color / Finish: Black Aluminum Brush

Specifications:

Total Watts (Peak): 3600W
RMS Power @ 4 Ohm: 4 x 200W
RMS Power @ 2 Ohm: 4 x 320W
RMS Power @ 4 Ohm Bridge: 2 x 600W
Frequency Response: 20Hz-20KHz
Signal to Noise Ratio: >90dB
Efficiency @ 4 Ohm: 88%
Damping Factor: 160
Input Impedance: 20K ohms
Channel Separation: 60dB
Total Harmonic Distortion (THD): 1.00%
Low Level Input Range: 0.2-6V
High Level Input: No
Selectable X-Over: FULL/LPF/HPF
X-Over Filter Range: 40Hz-4KHz

Measurements:

Overall Length: 10" (254 mm)
Overall Wide: 7.24" (184 mm)
Overall Height: 2" (53 mm)
Heatsink Length: 8.54" (217 mm)
Gross Single Unit Weight: 5 LB
