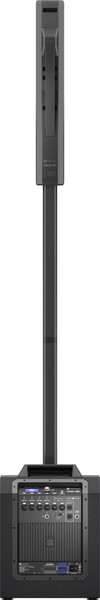

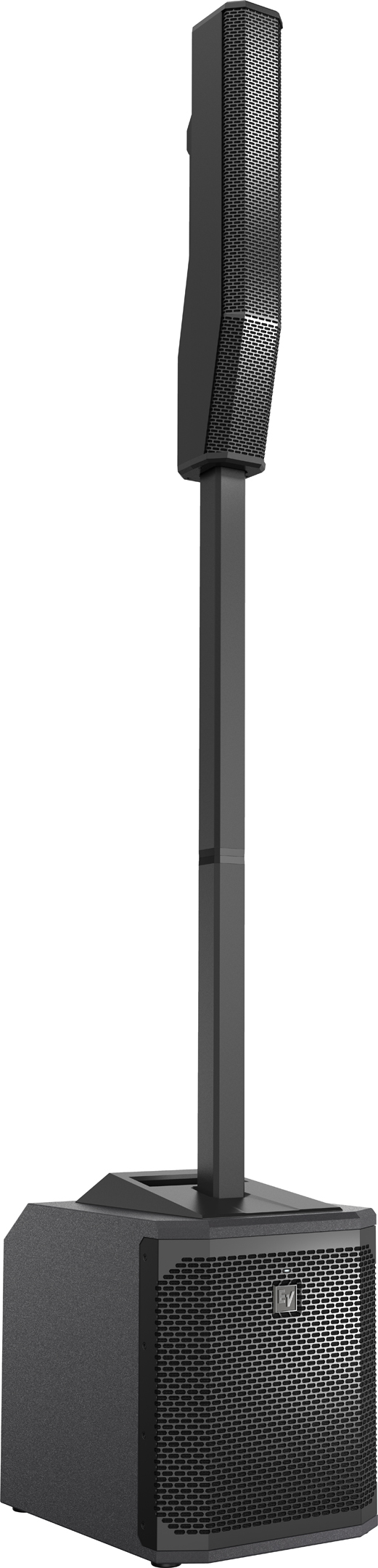

About: Electro-Voice EVOLVE 30M Portable PA Column System

Superior Electro-Voice sound quality coupled with the most complete feature set in its class – the perfect combination of performance and flexible functionality, in a very compact package

The EVOLVE 30M is designed to deliver a significant step up in all-around performance for a column system in its size/price category. It includes an eight-channel digital mixer, studio-quality onboard effects, and remote control of all audio, effects and mix functions via the next-generation Electro-Voice QuickSmart Mobile application (available via the Apple Store and on Google Play).

Features:

• Mix your show like a pro
• Optimize every detail of your sound
• Room-filling coverage
• Super-quick setup
• Single-trip portability
• Available in black or white

Specifications:

• Frequency response (-3 dB)¹: 51 Hz to 20 KHz
• Frequency range (-10 dB)¹: 45 Hz to 20 KHz
• Maximum SPL²: 123 dB
• Coverage (H x V): 120° x 40°
• Amplifier rating: 1000 W
• LF channel rating: 500 W
• HF channel rating: 500 W
• Crossover frequency: 200 Hz
• Connectors:
• 4x XLR/TRS Combo Jack Line / Mic Input
• 1x 1/4" TRS HI-Z input
• 2x XLR/TRS Combo Jack for Stereo Line Input
• 1x Stereo RCA Input
• 1x 3.5 mm Stereo Input
• 1x Wireless Stereo Bluetooth® Audio Input
• 1x 1/4" Foot Switch Input
• 1x XLR MIX OUT Output
• 1x XLR AUX OUT Output
• Enclosure
• Sub: 15 mm plywood
• Column: Composite
• Pole: Aluminum
• Grille: Steel with black or white powder coat
• Color: Black or white
• Dimensions (HxWxD): mm (in)
• Sub: 448 x 332 x 432 (17.6 x 13.1 x 17)
• Column: 620 x 95 x 157 (24.4 x 3.7 x 6.2)
• Pole (2 pcs): 600 x 48 x 55 (23.6 x 1.9 x 2.2)
• Net weight
• Sub: 34.9 lb (15.8 kg)
• Column: 6.0 lb (2.7 kg)
• Pole (2 pcs): 3.1 lb (1.4 kg)
• Bag for column and pole: 1.9 (0.85 kg)
• Shipping weight: 53.4 lb (24.2 kg)
• Power consumption³: 100-240 V AC, 50-60 Hz, 1.5-0.6 A

Notes:

• ¹ Half space measurement using the music DSP preset and 150 Hz low pass.
• ² Maximum SPL is measured at 1 m using broadband pink noise at maximum amplifier output.
• ³ Current rating is 1/8 power.
