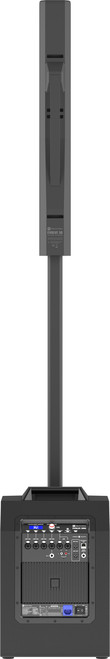

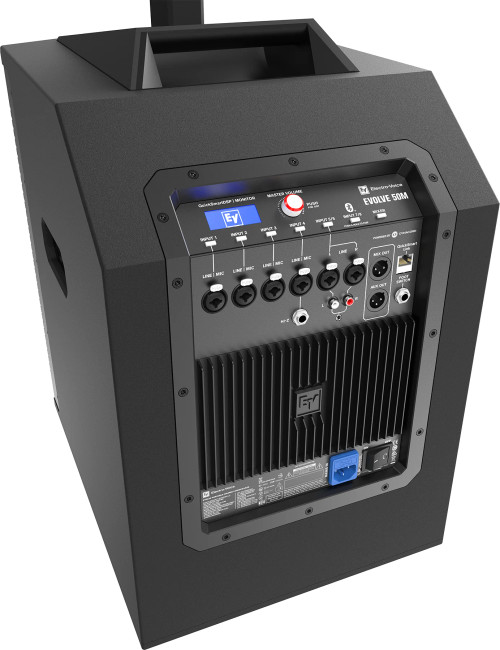

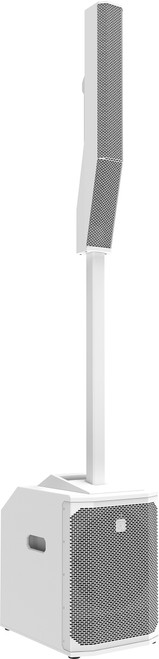

About: Electro-Voice EVOLVE 50M Portable 1000-Watt Column Loudspeaker System with 12" Subwoofer

Electro-Voice is expanding its industry-leading EVOLVE series with the launch of the EVOLVE 50M column loudspeaker system. The EVOLVE 50M features ElectroVoice’s new QuickSmart Link digital audio and control technology, an onboard mixer, DSP and effects - all combined within the sleek EVOLVE 50 format. The EVOLVE 50M is the perfect choice for bands/musicians, AV rental companies, DJs and any application where true professional audio performance is required in a super-compact and portable package.

EVOLVE 50M powered column array system includes a 12" powered subwoofer with a 3-channel, 1000W amplifier to also power the included array featuring (8) 3.5" full range drivers. Includes connection pole and carrying case. Compatible with EV Remote QuickSmartDSP app. 8-channel mixer can be linked to second EVOLVE 50M to achieve 16 channels total. Ships in two cartons, cannot purchase separate components.

Features:

• Professional performance, column convenience
• Wide, even coverage
• Mix it up! Integrated mixer
• QuickSmart Link
• Easily expand your PA
• Wireless control & monitoring

Specifications:

• Column array: 8x 3.5” neodymium drivers
• Subwoofer: 1x 12”
• Frequency response (-3 dB): 43 Hz - 20 KHz
• Frequency range (-10 dB): 37 Hz - 20 KHz
• Maximum SPL: 127 dB
• Coverage (H x V): 120° x 40°
• Amplifier rating: 1000 W
• LF channel rating: 500 W
• HF channel rating: 500 W
• Crossover frequency: 200 Hz
• Connectors:
• 4x XLR/TRS combo jack line/mic input
• 2x XLR/TRS combo jack for stereo line input
• 1x 1/4” TRS Hi-Z input
• 1x stereo RCA input
• 1x 3.5 mm stereo input
• 1x wireless stereo Bluetooth® audio input
• 1x 1/4” foot switch input
• 1x XLR mix out output
• 1x XLR aux out output
• 1x RJ45 QuickSmart Link connector
• Enclosure:
• Column: composite
• Pole: aluminum
• Sub: 15 mm plywood
• Grille: Steel with black or white powder coat
• Colors: Black or white
• Dimensions (H x W x D):
• Column: 32.5" x 4.0" x 6.9" (825 x 102 x 172 mm)
• Pole: 36.6" x 1.9" x 2.2" (929 x 48.5 x 55 mm)
• Sub: 20.9" x 13.6" x 18.5" (530 x 345 x 471 mm)
• Assembled: 80.5" x 13.6" x 18.5" (2045 x 345 x 471 mm)
• Net weight:
• Column: 10.34 lbs (4.7 kg)
• Pole: 2.75 lbs (1.25 kg)
• Sub: 44.66 lbs(20.3 kg)
• Total: 57.75 lbs (26.25 kg)
• Power consumption: 100-240 V AC, 50-60 Hz, 1.5-0.6 A

Note: Ships in two cartons
