Descriptions

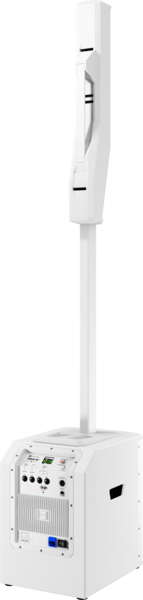

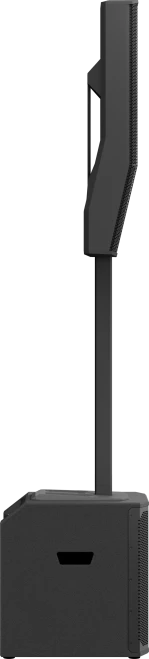

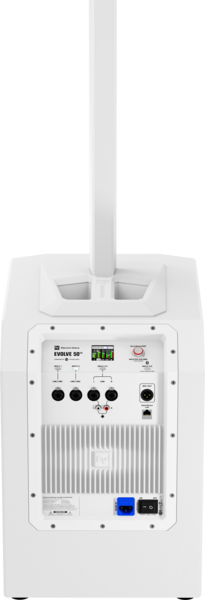

About: Electro-Voice Evolve 50 G2 12" Portable Column Loudspeaker System

EVOLVE 50 G2 is the new generation of the EVOLVE Column Loudspeaker system family. While keeping the EVOLVE's ease of assembly, EVOLVE 50 G2 improves the peak output of the previous generation and enhances the portability of the system, catering to the evolving needs of professional users including DJs, bands, production companies, event organizers, and venues.

EVOLVE 50 G2 delivers up to 2 dB higher maximum SPL and provides upgraded DSP features, such as music ducking, and switchable 48V phantom power. All features controllable via a larger, color LCD screen.

EVOLVE 50 G2 features a 12-inch subwoofer, designed to provide deeper bass and optimum sound quality for events with up to 300 attendees. The subwoofer laminar flow vent design enhances the low-frequency output and efficiency. The portability of the system is also improved by adding a new top handle and updating the side handles.

EVOLVE 50 G2 is integrated into the QuickSmart Mobile App ecosystem, which allows the user to control it as part of a system with other Bluetooth-enabled Electro-Voice portable speakers.

EVOLVE 50 G2 features industry standard connectors for microphones and line-level signals, including XLR/TRS combo jacks, stereo RCA/3.5-mm line input, and Bluetooth® true wireless stereo (TWS) streaming.

Available in black or white finishes, EVOLVE 50 G2 includes a carrying bag for the column and pole. The system also offers a padded soft cover or a rolling carrying case for the subwoofer, sold separately.

Features:

• Consistent audience coverage with ultra‑wide 120° horizontal and 40° vertical array‑formed coverage
• Fast 3‑2‑1 setup with lightweight, easy‑to‑carry design and ergonomic handles
• Mix your show easily via the QuickSmart App or onboard controls with a larger color LCD
• Enhanced flexibility with switchable 48V phantom power, and expanded FX options
• Expand mixer inputs using QuickSmart Link to share audio and control between two EVOLVE 50 G2 portable column systems

Specifications:

• Column: (8) 3.5-inch neodymium drivers
• Subwoofer: (1) 12-inch woofer
• Frequency response (-3 dB) (Hz)¹: 43 Hz – 20,000 Hz
• Frequency range (-10 dB) (Hz)¹: 37 Hz – 20,000 Hz
• Maximum sound pressure level at a distance of 1 m (dB)²: 129 dB
• Coverage angle HxV (°): 120° x 40°
• Amplifier rating (W): 1500 W
• Power consumption (V, Hz, A)³: 100 - 240 VAC, 50 - 60 Hz, 1.0 - 0.5 A
• LF channel rating (W): 750 W
• HF channel rating (W): 750 W
• Crossover frequency (Hz): 200 Hz
• Connector type:
• Dual XLR/TRS combo jack mic / line inputs with switchable 48V phantom power
• XLR/TRS combo stereo jack
• Stereo RCA line input
• 3.5 mm stereo jack input
• XLR Mix out
• RJ45 QuickSmart Link connector
• Bluetooth Stereo input with TWS
• Enclosure:
• Sub: Plywood with polyurea coating
• Column: Composite
• Pole: Aluminum
• Grille: Steel with black or white powder coat
• Color: Black or white
• Dimensions (H x W x D):
• Sub: 20.08 in x 13.54 in x 18.50 in (510 mm x 344 mm x 470 mm)
• Column: 32.48 in x 4.02 in x 6.43 in (825 mm x 102.4 mm x 163.26 mm)
• Pole: 36.57 in x 1.91 in x 2.16 in (929 mm x 48.49 mm x 54.82 mm)
• Assembled dimensions: 82.40 in x 13.54 in x 18.50 in (2093 mm x 344 mm x 470 mm)
• Weight:
• Sub: 43 lb (19.5 kg)
• Column: 10.6 lb (4.8 kg)
• Pole: 2.4 lb (1.1 kg)
• Assembled system: 55.8 lb (25.3 kg)
• Shipping weight:
• Sub: 49.93 lb (22.65 kg)
• Column, pole, and carrying bag: 18.7 lb (8.5 kg)

Note:

• ¹ Full-space measurement using MUSIC DSP preset.
• ² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
• ³ Current rating is 1/8 power.
