Descriptions

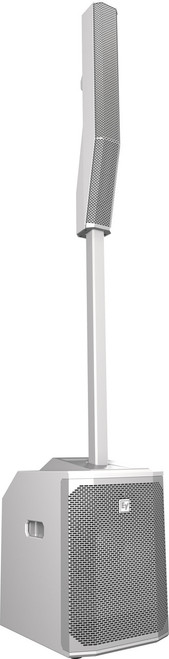

About: Electro-Voice EVOLVE 50 Portable 1000-Watt Column Loudspeaker System with 12" Subwoofer

The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP.

The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz.

The bi-directional aluminum pole’s connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.

Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.

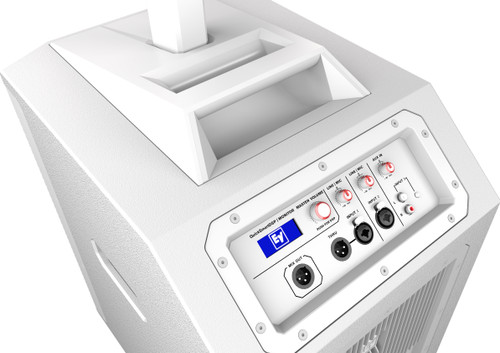

The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment. Bluetooth is available in select countries.

EVOLVE 50 powered column array system includes a 12" powered subwoofer with a 3-channel, 1000W amplifier to also power the included array featuring (8) 3.5" full range drivers. Includes connection pole and carrying case. Compatible with EV Remote QuickSmartDSP app. 8-channel mixer can be linked to second EVOLVE 50M to achieve 16 channels total. Ships in two cartons, cannot purchase separate components.

Features:

• Clean, Compact Design — Built to Blend In
• Easy Transport & Setup
• Professional PA Performance
• Wide, Even Coverage
• QuickSmart DSP
• Wireless Control & Monitoring
• High‑Quality Bluetooth* Audio
• Now Available in White

Specifications:

• Frequency response (-3 dB): 43 Hz-20 KHz
• Frequency range (-10 dB): 37 Hz-20 KHz
• Maximum SPL: 127 dB
• Coverage (H x V): 120° x 40°
• Amplifier rating: 1000 W
• LF channel rating: 500 W
• HF channel rating: 500 W
• Crossover frequency: 200 Hz
• Connectors:
• 2x XLR/TRS Combo Jack Input
• 1x 3.5 mm Input
• 1x Stereo RCA Input
• 1x Wireless Bluetooth® Audio Input
• 1x XLR THRU Output
• 1x XLR MIX OUT Output
• Enclosure:
• Sub: 15 mm plywood
• Column: Composite
• Pole: Aluminum
• Grille: Steel with black or white powder coat
• Color: Black or white
• Dimensions (H x W x D):
• Sub: 20.9" x 13.6" x 18.5" (530 x 345 x 471 mm)
• Column: 32.5" x 4.0" x 6.9" (825 x 102 x 172 mm)
• Pole: 36.6" x 1.9" x 2.2" (929 x 48.5 x 55 mm)
• Net weight:
• Sub: 44.66 lb (20.3 kg)
• Column: 10.34 lb (4.7 kg)
• Pole: 2.75 lb (1.25 kg)
• Sub cover: 0.9 lb (0.4 kg)
• Bag for column and pole: 1.87 (0.85 kg)
• Shipping weight:
• Sub box: 50.71 lb (23 kg)
• Column box: 18.30 lb (8.3 kg)
• Power consumption: 100-240 V AC, 50-60 Hz, 1.5-0.6 A

Note: Ships in two cartons
