Hertz VENEZIA V6 24V 6-Channel Marine Amplifier - 24V

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$2,029.99

$1,719.99

SKU:: VENEZIA V6 24V
UPC:: 78250036
Condition:: New
Availability:: Special Order - Usually Ships in 3-5 Days
Shipping:: Calculated at Checkout

Hertz VENEZIA V6 24V 6-Channel Marine Amplifier - 24V

$2,029.99

$1,719.99

Description
Shipping & Returns

Description

About: Hertz VENEZIA V6 24V 6-Channel Marine Amplifier - 24V

Venezia V6 24V option is the first six-channel Hertz marine amplifier, featuring the impressive power of 160 W x 6 (4Ω), delivering the output levels needed in the marine environment! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability. Venezia V6 24V is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V6 24V is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.

Features:

Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification
ADC (Advanced D-Class) Technology 2Ω stable output stage providing Hi-Res certified audio performance with superior efficiency
Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power
Balanced fully-differential input circuitry to reject electromagnetic disturbances
Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system
Built-in filter section protected by a polycarbonate panel suitable for any system configuration
Short-circuit, overload, and thermal protections with auto-resetting

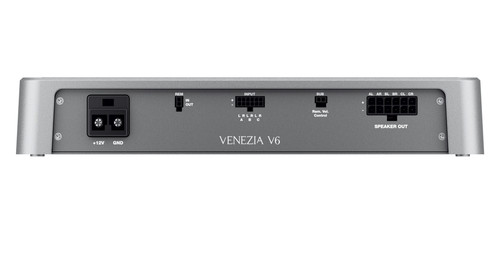

Plug&Play Input and Output connections with safe-lock
Proprietary Plug&Play Power Supply Connector with safe-lock

Specifications:

General Specs:

Channels: 6 - 5 - 4 - 3
POWER SUPPLY:
Power supply voltage: 22 ÷ 33 VDC
ldling current (power ON/OFF): 1 A / 0.04 mA
Consumption@ 1Ω, 28.8 VDC (Max Musical Power): 30 A
Remote In: 7 ÷ 33 VDC - 1 mA
Remote Out: 14÷ 33 VDC
AMPLIFIER STAGE:
Distorsion - THD (100Hz @ 4Ω): <0,06%
Bandwidth: 10 ÷ 42 kHz
S/N Ratlo (A welghted @ 1 V): 100 dB
Damping factor (100Hz @ 4Ω) 130
Pre-ln sensitivity: 0.2 ÷ 5 VRMS
Pre-ln impedance: 10 kΩ
Load impedance (MIN):
@6Ch: 2Ω
@5Ch: 2Ω + 2Ω + 2Ω +2Ω + 4Ω
@4Ch: 2Ω + 2Ω + 2Ω +4Ω + 4Ω
@3Ch: 4Ω
Adjustable Crossovers: yes

Output Power:

OUTPUT POWER (RMS) @ 28.8 VDC, THD 1%
6Ch: 160 W x 6 (4Ω)
6Ch: 290 W x 6 (2Ω)
5Ch: 160 x 4 (4Ω) + 580 x 1 (4Ω)
5Ch: 290 x 4 (2Ω) + 580 x 1 (4Ω)
4Ch: 160 x 2 (4Ω) + 580 x 2 (4Ω)
4Ch: 290 x 2 (2Ω) + 580 x 2 (4Ω)
3Ch: 580 x 3 (4Ω)
Total Power RMS: 1740 W

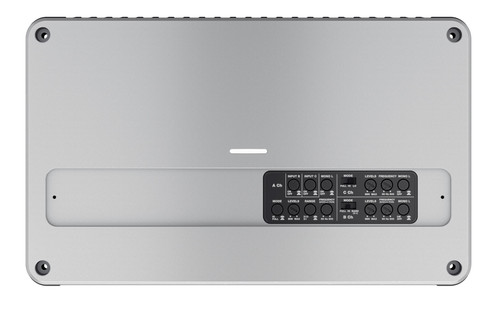

Inputs / Filters:

lnputs: A Ch. Pre in, B Ch. Pre in, C Ch. Pre in
Pre Out: No
Ch. A filters:
MONO IN (on/off): Yes
By-pass: Yes
Hi-pass: 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
Ch. B filters:
MONO IN (on/off): Yes
By-pass: Yes
Hi-pass: 50 ÷ 500 Hz @ 12 dB/Oct
Band-pass: 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
Ch. C filters:
MONO IN (on-off): Yes
By-pass: Yes
Hi-pass: 50 ÷ 500 Hz @ 12 dB/Oct
Lo-pass: 50 ÷ 500 Hz @ 12 dB/Oct
Bass boost 50 Hz (adjust): (0 ÷ 12) dB
