Descriptions

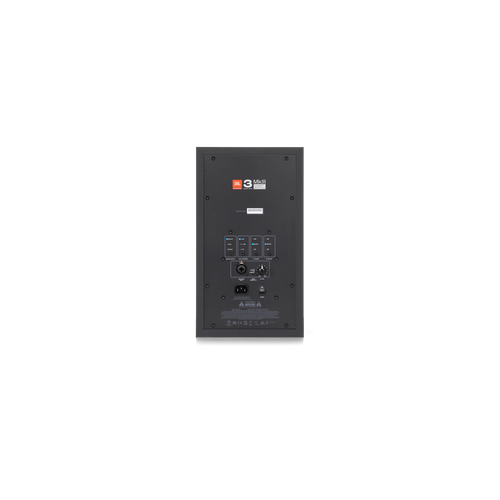

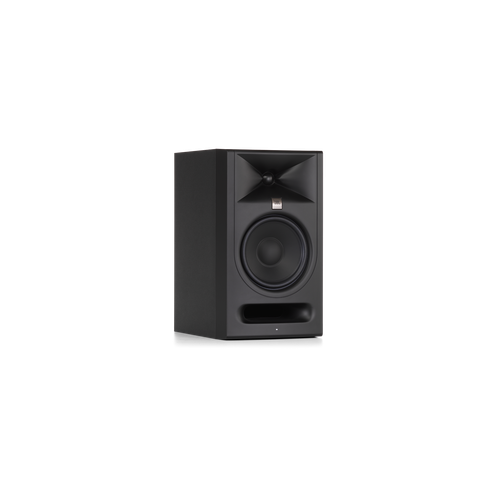

About: JBL 306P MkIII Powered 6" Two-Way Studio Monitor (Each)

Professional Monitoring for Growing Production Spaces

JBL 306P MkIII combines JBL’s next-generation acoustic platform with increased output capability, deeper low-frequency performance, and intelligent DSP room optimization to deliver trusted reference monitoring for music production, content creation, post-production, and immersive audio workflows. With low-frequency extension to 43Hz (-10 dB), 112 dB peak SPL, and wide 120° × 90° coverage, 306P MkIII delivers the headroom, accuracy, and dynamic range required for larger rooms and more demanding productions.

Best-in-Class Acoustics

The redesigned acoustic platform combines a new high-performance silk dome tweeter, advanced 6.5-inch low-frequency driver, JBL’s patented Image Control Waveguide, and patented Slipstream™ port to deliver exceptional clarity, controlled low-frequency response, and remarkably accurate stereo imaging. Whether mixing music, editing content, or producing immersive audio, 306P MkIII provides the detail and consistency needed to make confident mix decisions.

Intelligent DSP Room Optimization

Professional monitoring begins with adapting to the room. Four onboard DSP controls provide fast optimization for desktop, stand, or wall placement while allowing users to fine-tune boundary compensation and high- and low-frequency response. With 81 configurable room tuning combinations, 306P MkIII delivers consistent performance across home studios, professional control rooms, and production suites.

High Output. Low Noise.

A newly designed bi-amplified 110-watt Class D amplifier system (55 W LF + 55 W HF) delivers exceptional dynamic range, ultra-low self-noise, and outstanding transient performance. Capable of producing 112 dB peak SPL, 306P MkIII provides the output and headroom needed for accurate monitoring while maintaining the detail and precision demanded by today’s creators.

Product Highlights:

• New High-Performance HF Driver: New silk dome tweeter delivers accurate high mid detail and smooth response extending to 38 kHz.
• Patented Image Control Waveguide: JBL’s patented waveguide delivers precise imaging and consistent 120° × 90° coverage.
• New 6.5-inch Low-Frequency Driver: Redesigned 6.5-inch woofer delivers higher output, lower distortion, and controlled bass down to 43 Hz.
• Patented Slipstream™ Port: Double-flared Slipstream™ port reduces turbulence and port noise for clean, articulate bass at all levels.
• Corrective EQ: 81 customized presets to compensate for any acoustic environment.
• High-Efficiency Class D Amplification: Bi-amplified 110-watt Class D amplification delivers wide dynamic range, ultra-low noise, and up to 112 dB peak SPL.

Specifications:

• LF Driver Size: 165mm (6.5”)
• HF Driver Size: 25mm (1”)
• HF Driver Type: Soft dome
• Crossover: 2040Hz
• OK for Use Near Magnetically Sensitive Equipment: Yes
• Input Sensitivity (-10dBV Input): 92dB / 1m
• Power Configuration: Bi-amplified
• HF Driver Power Amp: 55W, Class-D
• LF Driver Power Amp: 55W, Class-D
• Frequency Response (±3dB): 52Hz - 27kHz
• Frequency Range (-10dB): 43Hz - 38kHz
• Low Frequency Extension (-10dB): 43Hz
• Maximum RMS SPL: 100dB
• Maximum Peak SPL: 112dB
• Maximum Peak Input Level (-10dBV / +4dBu): +7dBV / +21dBu
• System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement
• Electrical Distortion Criteria: <0.1% THD @ 1W output, <1% THD @ full rated output
• Sample Rate: 192kHz
• Input Impedance: 20kΩ
• Signal to Noise Ratio: 83dB, A-Weighted, relative to 1W output
• Coverage Horizontal x Vertical: 120° x 90°
• Analog Input Types: 1 x Neutrik Combo, balanced
• HF Adjust @ 3kHz High Shelf: -2dB, 0dB, +2dB
• LF Adjust @ 300Hz Low Shelf: -2dB, 0dB, +2dB
• AC Input Voltage: 100-240VAC (+/- 10%), 50/60Hz
• Enclosure Type: Ported
• Enclosure Construction: 15mm MDF
• Enclosure Finish: Matte black PVC
• Baffle Construction: Injection-molded structural ABS, UL 94 V-0
• Rear Panel Construction: 2mm SPCC
• Mounting Points: M4 x 8 (4 on top, 4 on bottom), 75 x 75 mm VESA pattern
• Cabinet Dimensions (H x W x D): 14.6” x 8.3” x 11.4” (370 x 210 x 290 mm)
• Net Weight: 6.7 kg (14.8 lbs)
• Shipping Gross Weight: 9.4 kg (20.6 lbs)
• Sold Individually

What's in the Box:

• 1 x 306P MkIII studio monitor
• 1 x Power cord
• 1 x Quick setup guide
• 4 x Peel-off rubber pads
