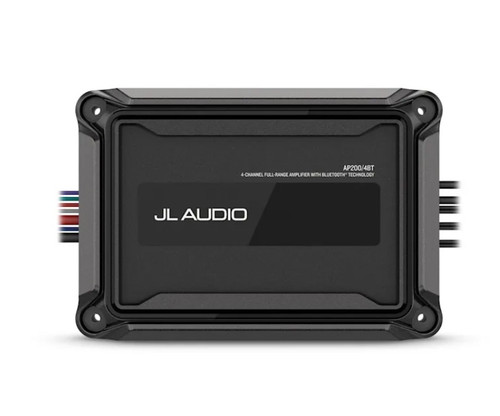

About: JL Audio AP200/4BT 4-Channel Marine Amplifier with Bluetooth – 40W RMS x 4

POWER THE MOMENT

With this tough and ultracompact 4 channel full-range amplifier featuring Bluetooth® technology, you can enjoy every note from every part of your boat.

• EFFICIENT CLASS-D DESIGN
• STREAM AUDIO WITH BLUETOOTH TECHNOLOGY
• INCLUDES WIRED REMOTE
• IGNITION PROTECTED AND IP67-RATED (EXCLUDING CABLES)
• COMPACT BUILD

CLASS-D AMPLIFIER TECHNOLOGY

The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.

STREAM ON THE GO

This amplifier pairs with your compatible smartphone for seamless audio streaming and includes a wired remote that can be flush-, surface- or bar-mounted. Its compact size makes it a perfect addition to your small boat, jet ski or overland vehicle.

RUGGED DESIGN

The included remote is IPX7-rated and the amplifier is built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.

Specifications:

• Channels: 4
• Physical dimensions (Height): 47 mm (1.86″)
• Physical dimensions (Width): 185 mm (7.28″)
• Physical dimensions (Depth): 125 mm (4.9″)
• Operating voltage: 9-16 VDC
• Water and dust rating: IP67
• Operating temperature range: -20° to 65° C (-4° to 149° F)

Audio:

• Amplifier class: Class D
• Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD): 40 W x 4 / 100 W x 2 (Bridged)
• Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD): 50 W x 4
• Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs: > 70 dB
• THD+N @ Rated Power: <1% @ 4 Ω per Channel
• Frequency response (+0, -1dB): 20 Hz - 20 kHz
• Input sensitivity @ RCA inputs: 200mV-8VRMS
• Input voltage range @ RCA inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
• Input impedance:
• 11 kΩ (High)
• 20 kΩ (Low)
• Current consumption (StandBy): <1mA
• Current consumption (Idle): 700-750mA
• Fuse rating: 35A
• Recommended fuse type(s): AFS, AGU or MaxiFuse™
• Min. copper power/Ground wire gauge: 4 AWG wire
• Protection circuits:
• Input under/over voltage
• Over temperature
• Output short circuit

What's in the Box:

• 4 channel amplifier with Bluetooth^® technology
• Remote controller
• Surface mounting cup with four mounting screws
• Four amplifier mounting screws
• Flush mounting kits
• Flush mounting template for the remote controller
• Waterproof gasket for the remote controller
• Documentation
