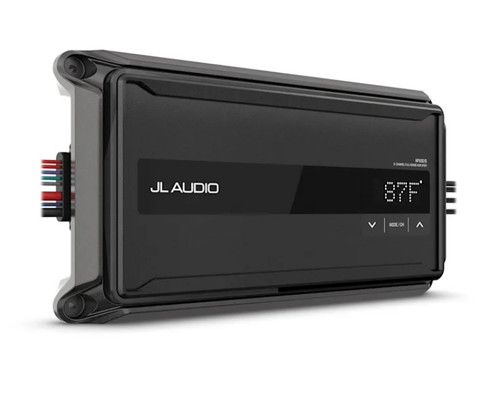

About: JL Audio AP600/6 AP 6-Channel Marine Amplifier – 50W RMS x 4 + 100W RMS x 2

POWER THE MOMENT

With these tough and ultracompact amplifiers, you can enjoy every note from every part of your boat.

• EFFICIENT CLASS-D DESIGN
• AVAILABLE IN MONOBLOCK, 4 CHANNEL AND STAGGERED-POWER 6 CHANNEL
• BUILT-IN LCD DISPLAY FOR MANUAL CONTROL
• IGNITION PROTECTED AND IP67-RATED (EXCLUDING CABLES)
• EASY TUNE FEATURE

300-WATT MONOBLOCK AMPLIFIER

This monoblock amplifier is specifically designed to power a subwoofer.

300-WATT 4 CHANNEL AMPLIFIER

This 4 channel amplifier can power up to a maximum of four pairs of speakers or two pairs of speakers and one subwoofer.

600-WATT 6 CHANNEL AMPLIFIER

This staggered-power 6 channel amplifier can power up to a maximum of six pairs of speakers or four pairs of speakers and one subwoofer.

EASY TUNE FEATURE

For additional optimisation, pair with a Fusion® stereo with built-in DSP, and download the Fusion® Audio App for selectable profiles. This enables the Easy Tune feature, which streamlines amplifier setup to ensure superior sound quality and system protection.

CLASS-D AMPLIFIER TECHNOLOGY

The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.

RUGGED DESIGN

These amplifiers offer superior levels of durability and are built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.

Specifications:

• Channels: Monoblock / 4 / 6
• Physical dimensions (Height): 47 mm (1.85″)
• Physical dimensions (Width):
• Monoblock/4 Channel: 265 mm (10.43″)
• 6 Channel: 300 mm (11.81″)
• Physical dimensions (Depth):
• Monoblock/4 Channel: 125 mm (4.9″)
• 6 Channel: 150 mm (5.9″)
• Operating voltage: 9-16 VDC
• Water and dust rating: IP67
• Operating temperature range: -20° to 65° C (-4° to 149° F)

Audio:

• Amplifier class: Class D
• Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD):
• Monoblock: 200 W x 1
• 4 Channel: 50 W x 4/150 W x 2 (Bridged)
• 6 Channel: Ch. 1-4: 50 W x 4 / 150 W x 2 (Bridged) / Ch. 5-6: 100 W x 2 / 300 x 1 (Bridged)
• Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD):
• Monoblock: 300 W x 1
• 4 Channel: 75 W x 4
• 6 Channel: Ch. 1-4: 75 W x 4 / Ch. 5-6: 150 W x 2
• Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs: > 70 dB
• THD+N @ Rated Power <1% @ 4 Ω per Channel
• Frequency response (+0, -1dB):
• Monoblock: 10 Hz - 500 Hz
• 4 / 6-Channel: 20 Hz - 20 kHz
• Input sensitivity @ RCA inputs: 200mV-8VRMS
• Input voltage range @ RCA inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
• Input impedance:
• 11 kΩ (High)
• 20 kΩ (Low)
• Current consumption (StandBy): <1mA
• Current consumption (Idle):
• Monoblock/4-Channel: 700-750mA
• 6 Channel: 1000mA-1500mA
• Fuse rating:
• Monoblock/4 Channel: 35A
• 6 Channel: 70A
• Recommended fuse type(s): AFS, AGU or MaxiFuse™
• Min. copper power/Ground wire gauge: 4 AWG wire
• Protection circuits:
• Input under/over voltage
• Over temperature
• Output short circuit

Signal Processing:

• High-pass/low-pass full range filter: Yes (user selectable)
• Filter mode(s): Channels 1 & 2:
• Low-pass
• 4 / 6-Channel: Off, Low-Pass or High-Pass
• Filter slope(s): Channels 1 & 2: 12dB/octave
• Filter frequency range: Channels 1 & 2 20 Hz - 500 Hz
• Filter mode(s): Channels 3 & 4 4 / 6-Channel: Off, Low-Pass or High-Pass
• Filter slope(s): Channels 3 & 4 4 / 6-Channel: 12dB/octave
• Filter frequency range: Channels 3 & 4 4 / 6-Channel: 20 - 500 Hz
• Filter mode(s): Channels 5 & 6 6-Channel: Off, Low-Pass or High-Pass
• Filter slope(s): Channels 5 & 6 6-Channel: 12dB/octave
• Filter frequency range: Channels 5 & 6 6-Channel: 20 Hz - 500 Hz
• HP variable crossover frequency range 4/6 Channel: 12dB/octave
• LP variable crossover frequency range Monoblock/4/6 Channel: 20-500Hz

Bass boost:

• Bass boost EQ (0 to +18 dB @ 37 Hz)
• Infrasonic filter: Subwoofer Channel
• Monoblock: 20 Hz - 50 Hz, Defeatable
• 6-Channel: 20 Hz - 50 Hz, Defeatable (Ch. 5-6 only)
• Output polarity switch:
• Monoblock: Yes
• 4 / 6-Channel: No

What's in the Box:

• JL Audio^® AP Amplifier (based on your selection)
• Four mounting screws
• Documentation
