Descriptions

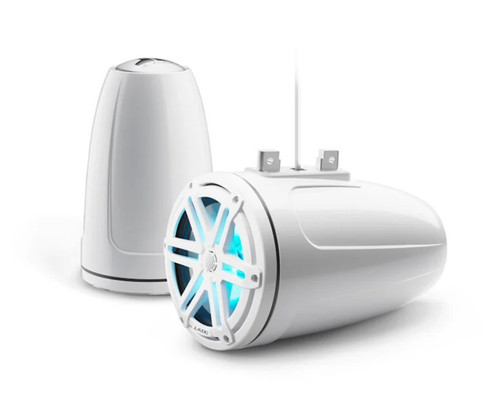

About: JL Audio M3-770ETXv3-Gw-S-Gw M3 Series 7.7" 70W RMS Wakeboard Tower Speakers with White Sport Grille

A WAKE TOWER AWAKENING

Engineered to deliver strong, smooth, crystal-clear sound that you can hear and enjoy well beyond your boat, the affordable M3 ETXv3 tower speaker system is a breakthrough in on-water audio performance.

• POWERFUL MIDBASS OUTPUT IN OPEN-AIR APPLICATIONS
• CHOOSE SLEEK GLOSS WHITE OR SATIN BLACK SPEAKER ENCLOSURES
• WIDE RANGE OF TUBULAR OR SURFACE-MOUNTING OPTIONS
• AVAILABLE WITH BUILT-IN RGB LED ACCENT LIGHTING
• EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE

TOWERING PERFORMANCE

Robust M3 speakers are ideal for wakeboard towers or other tubular structures — or they can be flat mounted to decks and other surfaces to deliver superb sound quality with strong projected output.

DMA-OPTIMIZED WOOFERS

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

PURE SILK TWEETERS

The treated silk dome design is chosen for its lightness, damping properties and smooth response characteristics to deliver superior output capability with crystal-clear, high-frequency detail.

INTEGRATED TWEETER FILTERS

Each speaker includes a built-in second-order, high-pass tweeter filter with a solid-state protection circuit to minimize the possibility of tweeter failure.

POWER VERSATILITY

Designed to benefit from operation with quality amplification, M3 marine speakers are also suitable for use with standard marine head-unit power from products such as the MediaMaster® 55 or Fusion® MS-RA210.

REAL MARINE DUTY

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

Specifications:

• Sizes: 7.7"
• Color: White Classic, White Sport or Gray Sport
• Physical dimensions (Diameter): 7.70" (196 mm)
• Physical dimensions (Depth):
• 7.7" (Classic): 12.62" (321 mm)
• 7.7" (Sport): 12.69" (323 mm)
• Speaker type: Enclosed Coaxial
• Continuous power handling (RMS): 70 W
• Sensitivity: (SPL @ 1 W/1 m) 90.5 dB
• Frequency response (+/- 3 dB): 55 Hz-25 kHz
• Nominal impedance: 4 Ω
• Recommended amplifier power (RMS): 20-140 W/Channel
• LED lighting: yes - RGB (selected Sport models only)
• LED supply voltage: 10-14.4 VDC
• LED Load Current @: 14.4 VDC (max) 108 mA
• Cone material: Injection-molded, mica-filled polypropylene
• Tweeter type: Silk Dome
• Tweeter size: 0.75" (19 mm)

Networking & Connections:

• Speaker connections: Flying Lead with 16 AWG wire (10 ft)
• LED connection: Flying Lead with 4-conductor 20 AWG wire (selected Sport models only, 10 ft)

What's in the Box:

• Two wake tower enclosures with marine coaxial loudspeakers and grilles installed
• Two aluminum logo caps
• One tube of silicone adhesive
• Eight red butt splice connectors (#22-18 AWG)
• Four blue butt splice connectors (#16-14 AWG)
