Descriptions

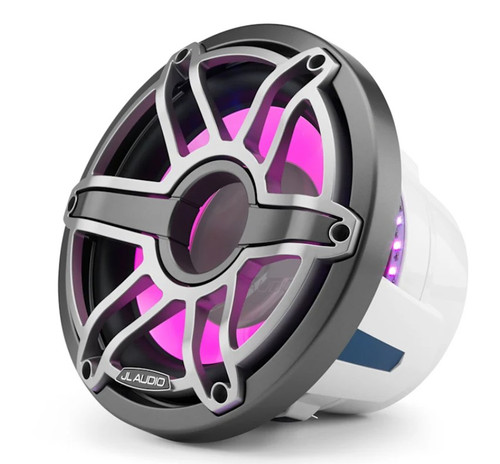

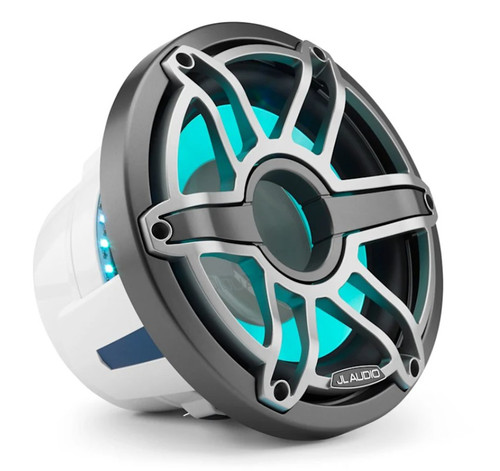

About: JL Audio M6-10IB-S-GmTi-i-4 M6 Series 10" 250W RMS Marine Subwoofer with RGB LED Lighting and Gunmetal Sport Grille

MAXIMUM PERFORMANCE

Optimized for high-powered operation, M6 marine subwoofers can be installed in various applications and are built to withstand the rigors of marine use.

• DELIVERS POWERFUL DEEP BASS IN OPEN-AIR APPLICATIONS
• MODELS FOR USE WITH OR WITHOUT A DEDICATED ENCLOSURE
• GRILLE AND TRIM RING ARE EASILY REMOVABLE FOR PAINTING
• MODELS AVAILABLE WITH PATENTED LED ILLUMINATION
• EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE

WORLD-CLASS PERFORMANCE

This bass will impress you, not only with its sheer level but even more with its smoothness, balance and precision.

MODEL SPECIFIC

These specialized versions are made for specific applications and optimized to perform in compact enclosures or in infinite baffle installations without dedicated enclosures.

POWERFULLY EFFICIENT

M6 marine subwoofers are designed to benefit from operation with quality amplification.

DMA-OPTIMIZED WOOFERS

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

REAL MARINE DUTY

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

TRANSFLECTIVE™ RGB LED LIGHTING

Get a patented system on sport models for smooth lighting with no hot spots or reflections.

Specifications:

• Sizes: 8"/10"
• Color: White Classic, White Sport or Titanium Sport or Luxe Satin Black or Luxe Satin White
• Physical dimensions (Diameter):
• 8": 8.80" (224 mm)
• 8" (Luxe): 10.25" (260 mm)
• 10": 10.75" (273 mm)
• 10" (Luxe): 12.54" (319 mm)
• Physical dimensions (Depth):
• 8" (Classic): 6.37" (162 mm)
• 8" (Sport): 6.45" (164 mm)
• 8" (Luxe): 6.78" (172 mm)
• 10": 7.56" (192 mm)
• 10" (Luxe): 7.53" (191 mm)
• Weight:
• 8": 8.70 lbs (3.90 kg)
• 10": 12.60 lbs (5.70 kg)
• 10" (Luxe): 13.2 lbs (6.0 kg)
• Speaker type: Infinite Baffle or Enclosed-use Subwoofer
• Continuous power handling (RMS):
• 8": 200 W
• 10": 250 W
• Sensitivity (SPL @ 1 W/1 m):
• 8": 86.8 dB
• 10" (IB): 86.1 dB
• 10" (W): 86.4 dB
• Nominal impedance: 4 Ω
• Recommended amplifier power (RMS):
• 8": 50-200 W
• 10": 75-250 W
• LED lighting yes - Transflective™ (selected Sport models only)
• LED supply voltage: 10-14.4 VDC
• LED Load Current @ 14.4 VDC (max):
• 8": 486 mA
• 10": 594 mA
• Cone material: Injection-molded, mica-filled polypropylene

Networking & Connections:

• Speaker connections: Spade Connectors
• LED connection: Flying Lead with 4-conductor 20 AWG wire (selected Sport models only)

Mounting Dimensions:

• Mounting diameter clearance:
• 8" (Classic/Sport): 5" (127 mm)
• 8" (Luxe): 6.30" (160 mm)
• 10" (Classic/Sport): 5.90" (150 mm)
• 10" (Luxe): 6.98" (177 mm)
• Frontal grille protrusion:
• 8" (Classic): 1.37" (35 mm)
• 8" (Sport): 1.45" (37 mm)
• 8" (Luxe): 0.48" (12 mm)
• 10" (Classic/Sport): 1.66" (42 mm)
• 10" (Luxe): 0.55" (14 mm)
• Mounting hole:
• 8" (Classic/Sport): 7.375" (187 mm)
• 8" (Luxe): 8.625" (219 mm)
• 10" (Classic/Sport): 8.875" (225 mm)
• 10" (Luxe): 10.5625" (268 mm)
• Bolt hole circle:
• 8" (Classic/Sport): 7.97" (202 mm)
• 8" (Luxe): 9.27" (235 mm)
• 10" (Classic/Sport): 9.70" (247 mm)
• 10" (Luxe): 11.46" (291 mm)
• Driver displacement:
• 8" (Classic/Sport): 0.033 cu ft (0.93 L)
• 8" (Luxe): 0.073 cu ft (2.07 L)
• 10" (Classic/Sport): 0.052 cu ft (1.47 L)
• 10" (Luxe): 0.099 cu ft (2.80 L)

Parameters:

• Free Air Resonance (FS):
• 8": 54.92 Hz
• 10" (IB): 43.76 Hz
• 10" (W): 34.58 Hz
• Electrical “Q” (Qes):
• 8": 0.852
• 10" (IB): 0.907
• 10" (W): 0.522
• Mechanical “Q” (Qms):
• 8": 10.314
• 10" (IB): 11.315
• 10" (W): 9.780
• Total “Q” (Qts):
• 8": 0.787
• 10" (IB): 0.840
• 10" (W): 0.496
• Equivalent Compliance (Vas):
• 8": 0.54 cu ft (15.29 L)
• 10" (IB): 0.98 cu ft (27.75 L)
• 10" (W): 1.22 cu ft (34.49 L)
• One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied):
• 8": 0.53" (14 mm)
• 10" (IB/W): 0.52" (13 mm)
• Reference Efficiency (NO): 0.28%
• Effective piston area (SD):
• 8": 35.15 in² (0.0227 m²)
• 10" (IB/W): 50.11 in² (0.0323 m²)
• DC resistance (RE):
• 8": 2.993 Ω
• 10" (IB): 4.543 Ω
• 10" (W): 3.619 Ω

Sealed Enclosure Specifications:

• Wall thickness: 0.75" (19 mm)
• Front baffle thickness: 0.75" (19 mm)
• Volume (net int.):
• 8"/10" (IB): 2.00 cu ft (56.6 L)
• 10" (W): 0.75 cu ft (21.2 L)
• External width (W):
• 8": 16" (406 mm)
• 10" (IB/W): 17" (432 mm)
• External height (H):
• 8": 16" (406 mm)
• 10" (IB/W): 17" (432 mm)
• External depth (D):
• 8": 18.25" (464 mm)
• 10" (IB): 16.25" (431 mm)
• 10" (W): 7.25" (184 mm)
• -3 dB cutoff frequency (F3):
• 8": 51.78 Hz
• 10" (IB): 41.54 Hz
• 10" (W): 50.08 Hz
• System resonance (FC):
• 8": 61.89 Hz
• 10" (IB): 53.41 Hz
• 10" (W): 56.01 Hz
• System Q at resonance (QTC):
• 8": 0.8869
• 10" (IB): 1.0253
• 10" (W): 0.8035

Ported Enclosure Specifications:

• Wall thickness: 0.75" (19 mm)
• Front baffle thickness: 0.75" (19 mm)
• Volume (net int.):
• 8": 1.50 cu ft (42.5 L)
• 10" (IB): 2.5 cu ft (70.8 L)
• 10: (W): 2 cu ft (56.6 L)
• External width (W):
• 8": 16" (406 mm)
• 10" (IB/W): 17" (432 mm)
• External height (H):
• 8": 16" (406 mm)
• 10" (IB/W): 17" (432 mm)
• External depth (D):
• 8": 15.125" (384 mm)
• 10" (IB): 20.5" (676 mm)
• 10" (W): 13.125" (333 mm)
• Internal port diameter (ID):
• 8": 4" (102 mm)
• 10" (IB): 4" (102 mm)
• 10" (W): 3" (76 mm)
• Port length (L):
• 8": 13.5" (343 mm)
• 10" (IB): 12" (305 mm)
• 10" (W): 11.125" (283 mm)
• Tuning frequency (FB):
• 8": 37 Hz
• 10" (IB): 30 Hz
• 10" (W): 31 Hz
• -3 dB cutoff frequency (F3):
• 8": 31.26 Hz
• 10" (IB): 25.09 Hz
• 10" (W): 29.81 Hz

What's in the Box:

• One marine subwoofer
• One grille
• Six stainless steel mounting screws
• Six stainless steel washers
• Grille removal tool (Luxe models only)
