Descriptions

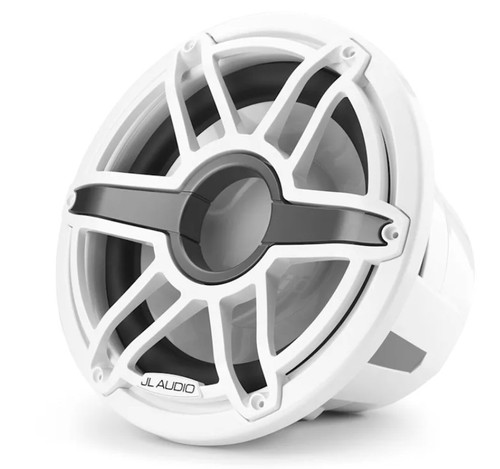

About: JL Audio M7-12IB-S-GwGw-4 M7 Series 12" 600W RMS Marine Subwoofer with White Trim Ring and White Sport Grille

KING OF BASS

With oversized, overbuilt components and very powerful motor systems, M7s are extreme subwoofers optimized for high-power operation in open-air applications.

• GENERATES STUNNING BASS IN OPEN-AIR APPLICATIONS
• ENGINEERED FOR USE WITHOUT A DEDICATED ENCLOSURE
• GRILLE AND TRIM RING ARE EASILY REMOVABLE FOR PAINTING
• MODELS AVAILABLE WITH PATENTED LED ILLUMINATION
• EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE

INCREDIBLE DISPLACEMENT

Displacement is a direct measure of a subwoofer’s output capability. With more than twice the displacement of most 10-inch subwoofers, the M7-12IB is in a class of its own.

INFINITE BAFFLE DESIGN

M7 marine subwoofers are purpose-engineered to operate without dedicated enclosures, needing only large volumes of air behind them.

HIGH POWERED

The M7 marine subwoofer easily handles up to 600 watts RMS.

DMA-OPTIMIZED WOOFERS

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

REAL MARINE DUTY

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

TRANSFLECTIVE™ RGB LED LIGHTING

Get a patented system on sport models for smooth lighting with no hot spots or reflections.

Specifications:

• Sizes: 12"
• Color White: Classic, White Sport or Titanium Sport
• Physical dimensions (Diameter): 14" (356 mm)
• Physical dimensions (Depth):
• 12" (Classic): 9.39" (239 mm)
• 12" (Sport): 9.42" (240 mm)
• Weight; 25.35 lbs (11.5 kg)
• Speaker type: Infinite Baffle Subwoofer
• Continuous power handling (RMS); 600 W
• Sensitivity (SPL @ 1 W/1 m): 86.7 dB
• Nominal impedance: 4 Ω
• Recommended amplifier power (RMS): 200-600 W
• LED lighting yes - Transflective™ (selected Sport models only)
• LED supply voltage: 10-14.4 VDC
• LED Load Current @ 14.4 VDC (max): 648 mA
• Voice coil diameter: 4" (102 mm)
• Cone material: Injection-molded, mica-filled polypropylene

Networking & Connections:

• Speaker connections: Spade Connectors
• LED connection: Flying Lead with 4-conductor 20 AWG wire (selected Sport models only)

Mounting Dimensions:

• Mounting depth clearance: 7.94" (202 mm)
• Frontal grille protrusion:
• 12" (Classic): 1.45" (37 mm)
• 12" (Sport): 1.48" (38 mm)
• Mounting hole: 12.0625" (306 mm)
• Bolt hole circle:  12.813" (325 mm)
• Driver displacement: 0.148 cu ft (4.19 L)

Parameters:

• Free Air Resonance (FS): 35.34 Hz
• Electrical “Q” (Qes): 0.856
• Mechanical “Q” (Qms): 10.389
• Total “Q” (Qts): 0.791
• Equivalent Compliance (Vas): 1.99 cu ft (56.35 L)
• One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied): 0.73" (18.5 mm)
• Reference Efficiency (NO): 0.28%
• Effective piston area (SD): 80.54 in² (0.052 m²)
• DC resistance (RE): 3.543 Ω

Sealed Enclosure Specifications:

• Wall thickness: 0.75" (19 mm)
• Front baffle thickness: 0.75" (19 mm)
• Volume (net int.): 3.00 cu ft (85 L)
• External width (W): 24" (610 mm)
• External height (H): 18.5" (470 mm)
• External depth (D): 15.75" (400 mm)
• -3 dB cutoff frequency (F3): 35.52 Hz
• System resonance (FC):  45.58 Hz
• System Q at resonance (QTC): 1.02

Ported Enclosure Specifications:

• Wall thickness: 0.75" (19 mm)
• Front baffle thickness: 0.75" (19 mm)
• Volume (net int.): 5.00 cu ft (141.6 L)
• External width (W): 30" (762 mm)
• External height (H): 18.5" (470 mm)
• External depth (D): 20.5" (521 mm)
• Internal port diameter (ID):  5" (127 mm)
• Port length (L): 13.5" (343 mm)
• Tuning frequency (FB): 25 Hz
• -3 dB cutoff frequency (F3): 20.96 Hz

What's in the Box:

• One marine subwoofer
• One grille
• Six stainless steel mounting screws
• Six stainless steel washers
