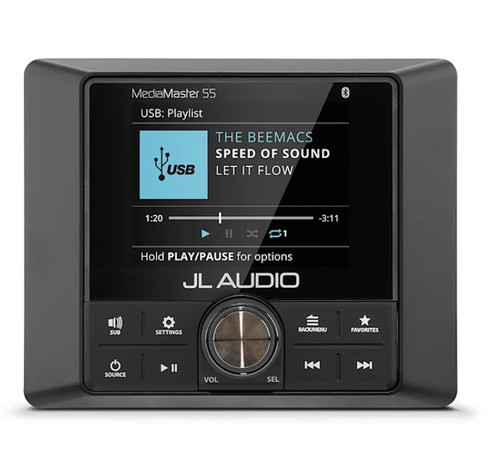

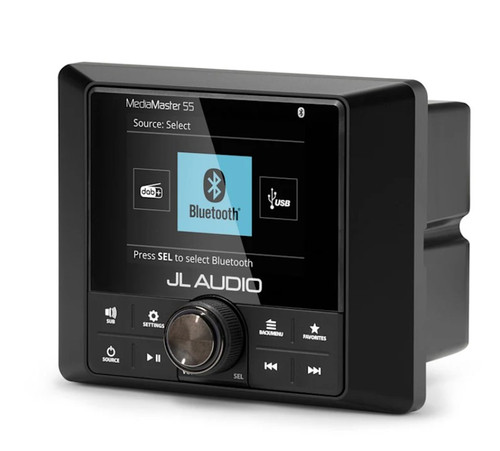

About: JL Audio MM55 2.8" LCD Marine Digital Media Receiver with Bluetooth Connectivity

ADD A SUPER SOUNDTRACK TO YOUR OUTDOOR FUN

Engineered to deliver outstanding audio fidelity and advanced performance features on your boat or powersport vehicle, the compact MediaMaster 55 digital stereo puts amazing sound at your fingertips for any outdoor adventure. A hideaway receiver, MM55-HR, is also available, offering all the features of MM55 — minus the LCD display and physical controls.

• RUGGED, WEATHER-RESISTANT DESIGN IS BUILT TO WITHSTAND THE ELEMENTS
• BRIGHT 2.8-INCH LCD COLOR DISPLAY GIVES OUTSTANDING READABILITY ON MM55
• ONBOARD AMP POWERS UP TO 100 WATTS (25-WATT RMS x 4) OF DAZZLING SOUND
• CONTROL 3 MAIN AUDIO ZONES, EACH WITH A DEDICATED SUBWOOFER OUTPUT
• STORE UP TO 18 OF YOUR FAVORITE CHANNELS ACROSS ALL TUNER BANDS
• CERTIFIED NMEA 2000® NETWORK CONNECTIVITY FOR USE WITH MULTIFUNCTION DISPLAYS

POWERFUL AUDIO OUTPUT

The robust audio output options include a built-in 100-watt amplifier (25-watt RMS x 4 channels) plus 9 channels of audiophile-quality preamp outputs from 3 separate audio zones, each with a dedicated subwoofer output.

EASY-TO-READ DISPLAY

The MM55 stereo’s ultrabright 2.8-inch full-color LCD display features separate day/night themes for clear visibility in all lighting conditions. While in motion, you’ll appreciate the intuitive user interface and oversized, illuminated control knob along with the large backlit buttons.

THREE MAIN AUDIO ZONES

The stereo’s high-fidelity sound is deployed via 3 separate audio zones, each with its own independent control options and subwoofer output, with built-in, selectable low-pass crossover. Volume, tone (bass, midrange, treble) and balance can all be adjusted separately — or linked with zone 1. Max volume levels can be set for each zone.

SIMPLE ZONE LEVEL CONTROL

On-the-fly level controls make adjusting audio zones a breeze — while the unit’s volume limit feature ensures that nobody gets blasted inadvertently. The RCA zones feature the JL Audio zero-clipping circuit design with self-limiting tone controls to help prevent speaker damage at high listening levels.

MODERN MEDIA CONNECTIVITY

All the digital and analog media formats come alive on the MM55 stereo. It includes an AM/FM tuner1, BLUETOOTH® connectivity, USB connections with charging for USB drives or iPhone® devices plus 2 auxiliary RCA inputs — all designed to ensure nonstop enjoyment of the soundtracks to all your adventures.

REMOTE CONTROL OPTIONS

Wired and wireless remotes (sold separately) are available to add convenient auxiliary control functionality to your MediaMaster stereo. There’s even an app that lets you enjoy untethered control from your compatible smartphone or mobile device.

STEREO FEATURES:

• DIGITAL HD RADIO: Built-in tuners are available for digital HD Radio™ in North America and DAB+ digital radio in Europe1.
• GLOBAL AM/FM: Select the global digital AM/FM radio tuner, and see an RDS display of extended FM program info (where available).
• BLUETOOTH STREAMING: Stream audio via BLUETOOTH wireless technology with Qualcomm® aptX™ audio codec for maximum fidelity.
• USB DIGITAL CONNECTION: USB direct digital connections let you access music files on your compatible iPhone or USB storage device.
• ANALOG AUX INPUT: An auxiliary RCA input provides connection for a wide range of analog audio sources.

Specifications:

• Physical dimensions (Height): MM55: 3.74" (95 mm)
• Physical dimensions (Width): MM55: 4.65" (118 mm)
• Physical dimensions (Depth): MM55: 3.66" (93 mm)
• Control: Surface Dust/Water Rating (when properly installed) IP67
• Operating temperature range -4° F to +149° F (-20° C to +65° C)
• Current draw (max): 15 A
• Multi-language interface: MM55: English/French/German/Italian/Spanish

Audio:

• Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD): 25 W x 4

Electrical Features:

• Power Input: 10-16 VDC

Stereo Features:

• Display size: MM55: 2.8" (71 mm)
• Display type: MM55: color TFT LCD, backlit
• Display resolution: MM55: 320 x 240
• Optically bonded display: /
• Built-in amplifier: Class D (2 Ω stereo-stable)
• Multi-Zone™ technology: /
• Bluetooth® wireless technology: /
• DAB+ ready: /
• Software updates: USB

Sources:

• Supported sources: Digital AM/FM with RDS/DAB+ (Europe only)/BLUETOOTH®/USB audio/AUX
• Supported audio formats (USB): MP3, MP4, WAV, AAC, M4A, M4B

Networking & Connections:

• Auxiliary inputs (RCA): 1 (2V or 1V RMS Input Sensitivity)
• NMEA 2000® ports: 1 (Micro-C connector)
• NMEA 2000® LEN: 1 (50 mA)
• USB 2.0 ports: 1 USB storage device (1 A charging output)
• AM/FM ports (Motorola antenna connector): 1
• Speaker connections: 4 (2 zones amplified)
• RCA pre-out (left, right and subwoofer - requires external amplification): 3 zones
• Line out (requires external amplification): 3 (L + R per zone)
• Subwoofer out (requires external amplification): 3 (1 mono output per zone)
• Wireless frequencies/protocols BLUETOOTH®: 2.4 GHz @ +14 dBm nominal
• Bluetooth® wireless range Up to 35 ft (11 meters)

What's in the Box:

• MediaMaster^® stereo
• Power connections wire harness
• Speaker connections wire harness
• Mounting gasket (not included with Hideaway Receiver)
• Mounting template
• Four mounting screws
• Protective sun cover (not included with Hideaway Receiver)
