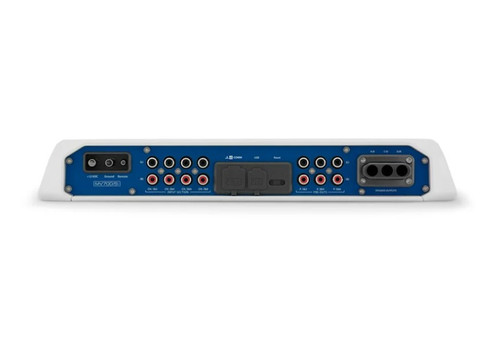

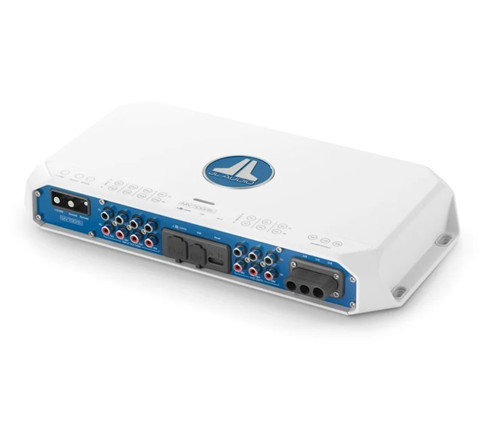

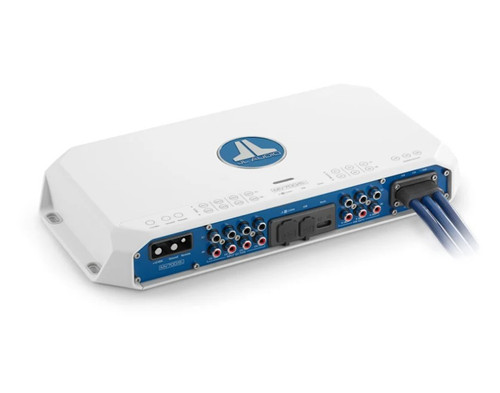

About: JL Audio MV700/5i MVi Series 5-Channel Marine Amplifier with DSP – 75W RMS x 4 + 300W RMS x 1

REFERENCE-GRADE POWER WITH DIGITAL SIGNAL PROCESSING (DSP) TECHNOLOGY

Featuring state-of-the-art amplifier circuits and built-in tuning capabilities, MVi amplifiers usher in a higher level of marine audio performance with unmatched fidelity and versatility.

• COMPREHENSIVE ONBOARD TUNING FOR EXCEPTIONAL SOUND QUALITY
• ADVANCED OUTPUT DESIGN FOR PRISTINE POWER AND EFFICIENCY
• EASY SETUP AT YOUR FINGERTIPS WITH FREE TüN SOFTWARE
• UNIQUE DESIGN ADJUSTS OPERATION TO AVOID THERMAL EVENTS
• EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE

ONBOARD TUNING POWER

Each MVi marine amplifier is packed with a complete package of DSP functions, including equalizer, delay, crossover signal routing, mixing and more.

NexD2™ TECHNOLOGY-EQUIPPED

Innovative, high-speed switching design synchronizes an amplifier’s power supply and output channels, resulting in top-flight fidelity with ultralow noise and distortion.

NO KNOBS AND SWITCHES

TüN® is free software from JL Audio that is used to make all setup and audio adjustments. It’s available for download in a variety of applications for computers and most handheld devices.

DIFFERENTIAL-BALANCED INPUTS

A versatile design accepts speaker level signals without a line-output converter; it also delivers outstanding noise rejection while preventing alternator whine and other noises.

ADVANCED ROLLBACK PROTECTION

Innovative circuit design ensures that the amplifier will never shut down as a result of thermal overload and keeps the music playing, even under the most demanding conditions.

JLid™ PROTOCOL COMMAND

This proprietary JL Audio protocol provides easy control and communication of all settings for MVi amplifiers and optional JLid accessories.

CHOOSE YOUR MODEL

• FULL-RANGE STEREO: These amplifiers are available in 2, 4, 6 and 8 channel variants.
• FIVE CHANNEL SYSTEM: This system includes 2 models with 4 full-range outputs plus a subwoofer output.
• MONOBLOCK: Get 2 non-DSP models optimized for subwoofer use with 600 and 1000 watts.

Specifications:

• Channels:  Monoblock/2/4/5/6/8
• Physical dimensions (Height): 2.05" (52 mm)
• Physical dimensions (Width):
• Monoblock (600 W)/2/4-Channel: 11.20" (285 mm)
• Monoblock (1000 W)/5 (700 W/1000 W)/6/8-Channel: 13.96" (355 mm)
• Physical dimensions (Depth): 6.93" (176 mm)
• Weight:
• Monoblock/2/4-Channel: 5.0 lbs (2.27 kg)
• Monoblock (1000 W)/5 (700 W/1000 W)/6/8-Channel: 5.6 lbs (2.54 kg)
• Operating voltage: 10-15 VDC
• Water and dust rating: IPX2 (when mounted vertically with connections pointed downward)

Audio

• Amplifier class: Class D
• Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD):
• Monoblock (600 W): 400 W x 1
• Monoblock (1000 W): 600 W x 1
• 2-Channel: 180 W RMS x 2/600 W x 1 (Bridged)
• 4-Channel: 75 W RMS x 4/200 W x 2 (Bridged)
• 5-Channel (700 W): Main: 75 W x 4/Sub: 180 W x 1
• 5-Channel (1000 W): Main: 75 W x 4/Sub: 400 W x 1
• 6-Channel: 75 W x 6/200 W x 3 (Bridged)
• 8-Channel: 75 W x 8/200 W x 4 (Bridged)
• Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD):
• Monoblock (600 W): 600 W x 1
• Monoblock (1000 W): 1000 W x 1
• 2-Channel: 300 W x 2
• 4-Channel: 100 W x 4
• 5-Channel (700 W): Main: 100 W x 4/Sub: 180 W x 1
• 5-Channel (1000 W): Main: 100 W x 4/Sub: 600 W x 1
• 6-Channel: 100 W x 6
• 8-Channel: 100 W x 8
• Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD):
• Monoblock (600 W): 300 W x 1
• Monoblock (1000 W): 500 W x 1
• 2-Channel: 140 W x 2/450 W x 1 (Bridged)
• 4-Channel: 75 W x 4/200 W x 2 (Bridged)
• 5-Channel (700 W): Main: 60 W x 4/Sub: 180 W x 1
• 5-Channel (1000 W): Main: 60 W x 4/Sub: 360 W x 1
• 6-Channel: 60 W x 6/180 W x 3 (Bridged)
• 8-Channel: 60 W x 8/180 W x 4 (Bridged)
• Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD):
• Monoblock (600 W): 500 W x 1
• Monoblock (1000 W): 800 W x 1
• 2-Channel: 225 W x 2
• 4-Channel: 60 W x 4
• 5-Channel (700 W): Main: 90 W x 4/Sub: 300 W x 1
• 5-Channel (1000 W): Main: 90 W x 4/Sub: 600 W x 1
• 6-Channel: 90 W x 6
• 8-Channel: 90 W x 8
• Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs:
• Monoblock (600 W): 90 dB
• Monoblock (1000 W): 87 dB
• 2/4/6/8-Channel: 99 dB
• Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels: 5-Channel (700 W / 1000 W): 99 dB
• Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel: 5-Channel (700 W / 1000 W): 99 dB
• Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs:
• Monoblock (600 W): 64 dB
• Monoblock (1000 W): 60 dB
• 2-Channel: 76 dB
• 6-Channel: 80 dB
• Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels: 5-Channel (700 W/1000 W) 80 dB
• Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel: 5-Channel (700 W/1000 W): 72 dB
• Damping factor @ 4 Ω:
• Monoblock (600 W): > 125/50 Hz
• Monoblock (1000 W): > 400/50 Hz
• 2/4/6/8-Channel: > 100/50 Hz
• 5-Channel (700 W/1000 W): > 150/50 Hz
• Damping factor @ 2 Ω;
• Monoblock (600 W): > 125/50 Hz
• Monoblock (1000 W): > 300/50 Hz
• 2/4/ 5 (700 W/1000W)/6/8-Channel: > 50/50 Hz
• THD+N @ Rated Power: Monoblock (600 W/1000 W)/2/4/6/8-Channel: <1% @ 2 Ω per Channel
• THD+N @ Rated Power: Main Channels 5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
• THD+N @ Rated Power: Subwoofer Channel 5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
• Frequency response (+0, -1dB):
• Monoblock (600 W/1000 W): 12 Hz-500 Hz
• 2/4/6-Channel: 12 Hz-24 kHz
• 8-Channel: 12 Hz-21 kHz
• Frequency response (+0, -1dB): Main Channels 5-Channel (700 W/1000 W): 12 Hz-24 kHz
• Frequency response (+0, -1dB): Subwoofer Channel 5-Channel (700 W/1000 W): 12 Hz-1 kHz
• Input voltage range @ RCA inputs:
• Monoblock (600 W/1000 W): 250 mV-8 V RMS
• 2/4/6/8-Channel: 250 mV-16 V RMS
• Fuse rating:
• Monoblock (600 W): 50 A
• Monoblock (1000 W): 80 A
• 2-Channel: 50 A
• 4-Channel: 40 A
• 5-Channel (700 W): 60 A
• 5-Channel (1000 W): 80 A
• 6-Channel: 50 A
• 8-Channel: 80 A
• Recommended fuse type(s): AFS, AGU or MaxiFuse™
• Min. copper power/Ground wire gauge: 4 AWG wire

What's in the Box:

• MVi amplifier
• Power connector
• Speaker output harnesses
• 6-foot USB A/B cable
• RCA Terminal covers (installed)
• Four stainless steel mounting screws
• 2.5 mm Allen wrench
• 3 mm Allen wrench
