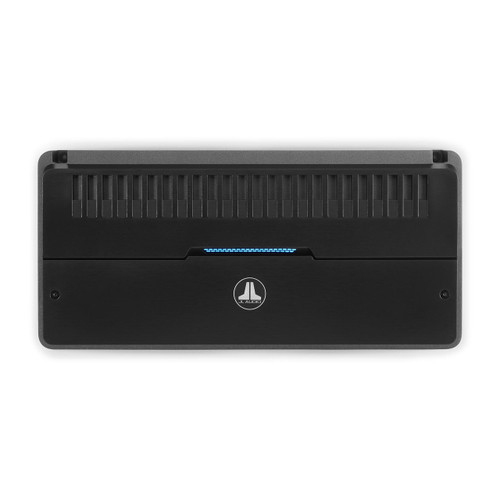

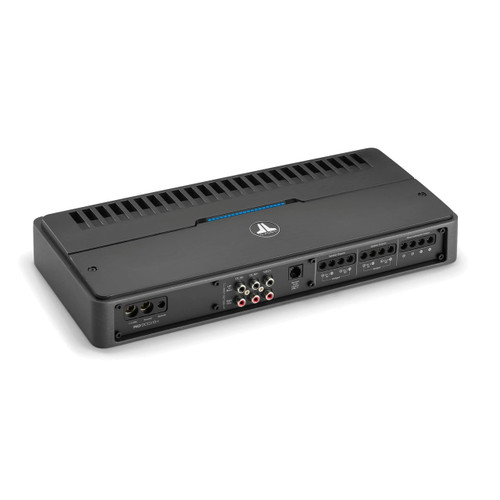

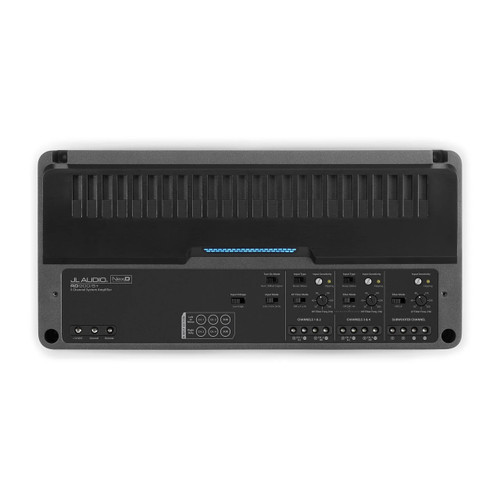

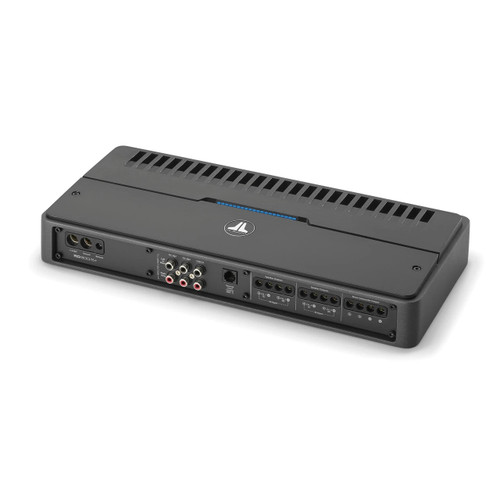

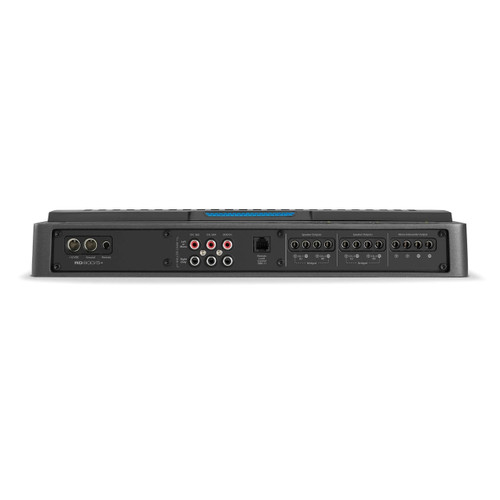

JL Audio RD900/5PLUS 5-Channel Car Amplifier — 70W RMS x 4 + 225W RMS x 1

JL Audio

JL Audio RD900/5PLUS 5-Channel Car Amplifier — 70W RMS x 4 + 225W RMS x 1

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$1,249.99

SKU: RD900/5+

UPC: 699440983655

Condition: New

Availability: Special Order - Usually Ships in 3-5 Days

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

About: JL Audio RD900/5 5-Channel Car Amplifier — 70W RMS x 4 + 500W RMS x 1

Sleek, Powerful, Packed with Value

The look is amazing, and the performance backs it up. Designed as a total “one-box solution,” this RD series amplifier from JL Audio can comfortably drive a complete 4-satellite speaker system plus a subwoofer — all with a robust 900 watts of power.

12-decibel/octave high-pass or band-pass filter with dedicated low-pass filter on subwoofer channel
Selectable input voltage: low (200 mV to 2-Volt RMS) to high (800 mV to 8-Volt RMS)
3 turn-on options: +12-volt remote wire, signal sensing or dc offset
Onboard led clipping indicator simplifies level setting
Signal routing flexibility with selectable input mode and type

Efficient Class-D Design

Small size, minimal heat and lots of power — Class-D amplifier design offers significant advantages. And our NexD™ switching technology adds even more, using enhanced pulse width modulation techniques to boost the amplifier’s bandwidth while minimizing distortion and improving efficiency.

Clean, Powerful, Reliable

Churning out 900 watts of total power — 100 watts from each of its 4 channels into a 2-ohm load (14.4 volts, 1% THD) plus a robust 500 watts for a subwoofer — this RD series amp brings stunning output to your audio system. Each pair of main channels is also fully bridgeable, enabling an ultrapowerful 3-channel amplifier setup.

Studio-Grade Signal Processing

Each of the amplifier’s main channels is equipped with a 12-decibel/octave high-pass filter, with a dedicated low-pass filter for its subwoofer channel. All 3 crossovers offer continuously variable frequency selection from 50–500 Hz for precise filtering.

LED Clipping Indicators

An LED clipping indicator light on the control panel lets you quickly set your amplifier’s input sensitivity, without the need for additional test equipment.

Easy Connectivity

With “input type” switches on the stereo channel sections, RD series amps can eliminate the need for Y-adapters when bridging stereo output channels.

Differential-Balanced Inputs

Combating induced cable noise, this technology allows for the use of conventional RCA cables while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.

NEXD Switching Technology

Using enhanced pulse width modulation techniques, NexD technology achieves exceptional audio fidelity and efficiency while delivering high-power output from very compact amplifier designs.

Specifications:

Channels: 5
Physical dimensions (Height): 2.13" (54 mm)
Physical dimensions (Width): 14.66" (372 mm)
Physical dimensions (Depth): 6.96" (177 mm)
Weight: 7.15 lbs (3.6 kg)
Operating voltage: 10-15 VDC
Operating temperature range: –4º to 149º F (–20º to 65º C)

Audio:

Amplifier class: Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD):

Main: 70 W x 4
Sub: 225 W x 1

Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD):

Main: 100 W x 4
Sub: 500 W x 1

Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)

Main: 60 W x 4
Sub: 200 W x 1

Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)

Main: 90 W x 4
Sub: 350 W x 1

Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels: >104 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channe:l >103 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels: >84 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel: >83 dB
Damping factor: @ 4 Ω >150/50 Hz
Damping factor: @ 2 Ω >75/50 Hz
THD+N @ Rated Power: Main Channels: <1% @ 4 Ω
THD+N @ Rated Power: Subwoofer Channel: <1% @ 4 Ω
Frequency response (+0, -1dB): Main Channels: 12 Hz-22 kHz
Frequency response (+0, -1dB): Subwoofer Channel: 10 Hz-500 Hz
Input voltage range @ RCA inputs: Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Input impedance

10 kΩ (Low)
2.7 kΩ (High)

Current consumption (Idle): 1,900 mA-2,000 mA
Current consumption (Max): 70-80A
Fuse rating: 80 A
Recommended fuse type(s): AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge: 4 AWG wire
Protection circuits: Over temperature, Ground short, Speaker overcurrent

Signal Processing:

Filter mode(s): Channels 1 & 2: High-pass only (Off, x1, x10)
Filter Slope(s): Channels 1 & 2: 12 dB/octave
Filter frequency range: Channels 1 & 2: 50 Hz-500 Hz (x10: 500 Hz-5 kHz)
Filter mode(s): Channels 3 & 4: Off, High-pass or Bandpass
Filter Slope(s): Channels 3 & 4: 12 dB/octave
Filter frequency range: Channels 3 & 4: 50 Hz-500 Hz
Filter mode(s): Subwoofer Channel: Off/Low-pass
Filter slope(s): Subwoofer Channel: 12 dB/octave
Filter frequency range: Subwoofer Channel: 50 Hz-500 Hz
Detented, calibrated filter frequent potentiometers: Yes
Remote level control: Optional (RBC-1)
Remote level modes: Sub Channel only
Channel input mode switch: yes (2/4/6 Channels)
Pass-through preamp output: Buffered

What's in the Box:

RD 5-channel system amplifier
Hex wrench
JL Audio badge
