Descriptions

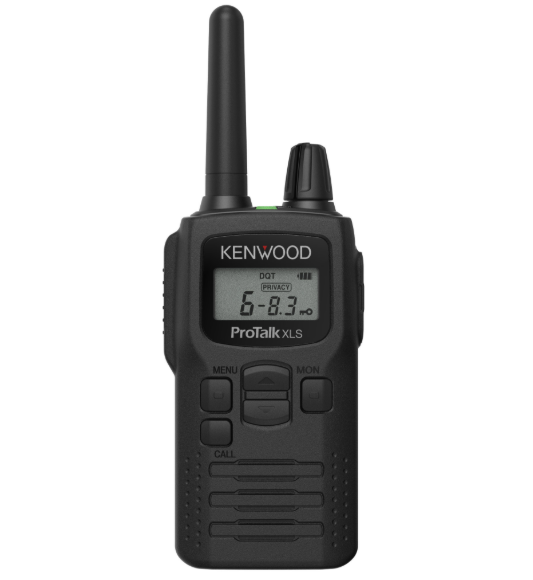

About: Kenwood PKT-300LFP UHF FM Compact Portable Radio

Enhanced Features in a Compact Radio

Introducing the PKT-300 portable radio, which comes with enhanced features that are perfect for those who need a lightweight, small, and powerful device. This radio is designed to be easy to use and can enhance work quality, efficiency, and worker well-being. It has a rugged, compact design, making it an ideal choice for fast-paced, customer service-focused retail, hospitality, warehousing, and entertainment venues. The integrated swivel belt clip makes it easy for employees to wear the radio and take advantage of one-touch, instant-on communications. With a robust 2 watts of transmit power, the PKT-300 provides loud and clear KENWOOD quality audio, even in high noise environments. The bright LCD display is easy to read in low light situations. Capable of 16 channels in both ISED Licensed and License Free models.

Compact, lightweight design & operating ease

Compact enough to carry anywhere with ease, the PKT-300 has a distinctively ergonomic form that’s easy to hold and operate. It weighs 4.94 oz (140 g) with the rechargeable Li-ion battery and control buttons, which are simple to use with PTT, MON, MENU, CALL, UP and DOWN operations.

2 Watts of transmit power

Designed to be easy-to-use, the portable has a full 2 Watts of power for clear voice quality in noisy environments, yet it’s extremely lightweight (4.94 oz).

Programmable channels

PKT-300LFP can have 16 license free channels selected from any of the 22 pre-stored frequencies.

4-digit 7-segment LCD with backlighting

The large 4-digit 7-segment display makes it easy to check on both channel and signaling information. There is also a 3-level icon in the LCD to indicate how much battery power is left.

Powerful battery

The 2200 mAh lithium-ion battery lasts through multiple shifts without recharging. Ready to use, right out of the box.

Versatility

Customize your radio beyond the basic menu with programming software that allows full configuration of buttons and options. This enhances usability, compatibility, and reduces operator errors by restricting access.

Specification – PKT-300LFP

• Frequency Range 462.550 - 467.7125 MHz
• Preset 15 of GMRS channels
• (Selectable from 22 GMRS/FRS channels)
• Number of Channels 16
• Channel Spacing 12.5 kHz
• Battery Life (5-5-90 duty cycle)
• with KNB-81L (3.6V/2200mAh) Approx. 14 hours (Battery saver off)
• Approx. 18 hours (Battery saver on)
• Operating Temperature Range* -10°C ~ +60°C (-14°F ~ +140°F)
• Frequency Stability ±2.5ppm
• Dimensions (with KNB-81L battery) (W x H x D) Projections Not Included
• 1.97 x 3.86 x 1.06 in (50 x 98 x 27 mm)
• Weight (with KNB-81L battery) 4.94 oz (140 g)
• ISED ID 282F-523501

Receiver – PKT-300LFP

• Sensitivity (12 dB SINAD) 0.28 μV
• Selectivity 60 dB
• Intermodulation Distortion 60 dB
• Spurious Response 70 dB
• Audio Output Power 100 mW

Transmitter – PKT-300LFP

• RF Power Output (High / Low) 2.0 / 0.5 W (ERP)
• Spurious Response -36 dBm ≤ 1 GHz, -30 dBm > 1 GHz
• FM Hum & Noise 50 dB
• Audio Distortion Less than 5%
• Type of Emission 11K0F3

Note: *Operating temperature specification for a Li-ion battery is 14°F to +140°F (-10°C to +60°C)

What's in the Box:

• PKT-300FLP radio
• Battery
• Charger
• AC adapter
• Swivel belt clip holster
