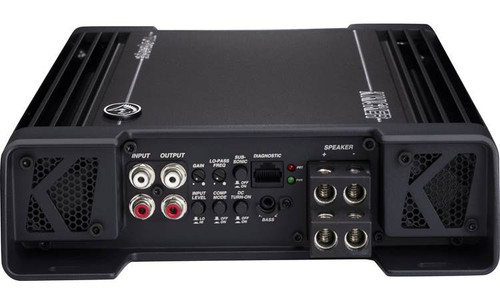

The Warhorse WXA3600.1 was engineered completely in-house by KICKER Research and Development for ultra-high SPL applications.

Product Highlights:

• mono marine subwoofer amplifier
• 1400 watts RMS x 1 at 4 ohms
• 2500 watts RMS x 1 at 2 ohms
• 3600 watts RMS x 1 at 1 ohm
• variable low-pass filter (50-200 Hz, 24 dB/octave)
• selectable subsonic high-pass filter (25 Hz, 24 dB/octave)
• two microprocessor-controlled cooling fans
• Competition mode eliminates adjustment changes due to vibrations
• sets gain for 4-volts AC (about 4 watts) input
• sets low-pass crossover to 200 Hz, 24 dB/octave
• handles high-voltage power (up to 17-volts DC) and switches cooling fans to high speed
• wired remote level control knob with magnetic mount included
• cable locks prevent connections from vibrating loose
• wired remote diagnostic display with magnetic mount included
• shows present voltage, high/low voltage recent history, over-current protection, high/low temperature indicator
• speaker outputs can handle 4-gauge wires
• preamp and speaker-level inputs
• speaker-level inputs require speaker wire to RCA adapters
• speaker-level inputs can handle up to 40-volts AC (about 400 watts)
• preamp outputs
• required high-power wiring, fuses, and hardware not included with amplifier:
• dual 1/0-gauge power and ground leads and two 200-amp fuses
• Big 3 battery wiring upgrade
• high-output alternator (180-amp or more at idle)
• second battery (80+ Ah and 800+ CCA)
• dimensions: 15.4"W x 2.6"H x 9.125"D
