Descriptions

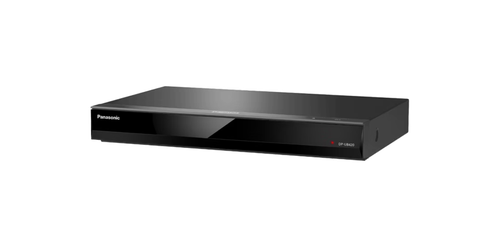

About: Panasonic DP-UB420 4K Ultra HD Blu-Ray Player with Wi-Fi

The Ultra HD Blu-ray Player UB420 faithfully reproduces the director's intended images. Unique processing technology maximizes the beauty of 4K content. Network functions also enable enjoyment of various types of 4K content.

Features:

• Ultra HD Blu-ray Playback (4K/HDR)
• TWIN HDMI PURE AV (Twin Isolated Output）
• 4K VOD Supported

Playable Discs:

• BD-ROM: Ultra HD Blu-ray/ FULL HD 3D/ BD-Video
• BD-RE/ BD-RE DL (Ver.3): BDAV/ AVCHD/ AVCHD 3D/JPEG/ MPO
• BD-R (Ver.1.3) / BD-R DL (Ver.2): BDAV/ AVCHD/ AVCHD 3D/ MKV/ JPEG/ MPO
• DVD: DVD-Video
• DVD-R*1/ DVD-R DL*1/ DVD-RW*1
• DVD-Video/ DVD Video Recording
• AVCHD/ MKV: yes/ Yes* (*DVD-R/ DVD-R DL)
•  FLAC/ WAV/ ALAC/ DSD/ WMA/ AAC/ MP3/ AIFF: Yes (DVD-R/ DVD-R DL)
•  JPEG/ MPO: Yes (DVD-R/ DVD-R DL)
• +R*1/ +R DL*1/ +RW*1: Video/ AVCHD
• CD, CD-R/ -RW:
• CD-DA/ DTS-CD
• MKV: Yes (CD-R/ -RW)
• FLAC/ WAV/ ALAC/ WMA/ AAC/ MP3/ AIFF: Yes (CD-R/ -RW)
• JPEG/ MPO: Yes (CD-R/ -RW)

Audio System:

• Dolby Digital/ TrueHD: Yes (Decode and Bitstream Output*2)
• Dolby Digital Plus: Yes (Decode and Bitstream Output*2)
• DTS-HD Master Audio/ DTS-HD High Resolution Audio: Yes (Decode and Bitstream Output*2)
• Dolby Atoms/ DTS:X: Yes (Bitstream Output*2)
• FLAC: Yes (Max. 192 kHz/ 24 bit)
• WAV: Yes (Max. 384 kHz/ 32 bit)
• ALAC: Yes (Max. 96 kHz/ 32 bit (7.1ch), 176.4/192 kHz/ 32 bit (5.1ch))
• DSD (DFF, DSF): Yes (2.8 MHz (2ch/ 5.1ch), 5.6 MHz (2ch/ 5.1ch), 11.2 MHz (2ch))
• AIFF: Yes (Max. 384 kHz/ 32 bit (2ch))

USB:

• Front: 1 (USB 2.0 High Speed)
• Rear: 1 (USB 3.0 Super Speed)
• Playback:
• FLAC/ WAV/ ALAC/ AIFF/ DSD (DFF, DSF)/ WMA/ AAC/ MP3: Yes (Gapless Playback : FLAC/WAV/AIFF/DSD(DFF,DSF))
• MKV/ MP4 (H.264/HEVC), TS (MPEG-2/H.264/HEVC): Yes
• MPEG-2/ AVCHD/ AVCHD 3D: Yes
• JPEG/ MPO: Yes

High Quality Picture:

• HCX Processor for Ultra HD Blu-ray: Yes
• HDR Optimizer: Yes
• 4K Direct Chroma Up-scaling: Yes*4
• 4K Networking (4K Video*6 Playback/ 4K JPEG Playback*4): Yes
• 4K VOD: Yes*7
• Picture Type Presets: (Normal/ Cinema/ Fine Cinema/ Retro Cinema/ Animation/ Live)*8
• Block/ Randam/ Mosquito Noise Reduction: Yes
• Video on Demand in HD Quality: Yes
• Ultra HD Premium: Yes
• Deep Colour: Yes
• x.v.Colour: Yes*9
• HDR:
• HDR10+: Yes*3
• Hybrid Log Gamma(HLG): Yes
• 4K Up-scaling:
• 60p/50p/ 4:4:4 (HDMI2.0): Yes*4*5
• 24p/ 25p: Yes*4*5

High Quality Sound:

• TWIN HDMI: Yes
• Pure Audio on HDMI (HDMI Low Clock Jitter Process): Yes
• High Quality Network Audio Playback (DLNA): Yes*10 (FLAC/ WAV/ ALAC/ AIFF/ DSD/ WMA/ AAC/ MP3)
• High Clarity Sound Premium: Yes
• Digital Tube Sound: Yes (Up to 192 kHz/ 24 bit)
• Surround Re-Master: Yes*11 (Up to 192 kHz/ 24 bit)

Smart Feature:

• Remote Control: Yes (Simple)
• Subtitle Position/Brightness Adjustment: Yes
• HDAVI Control 5 (VIERA Link): Yes
• Mirroring with Smartphone/Tablet: Yes*12
• Internet Apps: Yes*13
• Web Browser: Yes
• Wireless LAN System: Yes (Built-in) IEEE802.11 a/b/g/n/ac
• Network Contents Playback (Client & Renderer): Yes*10
• External HDD Playback: Yes*14
• Network Drive Access: Yes
• BD-Live™: Yes*15

Other:

• HDMI Output: Yes (2)
• Optical Output: Yes
• LAN (Ethernet) Terminal: Yes (for Ultra HD Blu-ray, Network Contents Playback*10, BD-Live™*15, Internet Apps*13 and Firmware Update)
• Video System: PAL/ NTSC
• Power Supply: AC 220-240 V, 50 Hz
• Power Consumption:
• Normal Use: 29 W
• Standby (Quick Start Off): Network Standby Off: 0.3 W
• Dimensions (W x H x D): 320 x 45 x 197 mm*17
• Weight: 1.4 kg

Note:

• *1 Discs recorded and finalized on recording devices.
• *2 HDMI connections and compatible equipment (e.g. AV Receiver) required.
• *3 Enabled by software update
• *4 For 4K Up-scaling playback a TV with same resolution is required.
• *5 For 4K/60p video, a high speed HDMI cable supporting 18 Gbps bandwidth is required.
• *6 MP4/ MKV/ TS (H.264/ HEVC) Up to 3840x2160 25p/ 30p, 4096x2160 24p
• *7 Some network content services may not be available in your country.
• *8 Ultra HD Blu-ray and Photo (JPG/ MPO) are not supported.
• *9 This function is effective only when reproducing AVCHD data recorded with x.v.Color technology. The function cannot be used with BD-ROM or DVD-ROM discs. HDMI connection is required.
• *10 File formats that are not supported by your Network Contents server (DLNA compatible server, etc.) cannot be played.
• *11 CD sampling is done at 176.4/88.2 kHz.
• *12 A device that supports the Mirroring function and AndroidTM ver. 4.2 or higher is required.
• *13 Requires broadband Internet service.
• *14 The external HDD with capacities of 4TB or less in processing NTFS/ FAT32 data is supported. Playback is not possible with some external hard disk drives.
• *15 To enjoy content, you will need to insert a USB (1GB or more of free space/ sold separately). Requires broadband Internet service.
• *16 The analog 2-channel output terminal can also be used as an analog 7.1-channel output terminal.
• *17 Excluding the projecting parts.
